ABB EBM3603Y

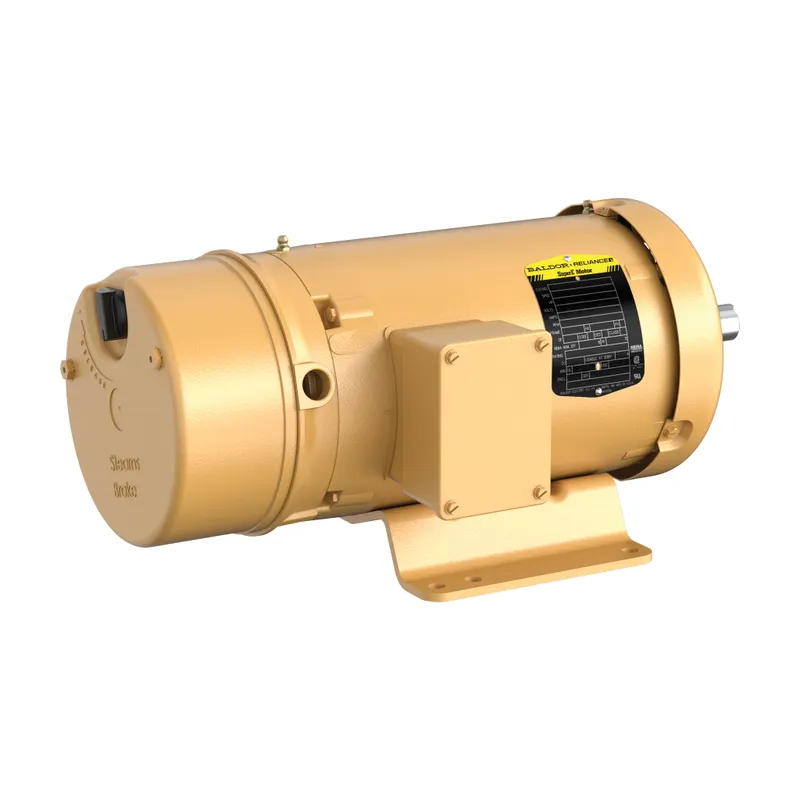

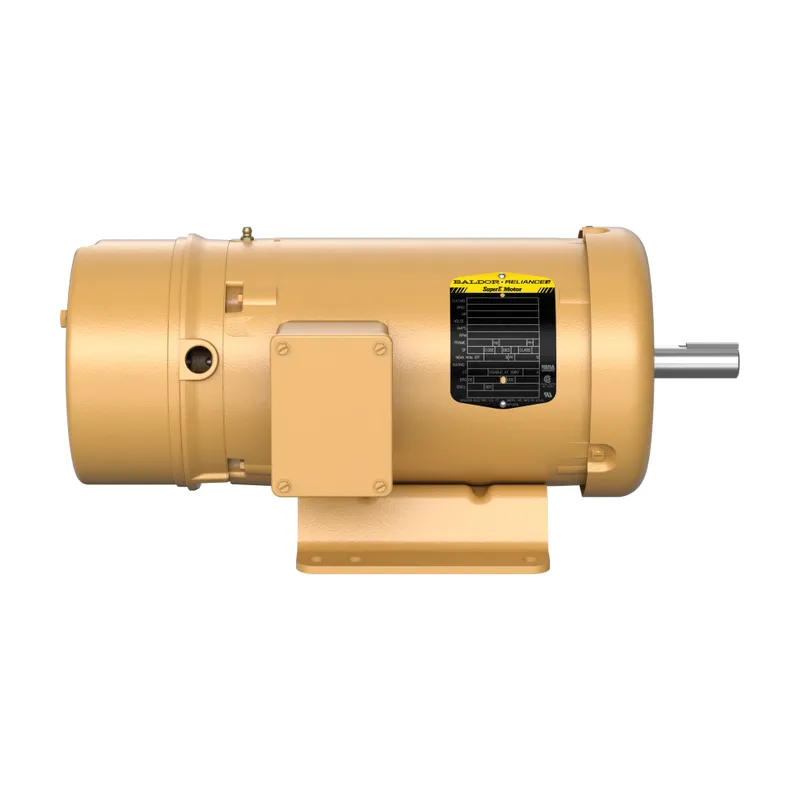

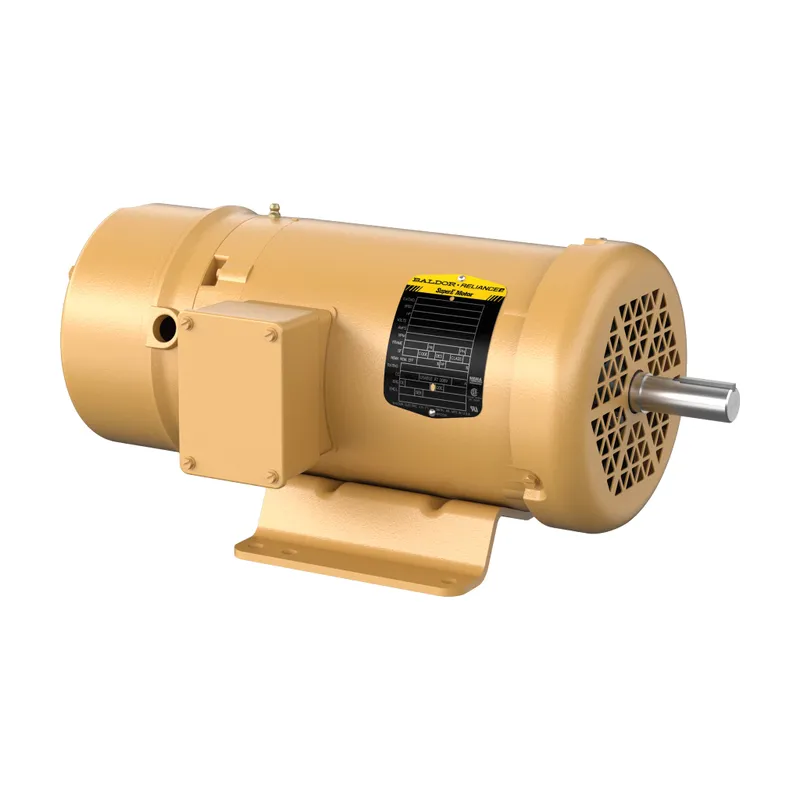

1HP,1770RPM,3PH,60HZ,182,3520M,TEFC

MPN: EBM3603Y

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EBM3603Y?

Brake 1 Hp 230 V (EBM3603Y)

Specifications

Ordering

Catalog Number	EBM3603Y
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	69 %
Rated Efficiency	85.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	182
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	12.813 in
Product Net Weight	44 lb
Product Net Width	12.25 in
Dimension Diagram	35LYM527

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
