Home / ABB / Unit Handling / ABB EBM3154T

ABB

ABB EBM3154T

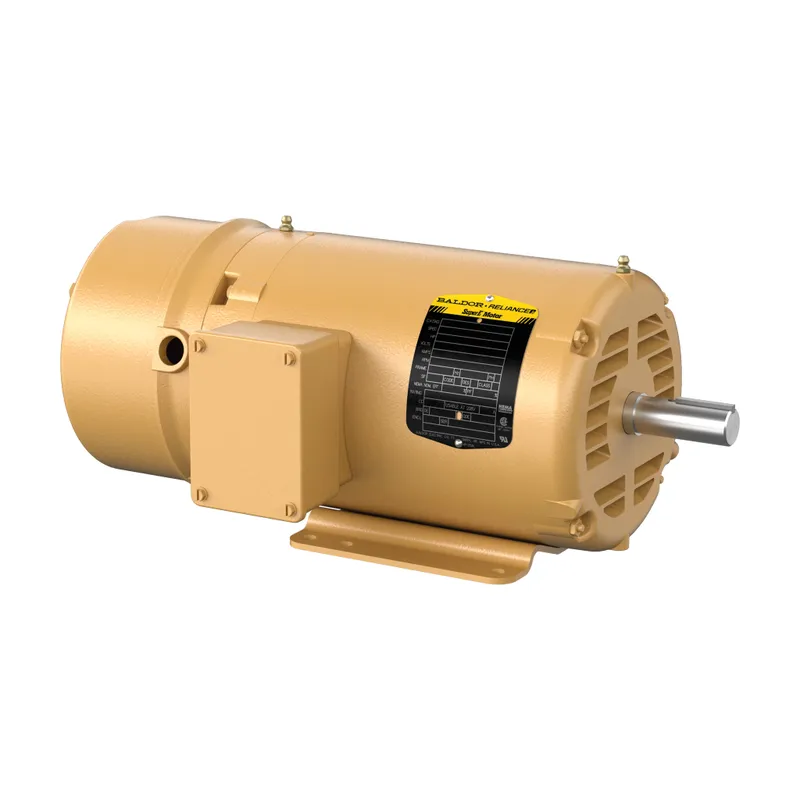

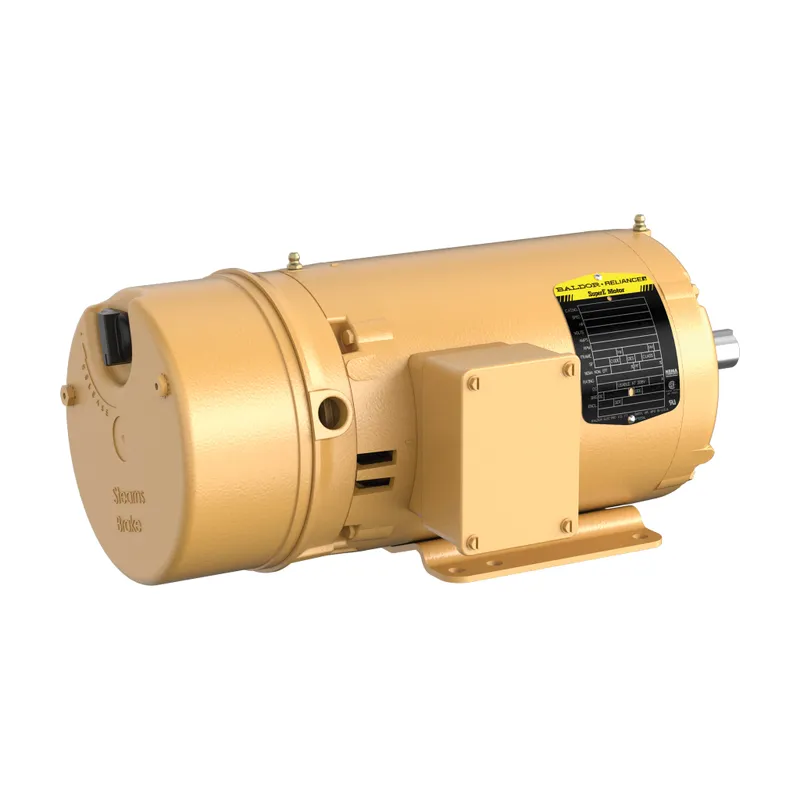

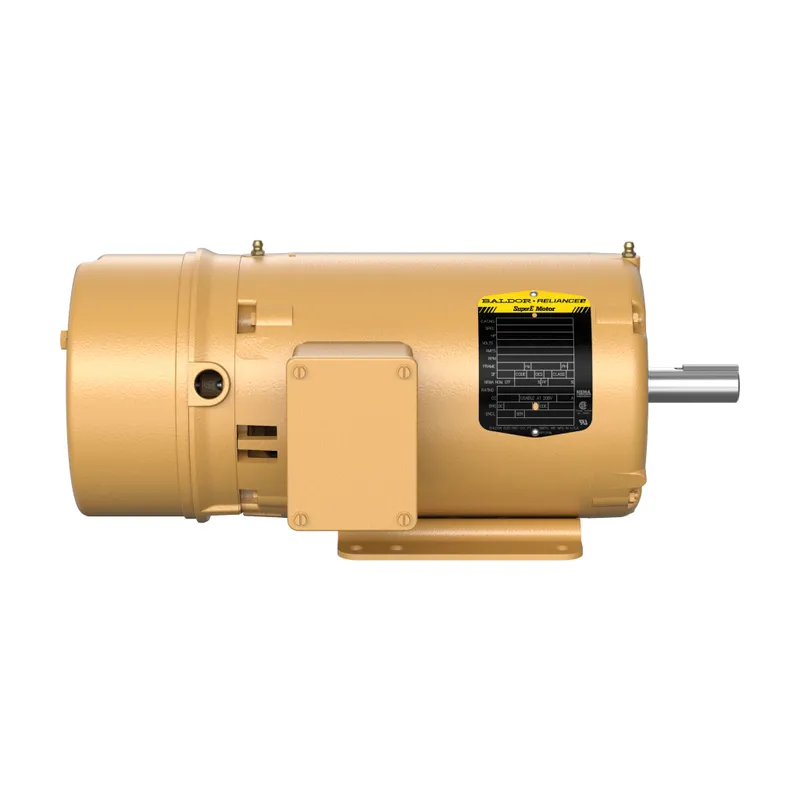

1.5HP,1770RPM,3PH,60HZ,145T,3524M,O

MPN: EBM3154T
Category: Unit Handling

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB EBM3154T?

Pump Motor 1.5 Hp 230 V (EBM3154T)

Specifications

Ordering

Catalog Number	EBM3154T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	72 %
Rated Efficiency	86.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	145T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	13.123 in
Product Net Weight	48 lb
Product Net Width	13.75 in
Dimension Diagram	35LYBB021

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
