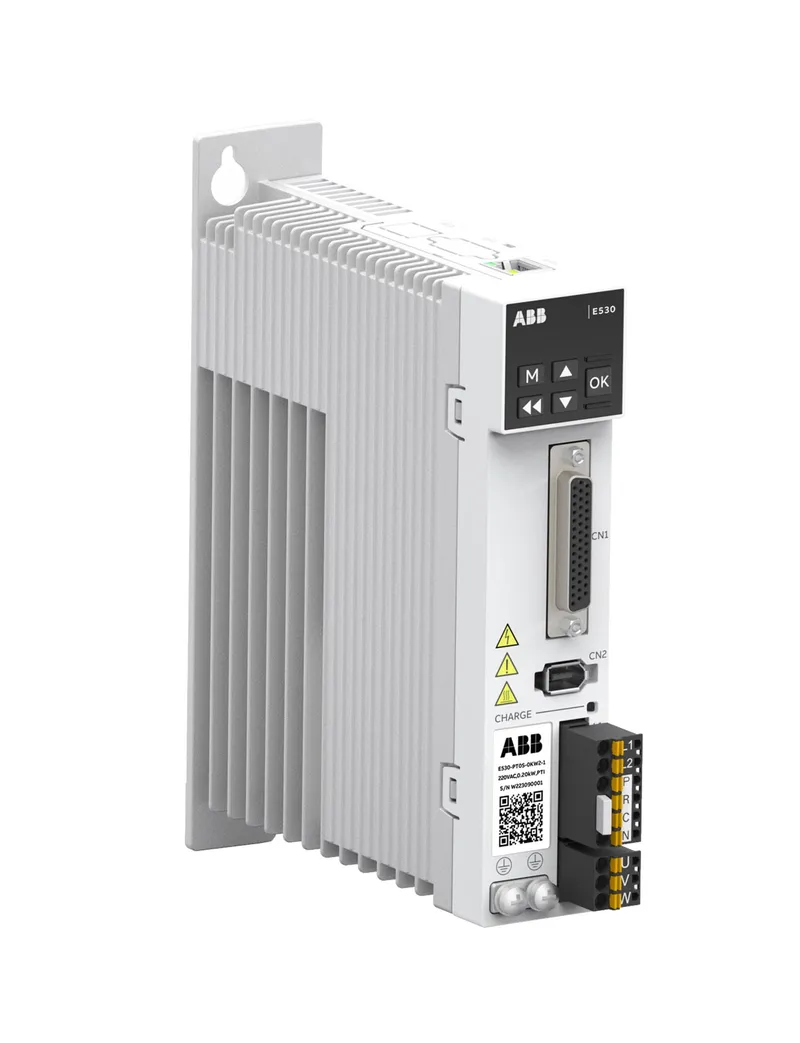

ABB E530-PT0S-0KW2-1

LV AC servo drive, IEC: Pn 0.2 kW ( )

MPN: E530-PT0S-0KW2-1
Category: E530

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB E530-PT0S-0KW2-1?

The E530 servo drive is a general-purpose servo drive. The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant. The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol, while the E530-EC servo drive supports the EtherCAT ptotocol. The flexible communication protocol ensures the connectivity between the drive and controller.

Specifications

Ordering

Customs Tariff Number	9032899099
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	E530 servo drive, PTI version, PN: 0.2 kW, IN: 2.5 A kW
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.75 kg kg
Product Net Depth / Length	150 mm mm
Product Net Height	175 mm mm
Product Net Width	40 mm mm
Package Level 1 Depth / Length	265 mm mm
Package Level 1 Height	72 mm mm
Package Level 1 Width	222 mm mm
Package Level 1 Units	1 carton

Technical

Number of Phases	1-phase
Degree of Protection	IP20
Frequency (f)	47 ... 63 Hz Hz
Frame Size	F2
Input Voltage (Uin)	200 ... 240 V V
Mounting Type	Module
Output Current, Normal Use (In)	1.5 A A
Output Power, Normal Use (Pn)	0.2 kW kW

External Classifications and Standards

UNSPSC

39122003
