Home / ABB / XP Drill Rig Duty / ABB DRX36644T
ABB

ABB DRX36644T

60//50HP,1785//1485RPM,3PH,60//50HZ

MPN
DRX36644T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB DRX36644T?

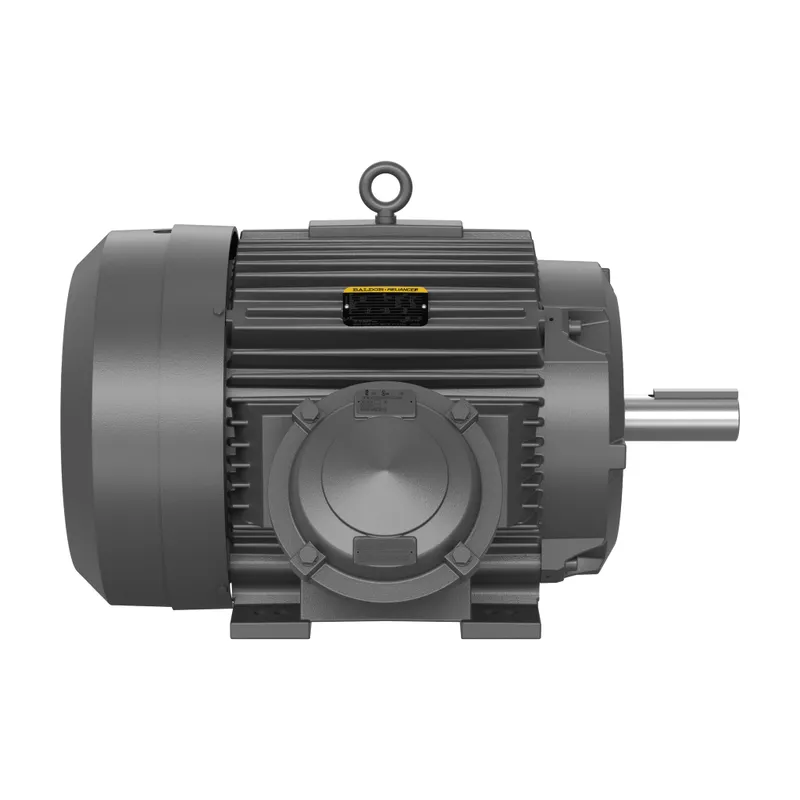

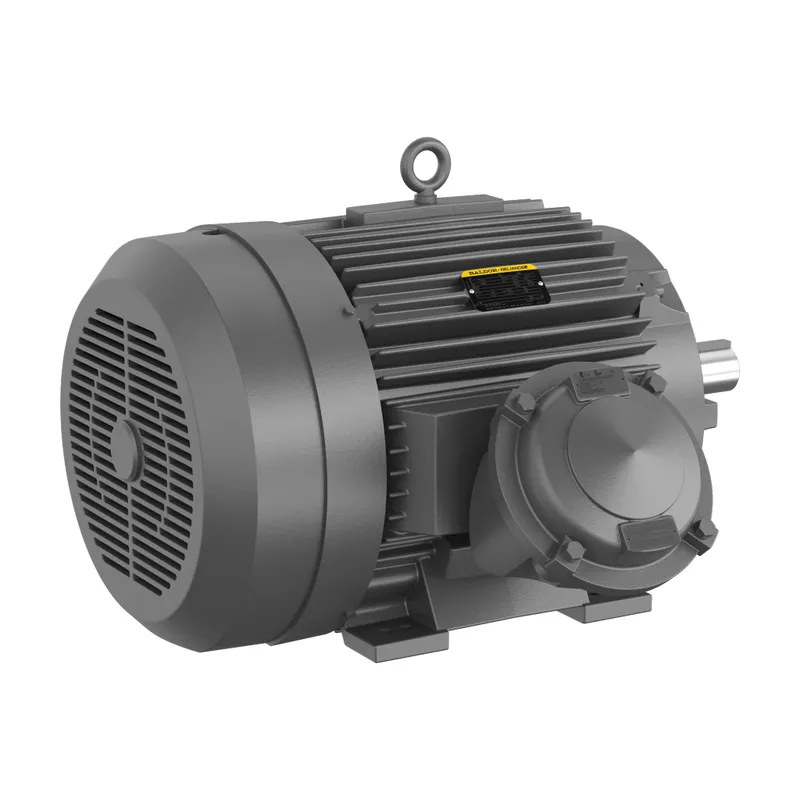

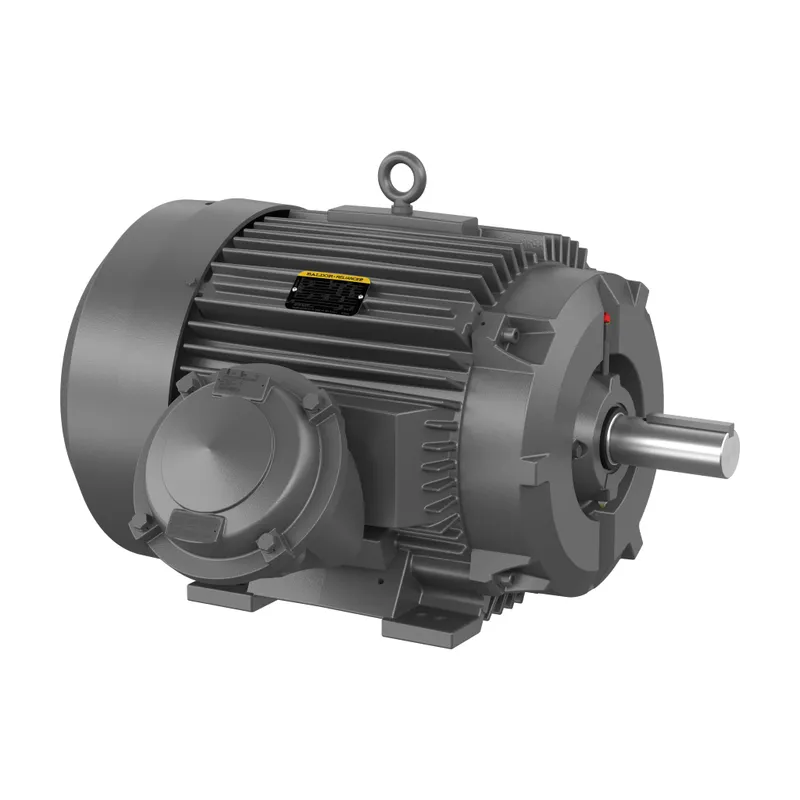

Explosion Proof Drill Rig Duty 50 Hp 190 V (DRX36644T)

Specifications

Ordering

Catalog NumberDRX36644T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor87 %
Rated Efficiency95 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1500 r/min, 1800 r/min
Output Power50 Hp, 60 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialIron
Motor Frame Size364T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height29.5 in
Product Net Weight1033.001 lb
Product Net Width34.5 in
Dimension Diagram611742-772

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, UL
ETIM 7EC001851 - Electric motor
