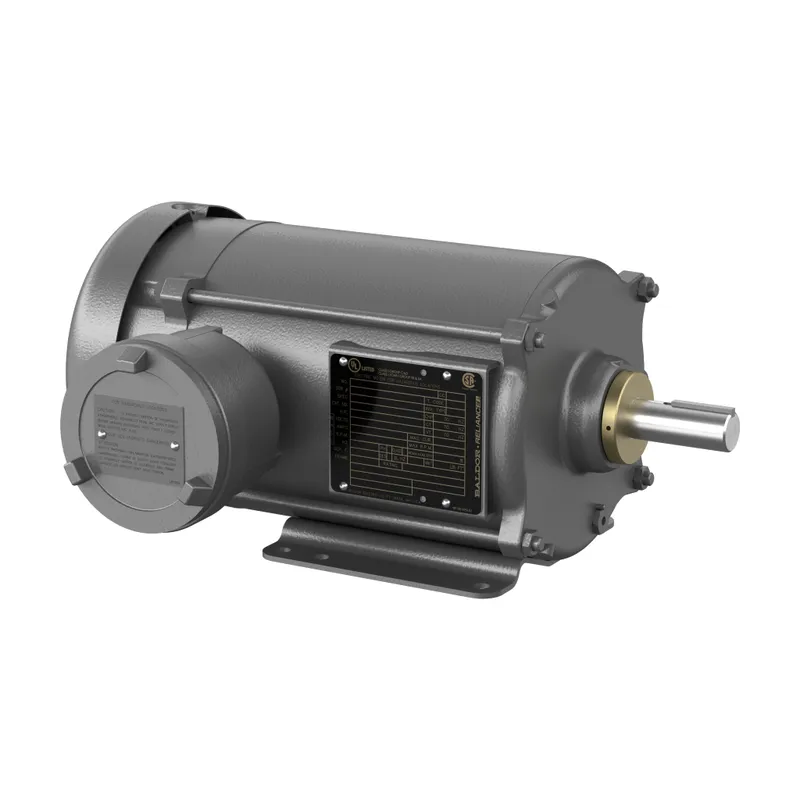

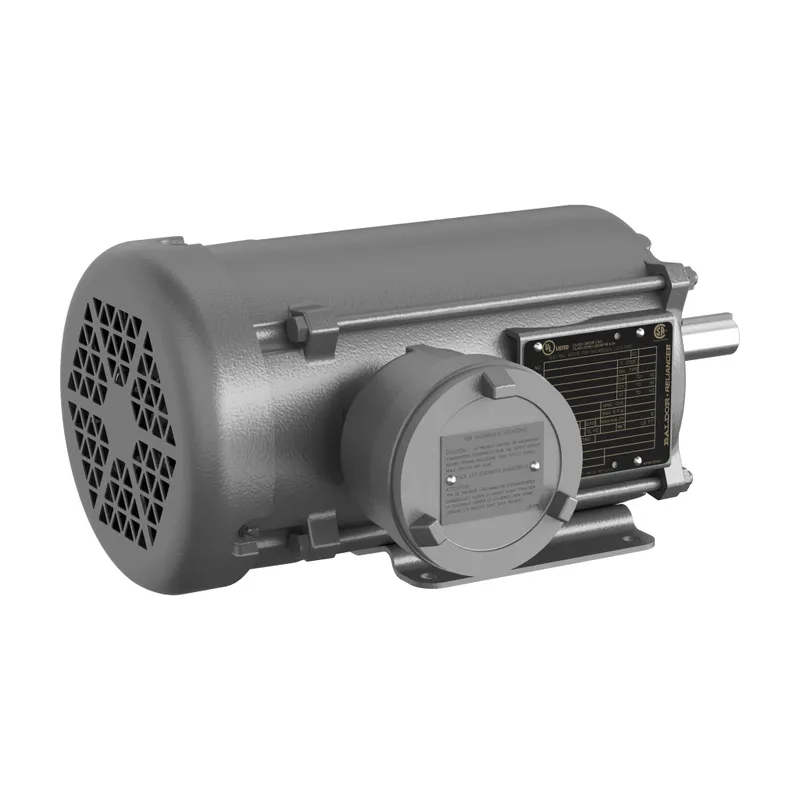

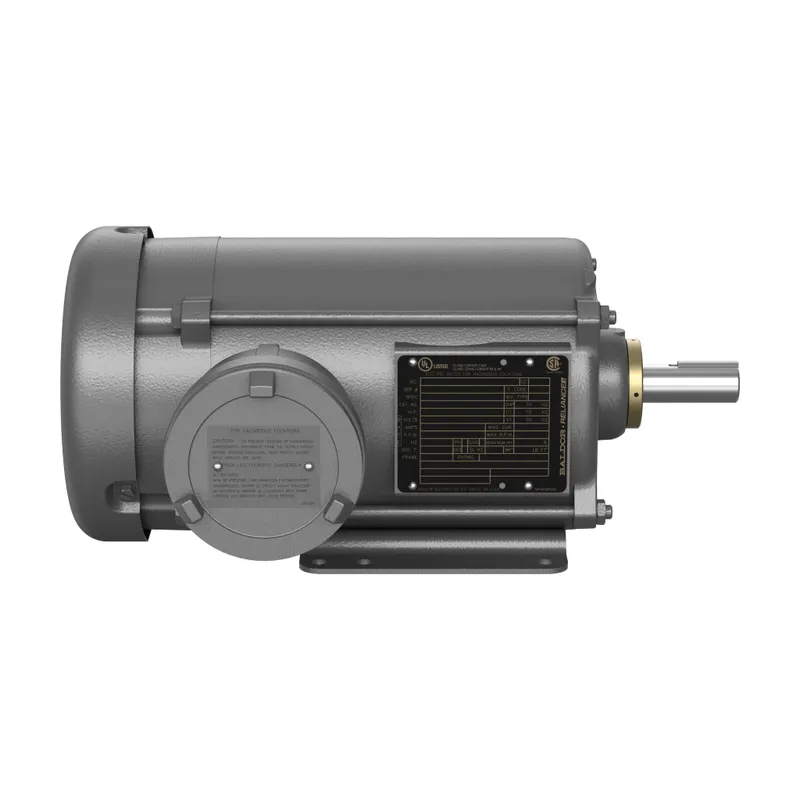

ABB DRX14124T-5

1HP,3450RPM,3PH,60HZ,143T,XPFC,F1

MPN: DRX14124T-5
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB DRX14124T-5?

Explosion Proof Drill Rig Duty 1 Hp 575 V (DRX14124T-5)

Specifications

Ordering

Catalog Number	DRX14124T-5
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	82 %
Rated Efficiency	84 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Steel
Motor Frame Size	143T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	38 lb
Product Net Width	13.75 in
Dimension Diagram	35LYX081

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
ETIM 7	EC001851 - Electric motor
