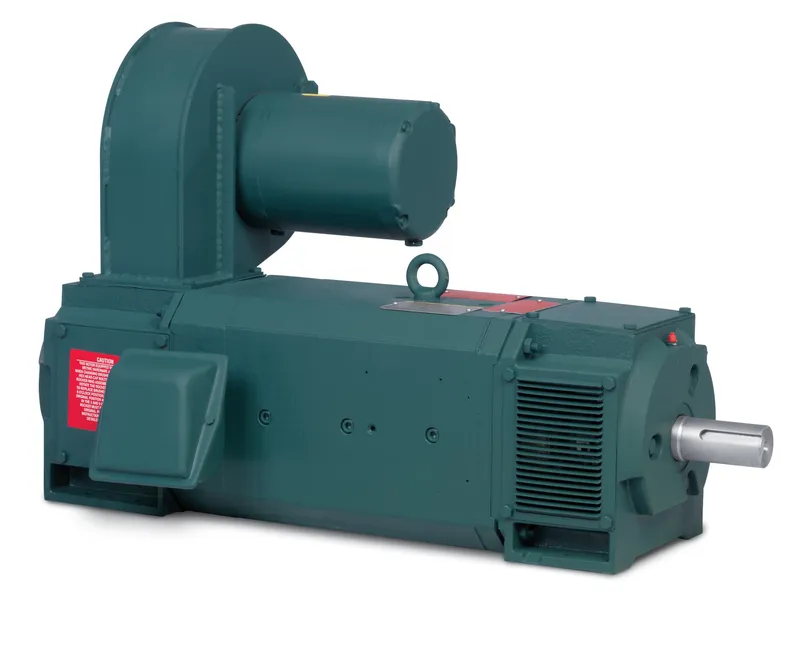

ABB D5507R

7.50HP,1750RPM,DC,2113ATY,TEFC

MPN: D5507R

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB D5507R?

7.50HP,1750RPM,DC,2113ATY,TEFC,

Specifications

Additional Information

ABB Type Designation	7.50HP,1750RPM,DC,2113ATY,TEFC,
Ambient Temperature	40 °C
Armature Current	13.5 A A
Armature Voltage	500 V V
Base Speed	1750 r/min
Bearing	50BC03J30X
Bearing NDE	45BC02J30X
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	D5507R
Certification Agency	CCSA US
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Dimension Diagram	609951-013
Drive End Flange Type	Standard
Enclosure Type	TEFC
ETIM 7	EC001851 - Electric motor
Field Current	1.01 A, 0.67 A A
Field Voltage	300 V V
Frame Material	Explosed Laminations
Frame Size	Undefined
Global Commercial Alias	D5507R
Gross Weight	402 lb
Horsepower Rating UL/CSA	7.500 Hp
Insulation Class	F
Invoice Description	7.50HP,1750RPM,DC,2113ATY,TEFC,
Made To Order	No
Maximum Speed	2300 r/min
Medium Description	TEFC Enclosure, (D5507R)
Minimum Order Quantity	1 piece
Motor Base Type	Rigid
Motor Frame Size	SC2113ATZ
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	7.50 Hp
Product Name	DC Integral HP RPMIII Wound Field
Product Net Depth / Length	0 in
Product Net Height	0 in
Product Net Weight	402 lb
Product Net Width	0 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.88 in
Short Description	TEFC,
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Type of Duty	Continuous
Voltage Code	500 Va, 300 Vf
