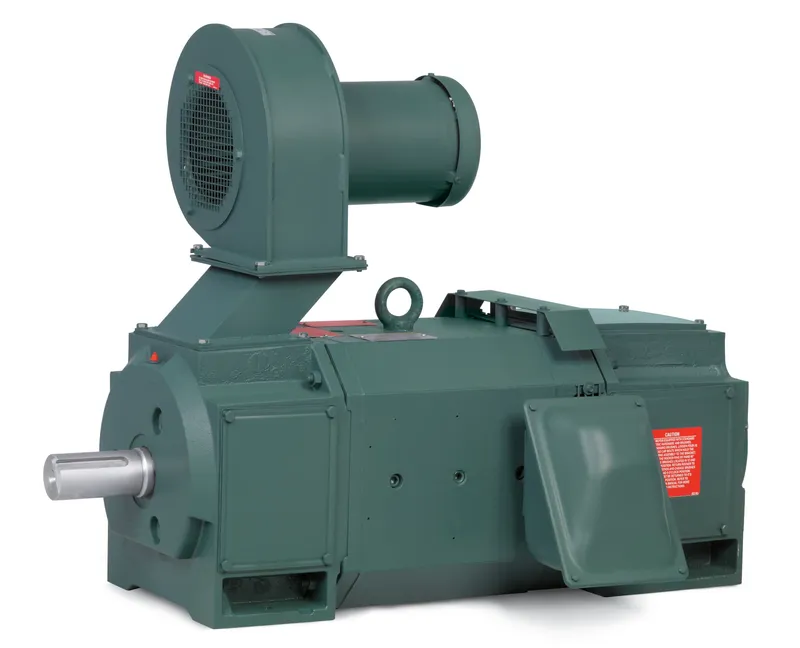

ABB D5025RS-BV
25HP,1750RPM,DC,2113ATZ,DPG-FV
- MPN
- D5025RS-BV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB D5025RS-BV?
25HP,1750RPM,DC,2113ATZ,DPG-FV,
Specifications
Additional Information
| ABB Type Designation | 25HP,1750RPM,DC,2113ATZ,DPG-FV, |
| Ambient Temperature | 40 °C |
| Armature Current | 43 A A |
| Armature Voltage | 500 V V |
| Base Speed | 1750 r/min |
| Bearing | 50BC03J30X |
| Bearing NDE | 45BC02J30X |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | D5025RS-BV |
| Certification Agency | CCSA US |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Dimension Diagram | 609952-096 |
| Drive End Flange Type | Standard |
| Enclosure Type | DP |
| ETIM 7 | EC001851 - Electric motor |
| Field Current | 2.28 A, 1.5 A A |
| Field Voltage | 300 V V |
| Frame Material | Steel |
| Frame Size | Undefined |
| Global Commercial Alias | D5025RS-BV |
| Gross Volume | 45167 in³ |
| Gross Weight | 474.001 lb |
| Horsepower Rating UL/CSA | 25.000 Hp |
| Insulation Class | F |
| Invoice Description | 25HP,1750RPM,DC,2113ATZ,DPG-FV, |
| Made To Order | No |
| Maximum Speed | 2300 r/min |
| Medium Description | DP Enclosure, (D5025RS-BV) |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Rigid |
| Motor Frame Size | LC2113ATZ |
| Mounting Orientation | Horizontal |
| Order Multiple | 1 piece |
| Output Power | 25 Hp |
| Product Name | DC Integral HP RPMIII Wound Field |
| Product Net Depth / Length | 47 in |
| Product Net Height | 31 in |
| Product Net Weight | 474.001 lb |
| Product Net Width | 31 in |
| Product Type | Undefined |
| Quote Only | No |
| Rated Speed | 1750 r/min |
| Replaced Product ID (OLD) | 7BT21T1345 |
| Selling Unit of Measure | piece |
| Service Factor | 1.00 |
| Service Factor Percentage | 1.00 % |
| Shaft Diameter | 1.88 in |
| Short Description | DP, |
| Standards | NEMA |
| Stocked At (Warehouses) | China, Fort Smith, Arkansas, United States, Alaska, United States |
| Type of Duty | Continuous |
| Voltage Code | 500 Va, 300 Vf |
