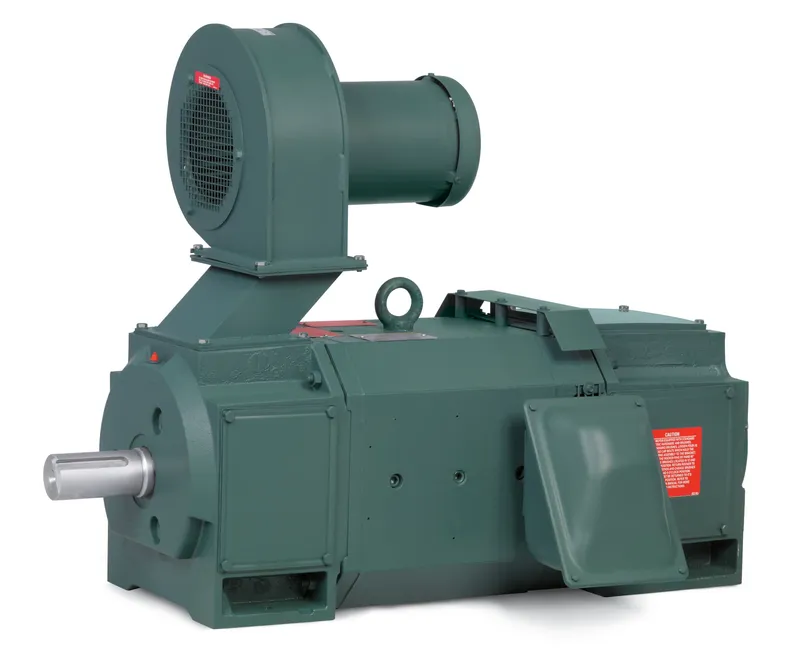

ABB D5020RS-BV

20HP,1750RPM,DC,2113ATZ,DPG-FV

MPN: D5020RS-BV

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB D5020RS-BV?

20HP,1750RPM,DC,2113ATZ,DPG-FV,

Specifications

Additional Information

ABB Type Designation	20HP,1750RPM,DC,2113ATZ,DPG-FV,
Ambient Temperature	40 °C
Armature Current	37 A A
Armature Voltage	500 V V
Base Speed	1750 r/min
Bearing	50BC03J30X
Bearing NDE	45BC02J30X
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	D5020RS-BV
Certification Agency	CCSA US
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Dimension Diagram	609952-096
Drive End Flange Type	Standard
Enclosure Type	DP
ETIM 7	EC001851 - Electric motor
Field Current	1.71 A, 1.14 A A
Field Voltage	300 V V
Frame Material	Steel
Frame Size	Undefined
Global Commercial Alias	D5020RS-BV
Gross Volume	28576 in³
Gross Weight	439 lb
Horsepower Rating UL/CSA	20.000 Hp
Insulation Class	F
Invoice Description	20HP,1750RPM,DC,2113ATZ,DPG-FV,
Made To Order	No
Maximum Speed	2300 r/min
Medium Description	DP Enclosure, (D5020RS-BV)
Minimum Order Quantity	1 piece
Motor Base Type	Rigid
Motor Frame Size	MC2113ATZ
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	20 Hp
Product Name	DC Integral HP RPMIII Wound Field
Product Net Depth / Length	47 in
Product Net Height	19 in
Product Net Weight	439 lb
Product Net Width	32 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.88 in
Short Description	DP,
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Type of Duty	Continuous
Voltage Code	500 Va, 300 Vf
