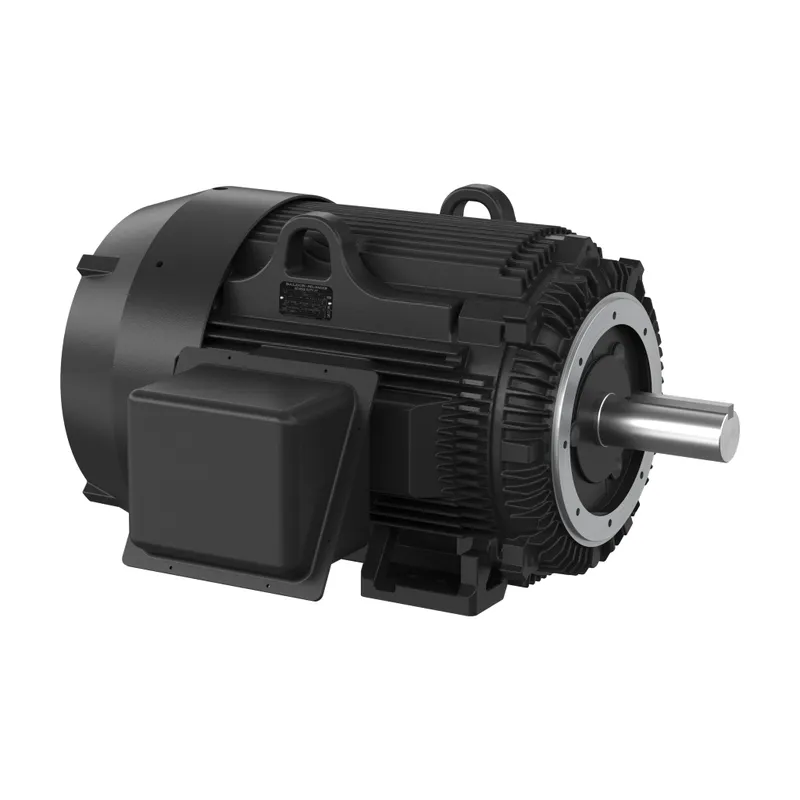

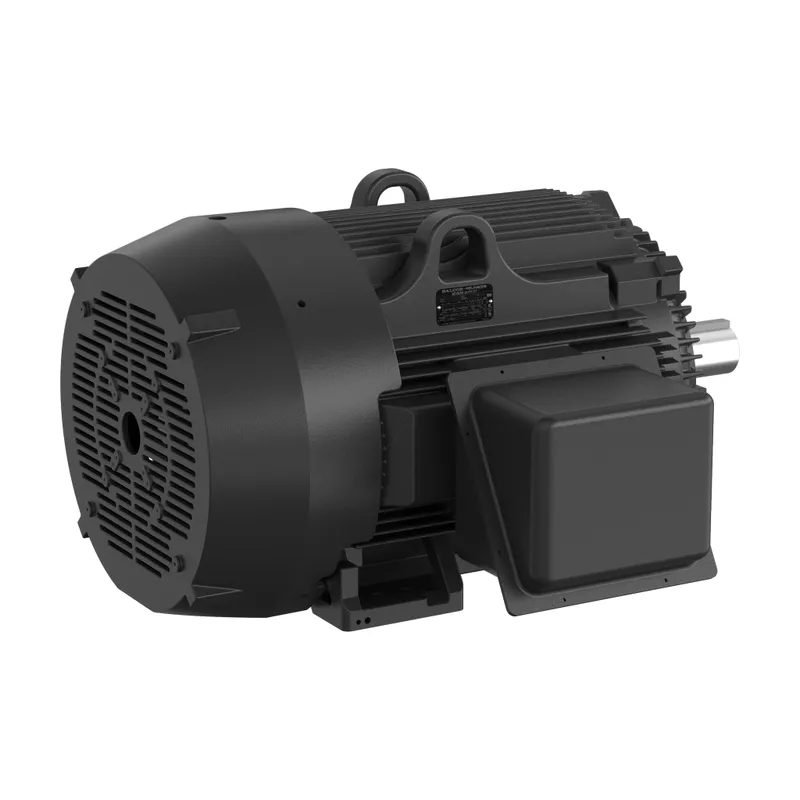

ABB CXT31254T-4

125HP,1785RPM,3PH,60HZ,444TC,A44076

MPN: CXT31254T-4

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CXT31254T-4?

125HP,1785RPM,3PH,60HZ,444TC,A44076M,TEF

Specifications

Additional Information

ABB Type Designation	125HP,1785RPM,3PH,60HZ,444TC,A44076
Ambient Temperature	40 °C
Bearing	6318, Ball
Bearing NDE	6318
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	CXT31254T-4
Certification Agency	CCSA US, CSA EEV, NEMA PREMIUM, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Drive End Flange Type	C-Face
Efficiency Level	Premium Efficiency (NEMA 12-12)
Enclosure Type	TEFC
Frame Material	Iron
Frame Size	Undefined
Global Commercial Alias	CXT31254T-4
Gross Volume	105840 in³
Gross Weight	1669 lb
Insulation Class	F
Invoice Description	125HP,1785RPM,3PH,60HZ,444TC,A44076M,TEF
Made To Order	No
Maximum Speed	3600 r/min
Medium Description	C-Face Mounting, 3Phase Phase, TEFC Enclosure, (CXT31254T-4)
Minimum Order Quantity	1 piece
Motor Base Type	Rigid
Motor Frame Size	444TC
Mounting Orientation	Horizontal
Mounting Position	F1
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Poles (High)	4
Number of Speeds	Single Speed
Order Multiple	1 piece
Output Power	125 Hp
Power Factor	85 %
Product Name	LV Severe Duty Motors
Product Net Depth / Length	48 in
Product Net Height	52.5 in
Product Net Weight	1669 lb
Product Net Width	42 in
Product Type	Undefined
Quote Only	No
Rated Current (In)	144 A A
Rated Efficiency	95.40 %
Rated Speed	1785 r/min
Selling Unit of Measure	piece
Service Factor	1.15
Shaft Diameter	3.38 in
Short Description	C-Face, 3Phase PH, TEFC,
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Synchronous Speed (vsyn)	1800 r/min
Type of Duty	Continuous
Voltage Rating	460 V V
