ABB CPX282526T

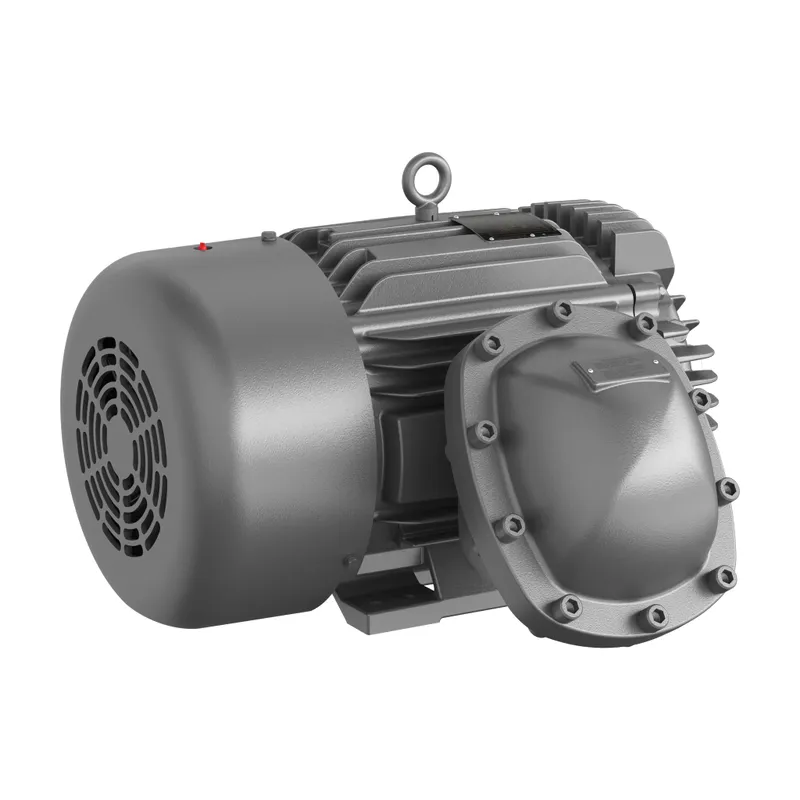

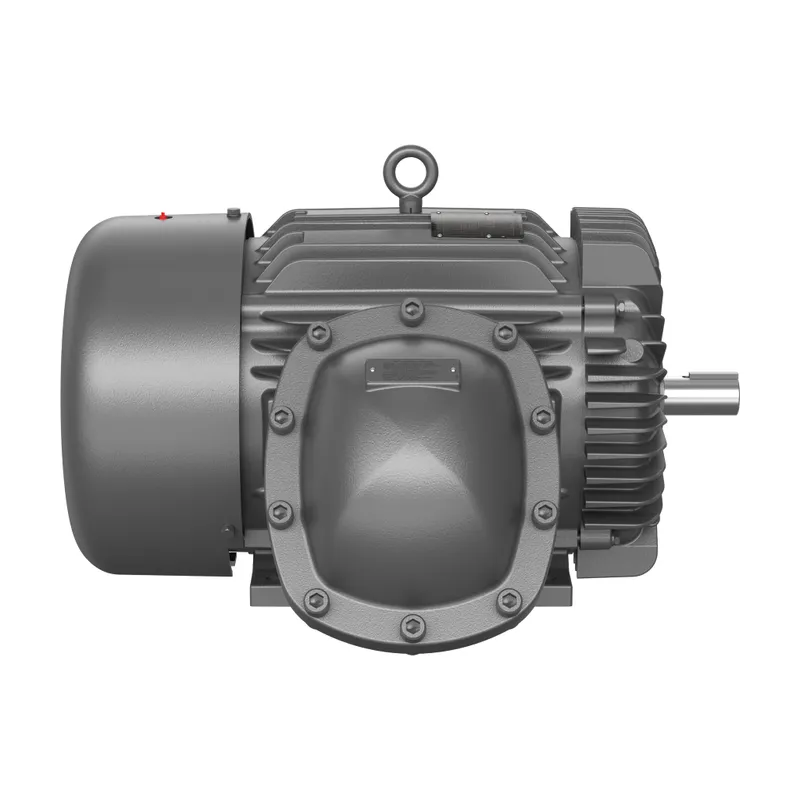

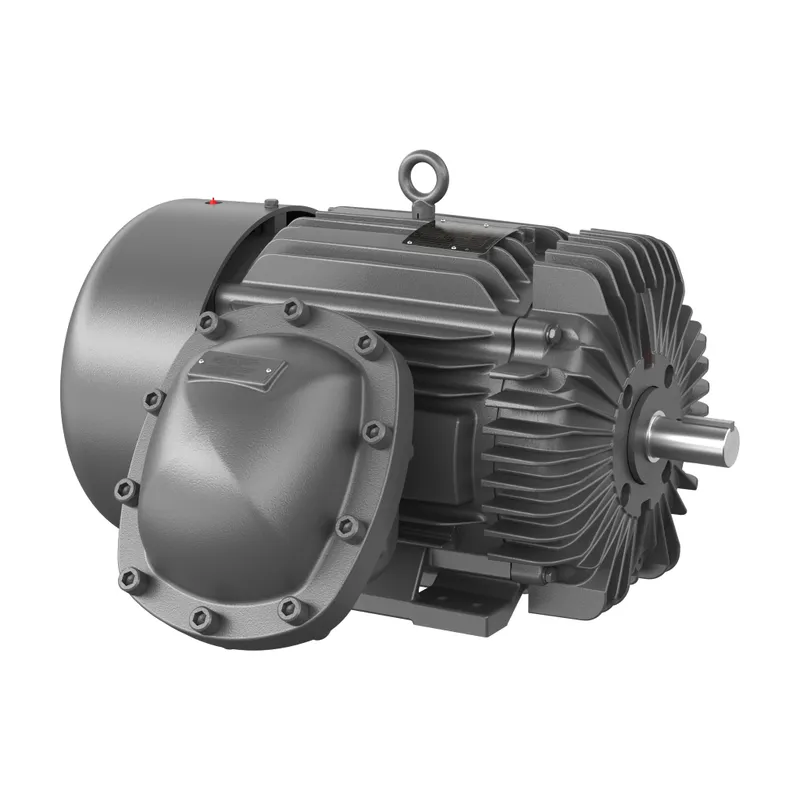

38M 2P XPFC HOR 284TSY TSTAT CP FEA

MPN: CPX282526T
Category: XP severe duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CPX282526T?

Explosion Proof Severe Duty 20 Hp 190 V (CPX282526T)

Specifications

Ordering

Catalog Number	CPX282526T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	91.70 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3000 r/min, 3600 r/min
Output Power	20 Hp, 25 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group C & D, Class II, Group E, F & G G
Frame Material	Iron
Motor Frame Size	284TSY
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	445 lb
Product Net Width	32.5 in
Dimension Diagram	10LYK316

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
