Home / ABB / GNEM enclosed motor / ABB CM3613TX

ABB

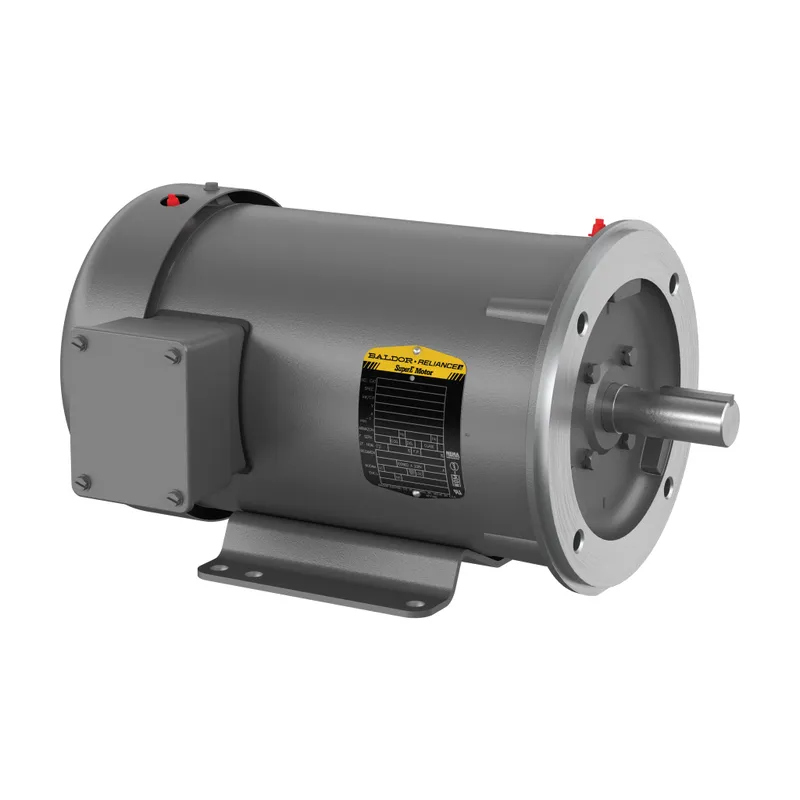

ABB CM3613TX

5HP,3450RPM,3PH,60HZ,184TC,3626M,TE

MPN: CM3613TX
Category: GNEM enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CM3613TX?

General Purpose Motor 5 Hp 208 V (CM3613TX)

Specifications

Ordering

Catalog Number	CM3613TX
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Energy Efficiency (NEMA 12-11), IE2, Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	93 %
Rated Efficiency	87.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	184TC
Motor Base Type	Rigid
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	71 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CSA, UR
