Home / ABB / Jet pump / ABB CJL1304A
ABB

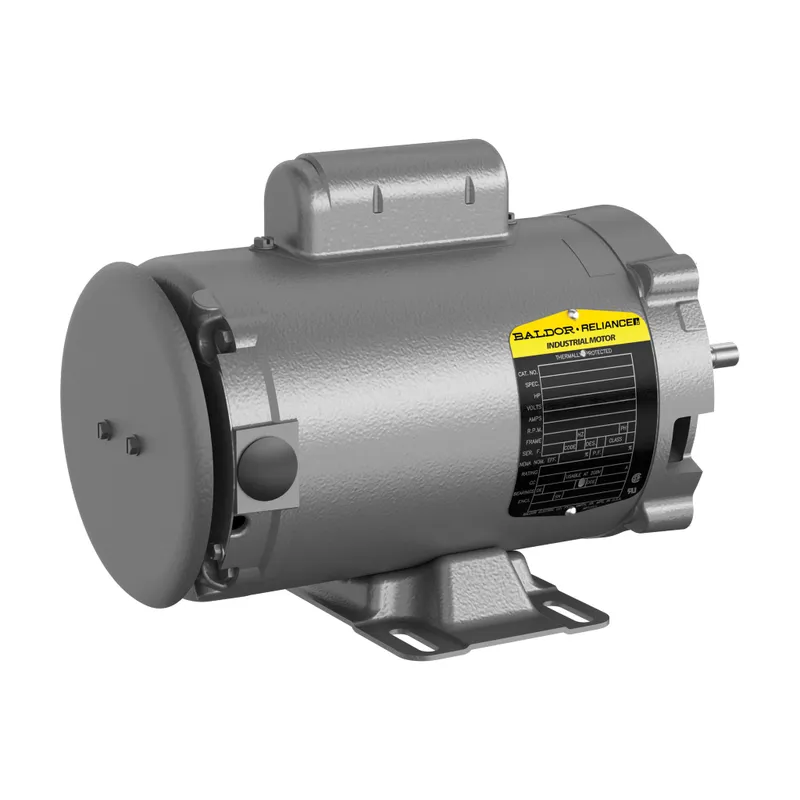

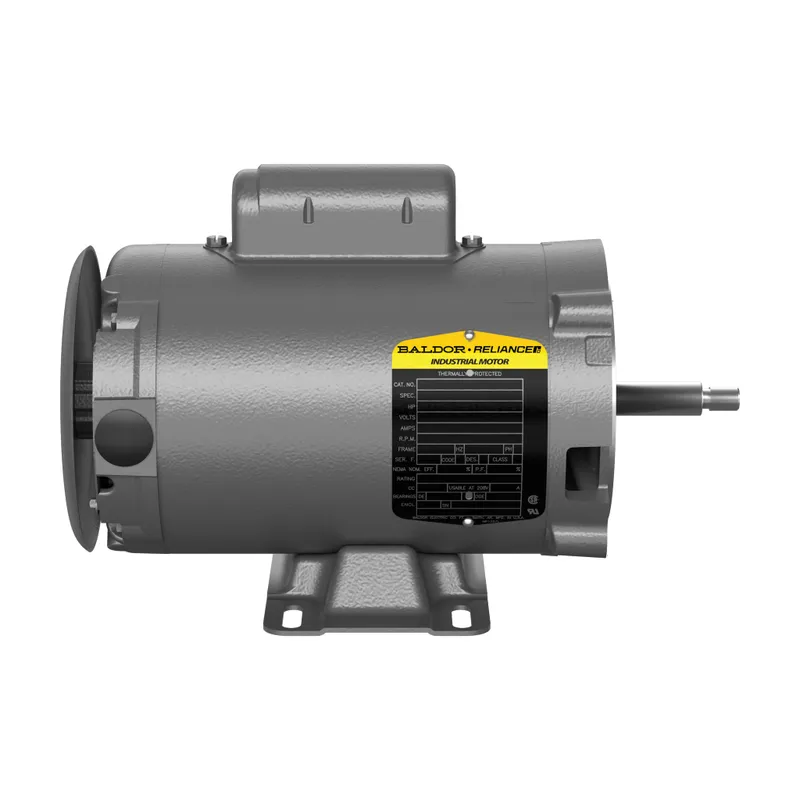

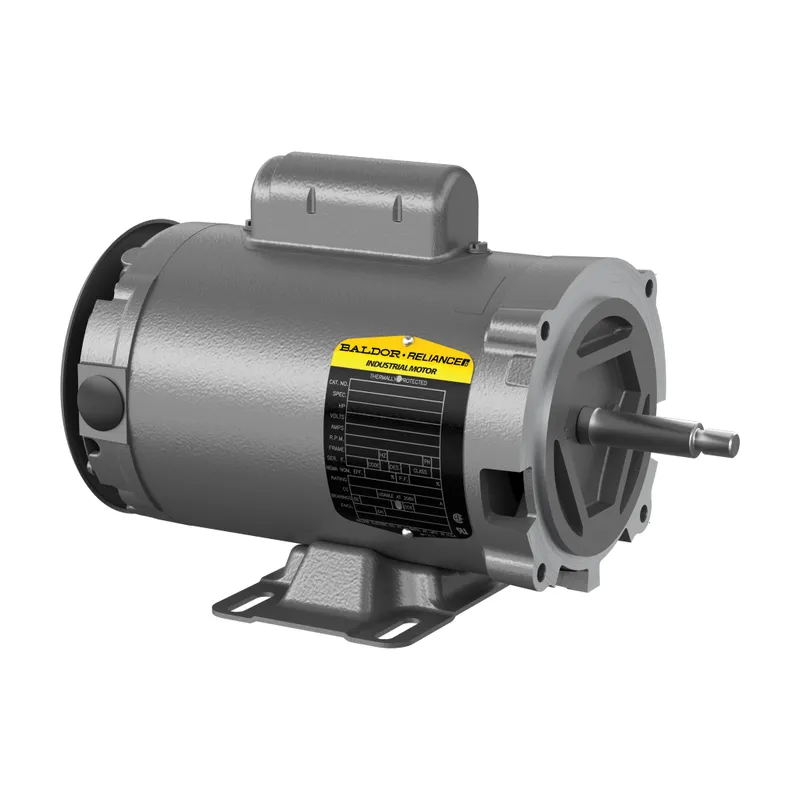

ABB CJL1304A

.5HP,1725RPM,1PH,60HZ,56J,3418L,OPE

MPN
CJL1304A
Category
Jet pump
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB CJL1304A?

Pump Motor 0.5 Hp 115 V (CJL1304A)

Specifications

Ordering

Catalog NumberCJL1304A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassB
NEMA Design CodeN
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor62 %
Rated Efficiency62 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size56J
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height9.375 in
Product Net Weight25 lb
Product Net Width10.813 in
Dimension Diagram34LYF030

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1320 >> Pump motor AC
ETIM 7EC001851 - Electric motor
