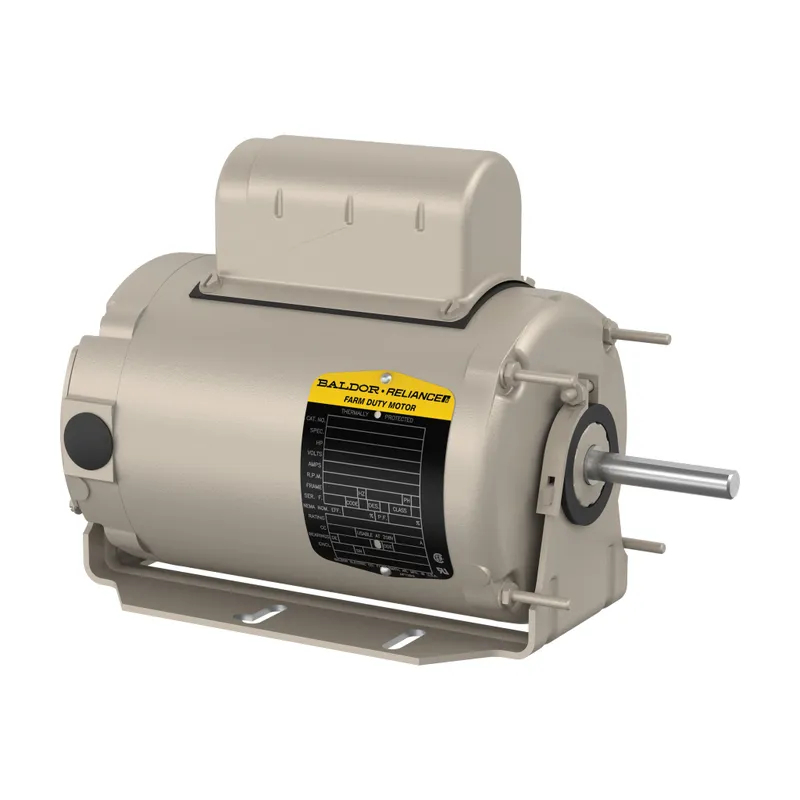

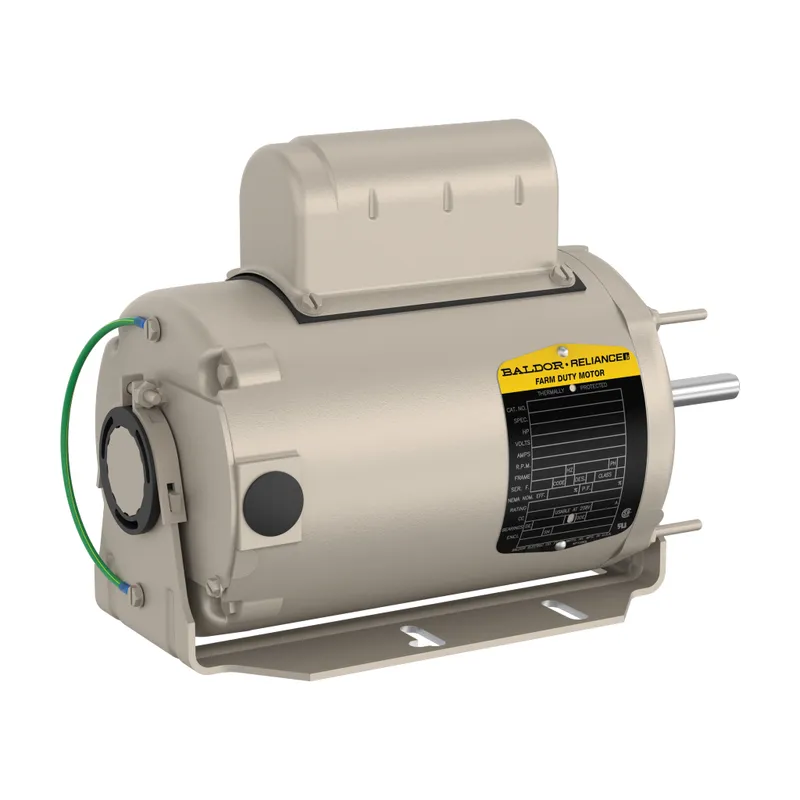

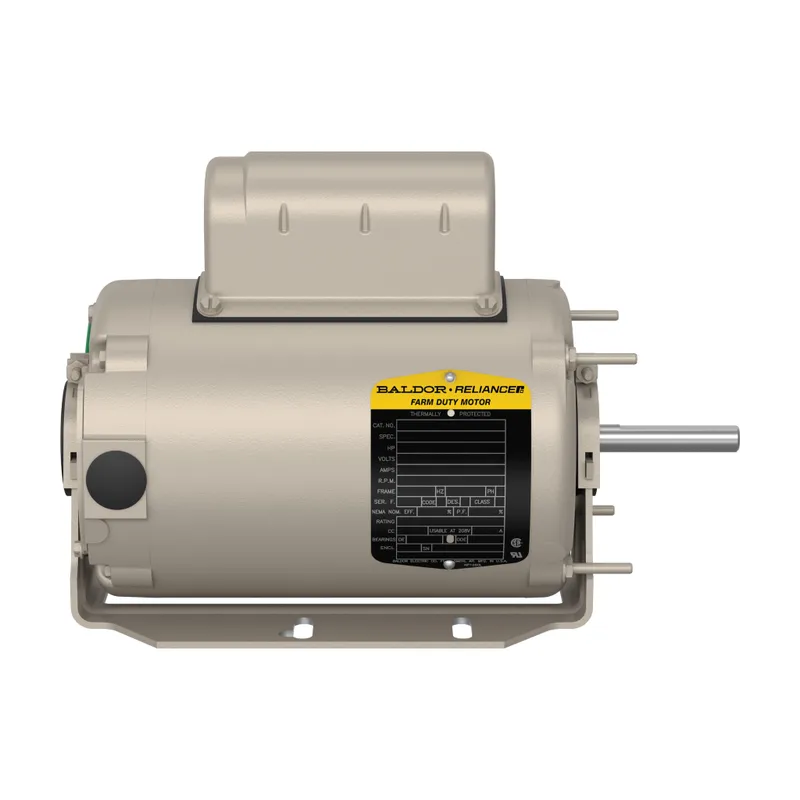

ABB CHC3417A

.33HP,1100RPM,1PH,60HZ,48Z,3421C,TE

MPN: CHC3417A
Category: Farm Duty Three Phase

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CHC3417A?

Farm Duty Motor 0.330.000 Hp 115 V (CHC3417A)

Specifications

Ordering

Catalog Number	CHC3417A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
Number of Phases	1-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	67 %
Rated Efficiency	54 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	0.330.000 Hp

Mechanical

Drive End Flange Type	Resilient Mount
Enclosure Type	TEAO
Frame Material	Steel
Motor Frame Size	48Z
Motor Base Type	Resilient
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	9.375 in
Product Net Weight	26 lb
Product Net Width	10.813 in
Dimension Diagram	34LYK052

Certificates and Declarations

Certification Agency	CSA, CURUS, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
