Home / ABB / Food Safe three phase motors / ABB CFSWDM3607T-E

ABB

ABB CFSWDM3607T-E

1.5HP,1170RPM,3PH,60HZ,182TC,3640M

MPN: CFSWDM3607T-E
Category: Food Safe three phase motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CFSWDM3607T-E?

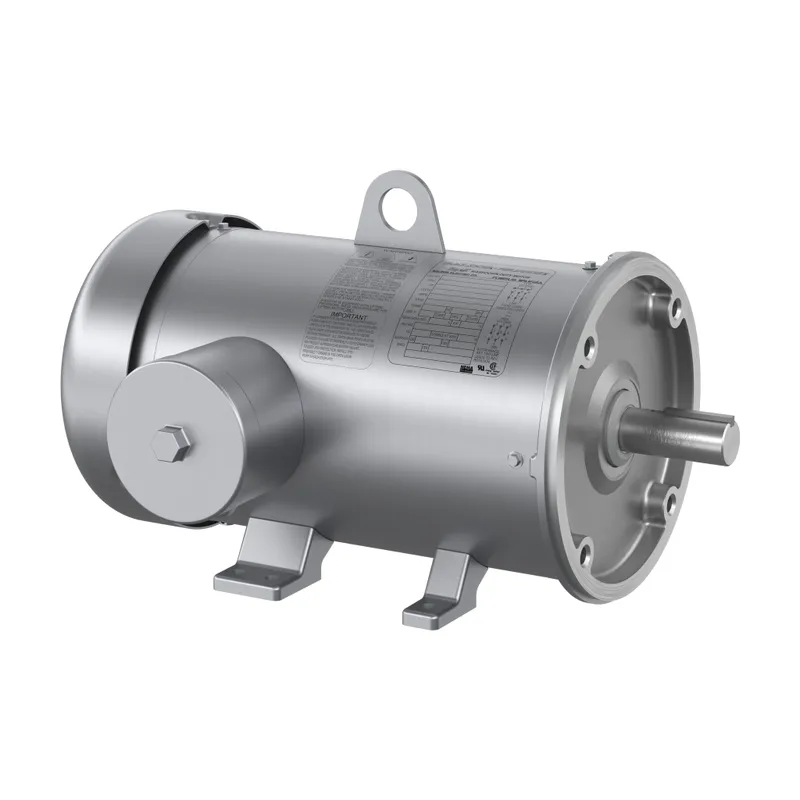

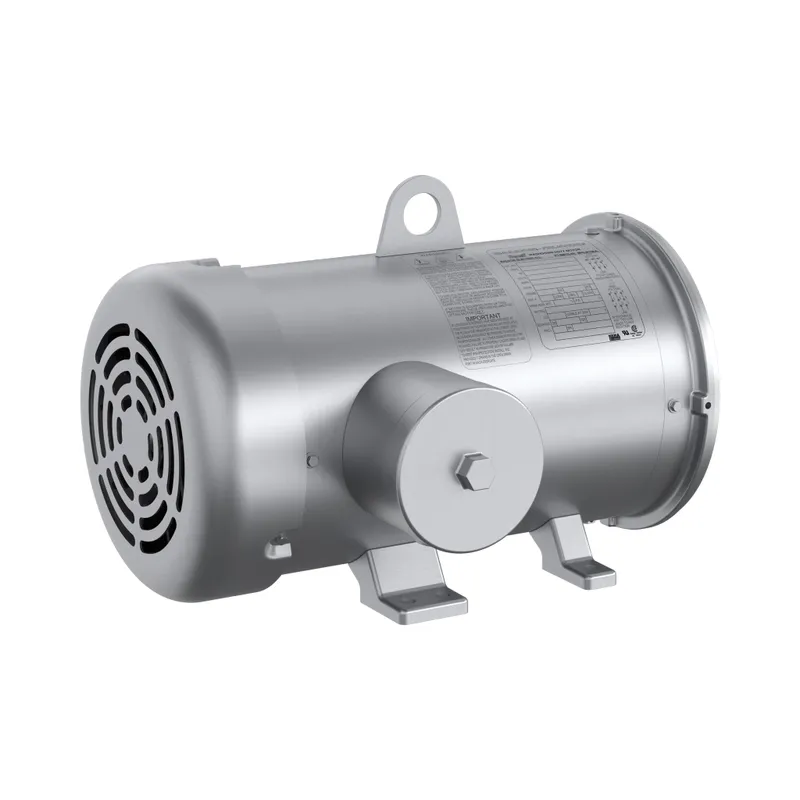

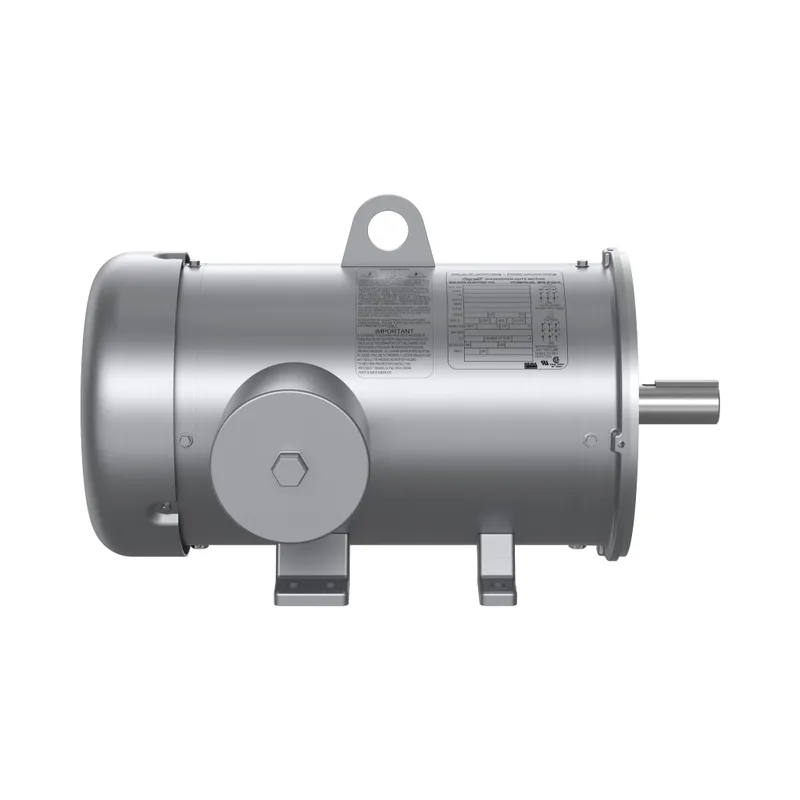

Washdown Motor 1.5 Hp 230 V (CFSWDM3607T-E)

Specifications

Ordering

Catalog Number	CFSWDM3607T-E
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	62 %
Rated Efficiency	87.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Stainless Steel
Motor Frame Size	182TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.25 in
Product Net Weight	90 lb
Product Net Width	16.625 in
Dimension Diagram	36LYR552

Certificates and Declarations

Certification Agency	CSA EEV, CURUSEEV, NEMA_PREMIUM, UR, WEEE
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
