Home / ABB / Food Safe three phase motors / ABB CFSWDM3543-E
ABB

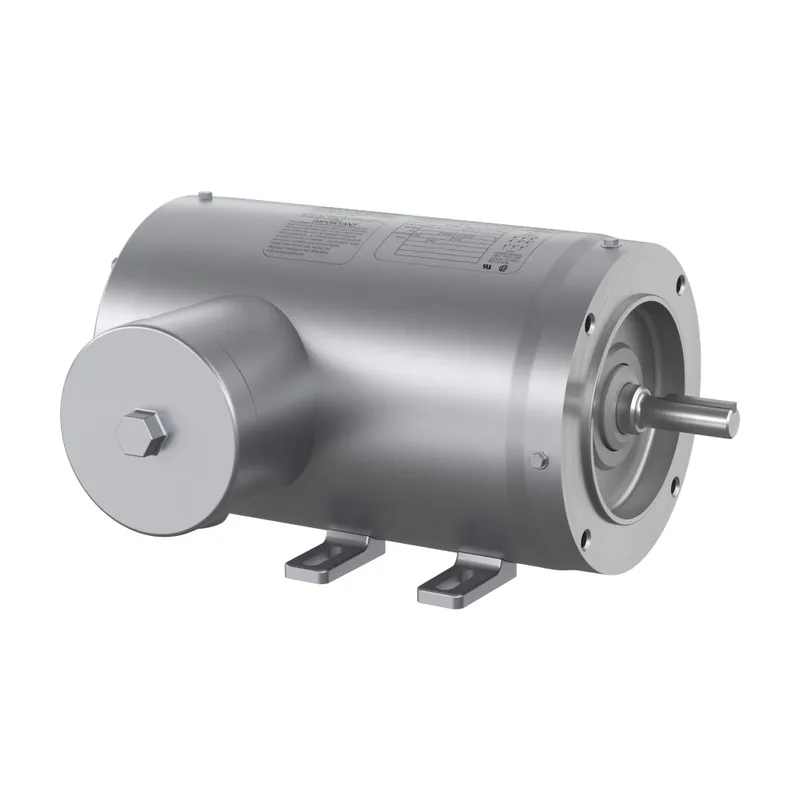

ABB CFSWDM3543-E

.75HP,1170RPM,3PH,60HZ,56C,3530M,TE

MPN
CFSWDM3543-E
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB CFSWDM3543-E?

Washdown Motor 0.750.000 Hp 208 V (CFSWDM3543-E)

Specifications

Ordering

Catalog NumberCFSWDM3543-E
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation ClassH
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor64 %
Rated Efficiency82.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power0.750.000 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTENV
Frame MaterialStainless Steel
Motor Frame Size56C
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight45 lb
Product Net Width13.75 in
Dimension Diagram35LYE4735

Certificates and Declarations

Certification AgencyCURUS, CURUSEEV, NEMA_PREMIUM, WEEE
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

CFSWDM3543-E: frequently asked questions

When can CFSWDM3543-E be shipped?

CFSWDM3543-E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CFSWDM3543-E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CFSWDM3543-E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFSWDM3543-E, subject to availability and destination.
