Home / ABB / Condenser Fan / ABB CFM3166A
ABB

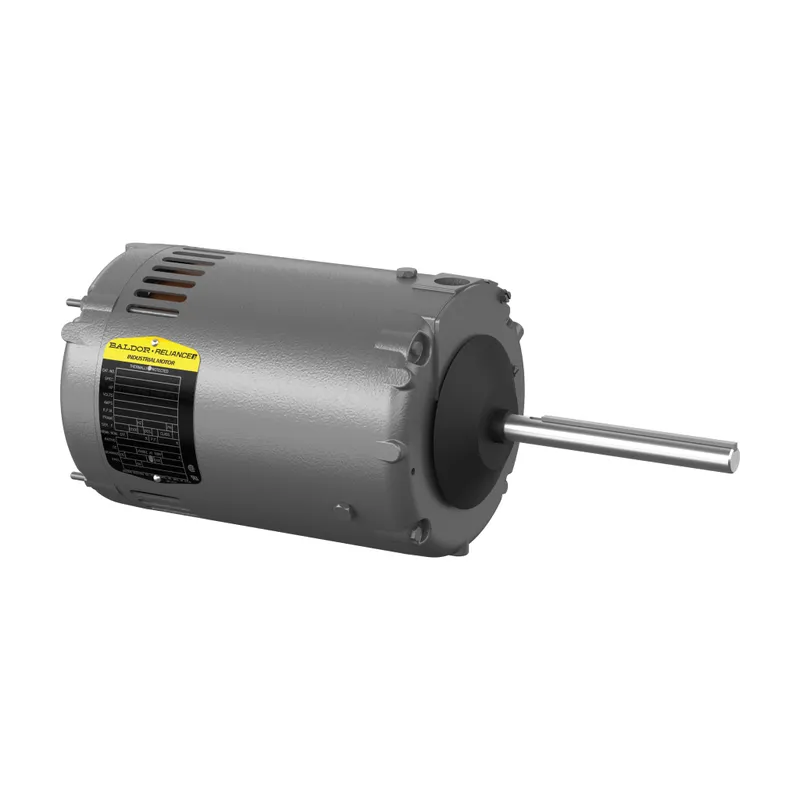

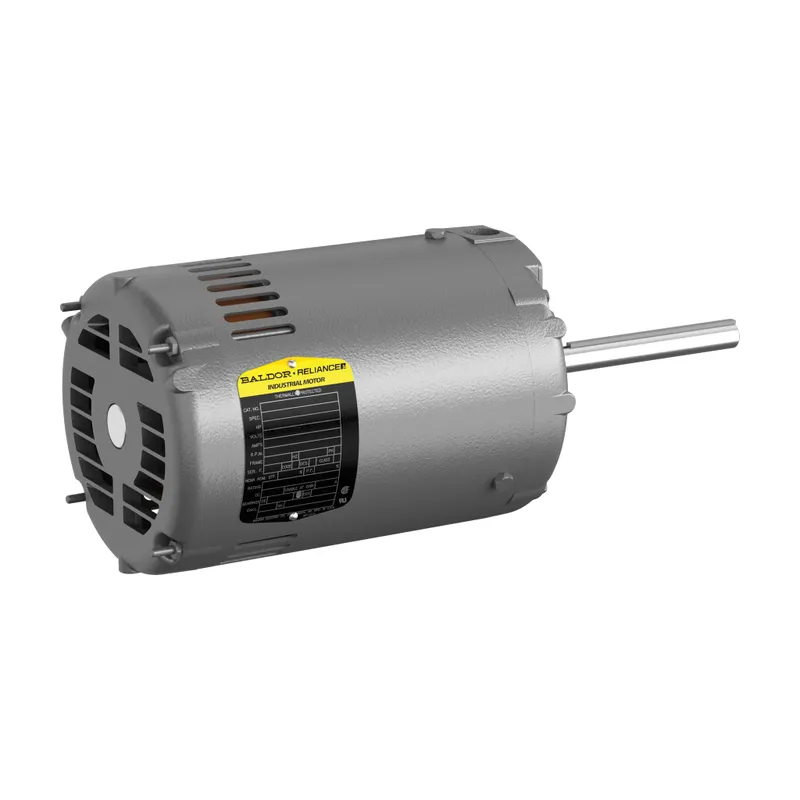

ABB CFM3166A

1.5 AIR OVERHP,1140RPM,3PH,60HZ,56Y

MPN
CFM3166A
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CFM3166A?

Condensor Fan 1.5 Hp 208 V (CFM3166A)

Specifications

Ordering

Catalog NumberCFM3166A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature60 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor72 %
Rated Efficiency76 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power1.5 Hp

Mechanical

Drive End Flange TypeResilient Mount
Enclosure TypeOPAO
Frame MaterialSteel
Motor Frame Size56YZ
Motor Base TypeNo Mounting
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height12.813 in
Product Net Weight48 lb
Product Net Width12.25 in
Dimension Diagram35LYK306

Certificates and Declarations

Certification AgencyC UR US, UR
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor
