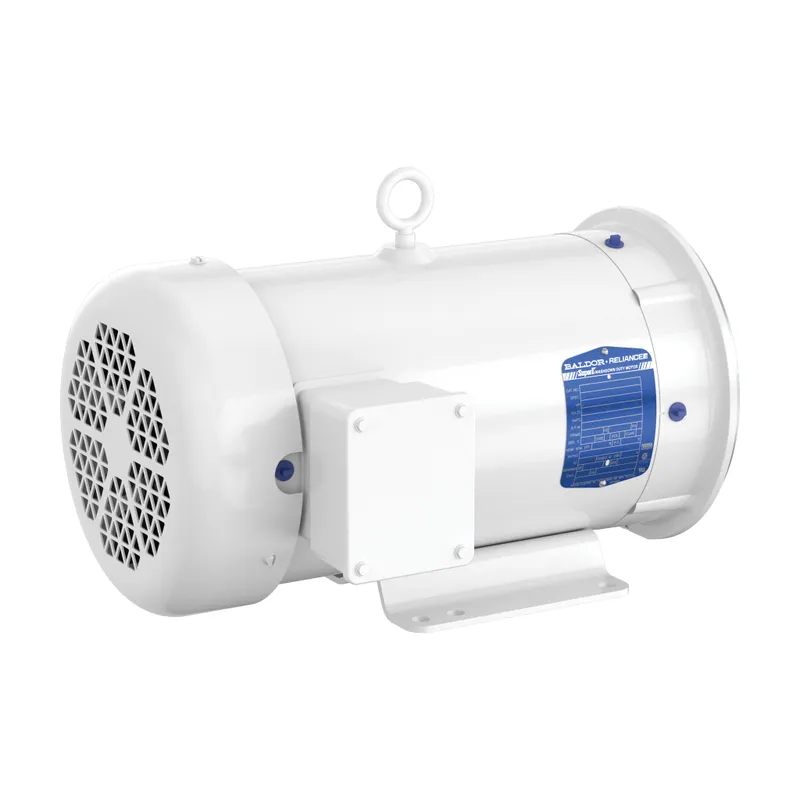

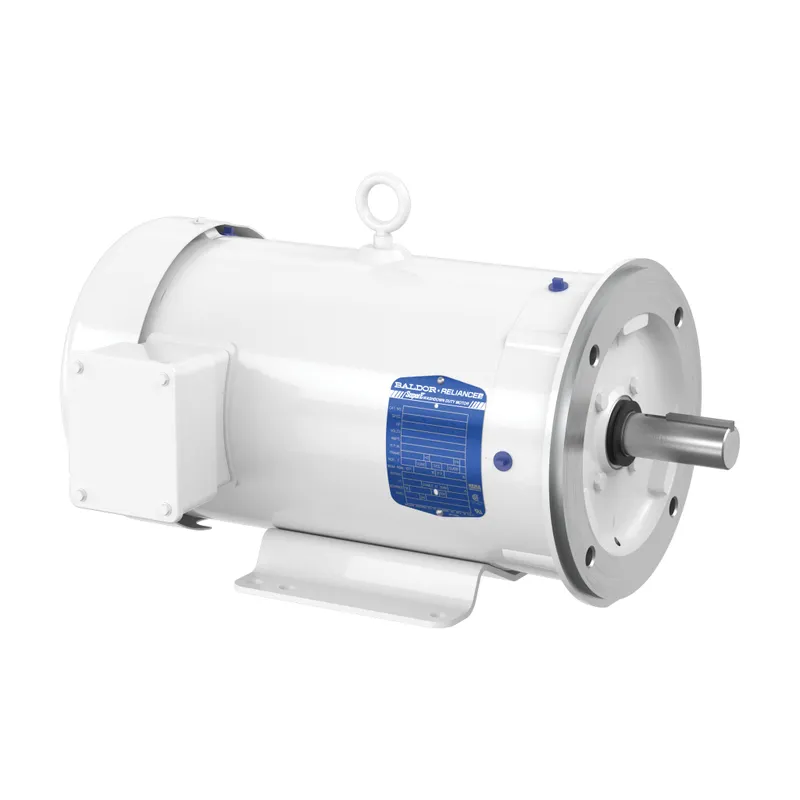

ABB CEWDM3615T

5HP,1755RPM,3PH,60HZ,184TC,3642M,TE

MPN: CEWDM3615T
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CEWDM3615T?

Washdown Motor 5 Hp 230 V (CEWDM3615T)

Specifications

Ordering

Catalog Number	CEWDM3615T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	78 %
Rated Efficiency	89.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	184TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.25 in
Product Net Weight	96 lb
Product Net Width	16.625 in
Dimension Diagram	36LYK190

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
