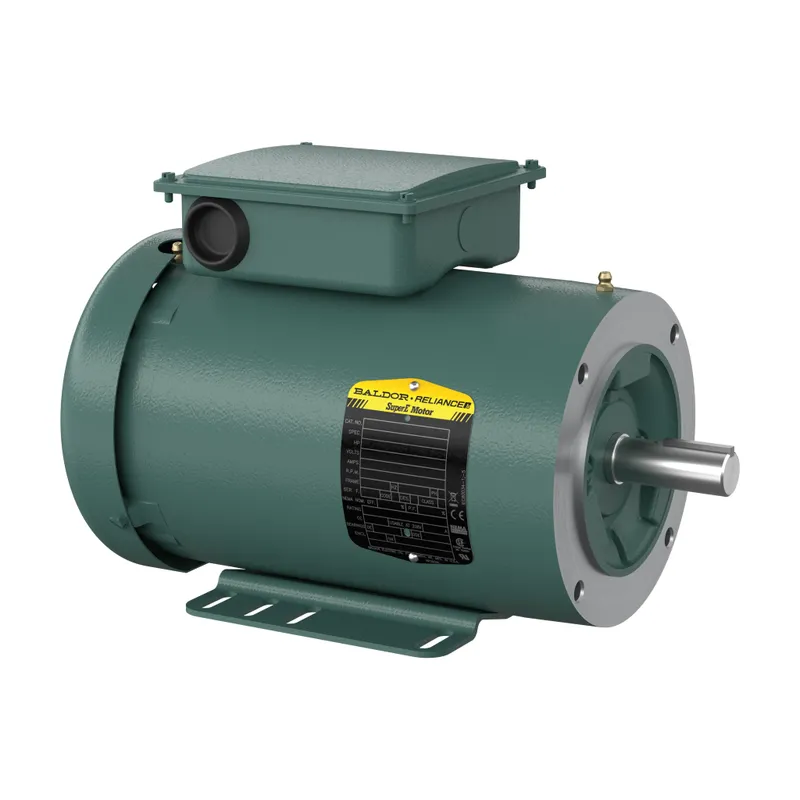

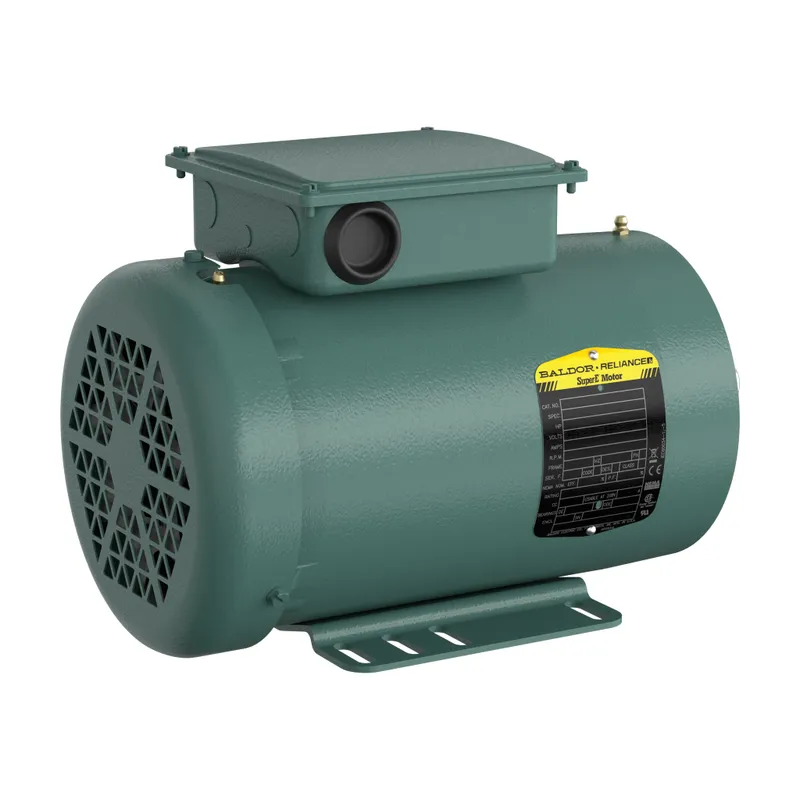

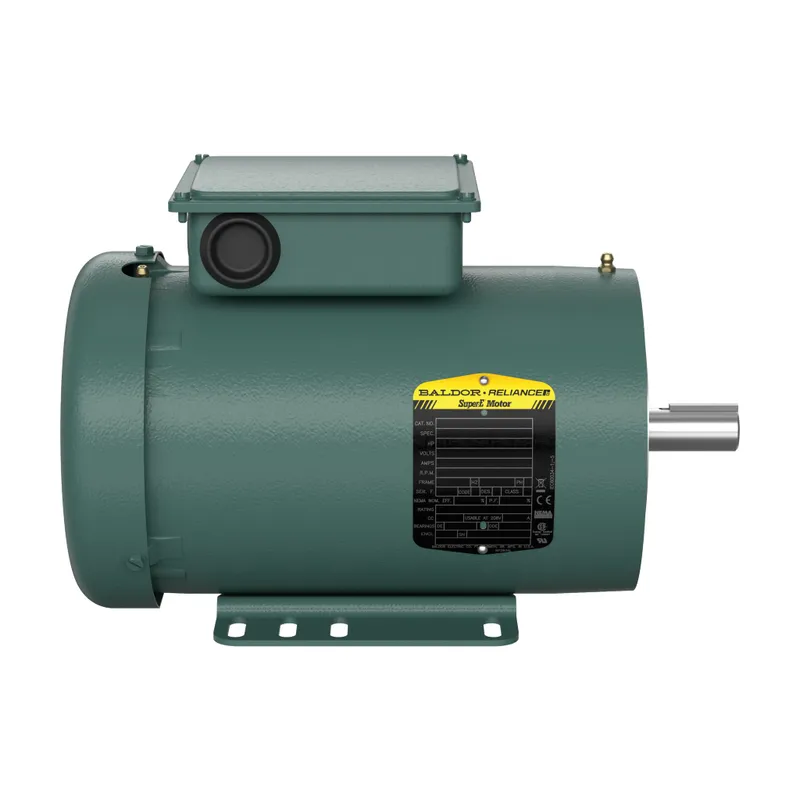

ABB CEUHM3554T

1.5HP,1770RPM,3PH,60HZ,145TCY,3524M

MPN: CEUHM3554T
Category: Unit Handling

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEUHM3554T?

Unit Handling 1.5 Hp 230 V (CEUHM3554T)

Specifications

Ordering

Catalog Number	CEUHM3554T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	72 %
Rated Efficiency	86.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	145TCY
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	45 lb
Product Net Width	13.75 in
Dimension Diagram	35LYX057

Certificates and Declarations

Certification Agency	CE, CURUSEEV, NEMA_PREMIUM, UKCA, WEEE
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
