Home / ABB / Three phase enclosed motor / ABB CEM3771T-5
ABB

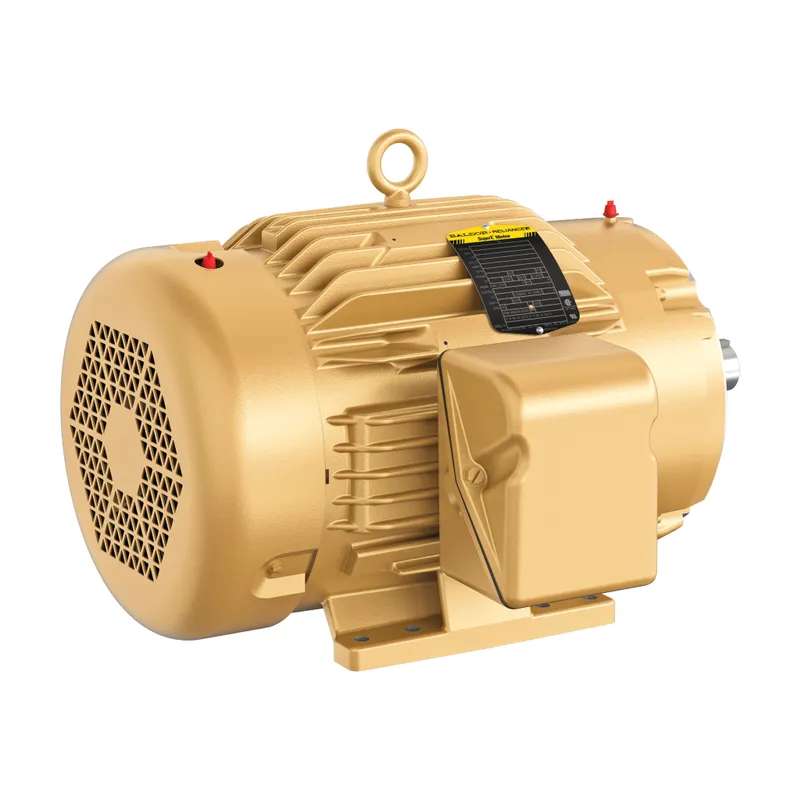

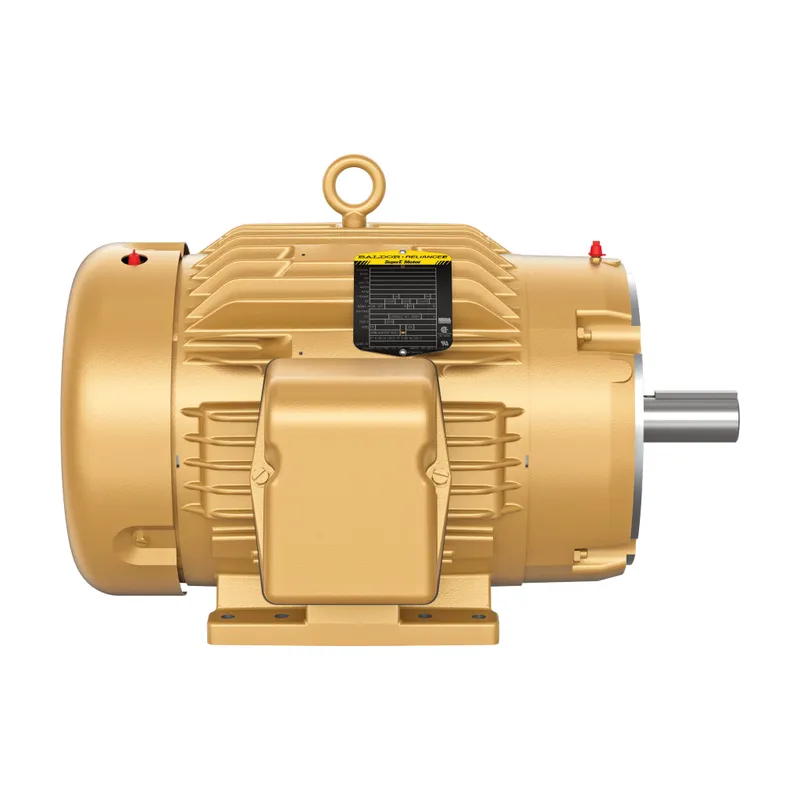

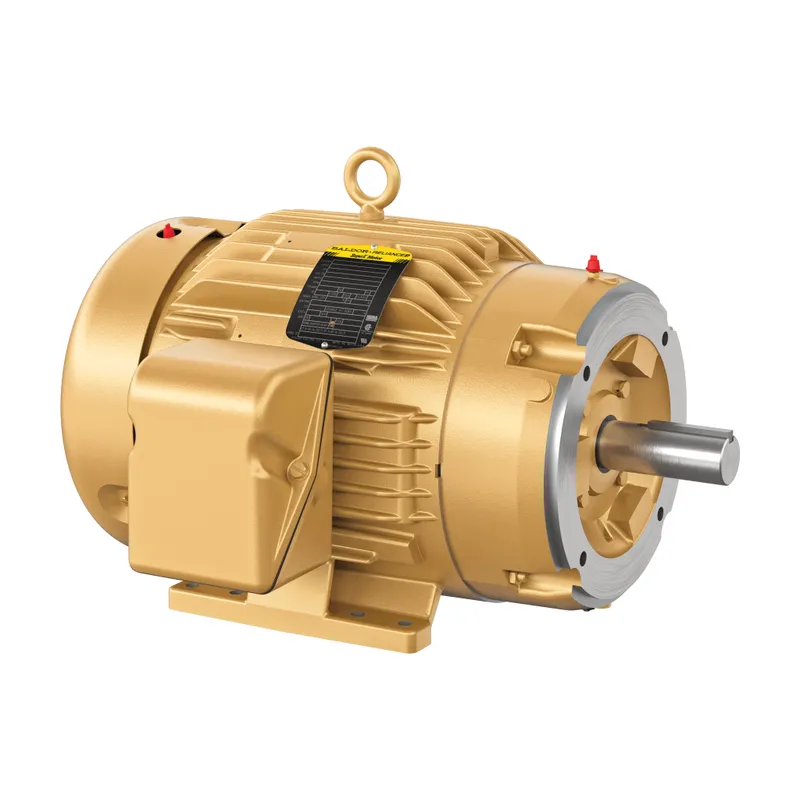

ABB CEM3771T-5

10HP,3490RPM,3PH,60HZ,215TC,0730M,T

MPN
CEM3771T-5
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEM3771T-5?

General Purpose Motor 10 Hp 575 V (CEM3771T-5)

Specifications

Ordering

Catalog NumberCEM3771T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor87 %
Rated Efficiency90.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size215TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight182 lb
Product Net Width18.125 in
Dimension Diagram07LYH058

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
