Home / ABB / Three phase enclosed motor / ABB CEM3559T

ABB

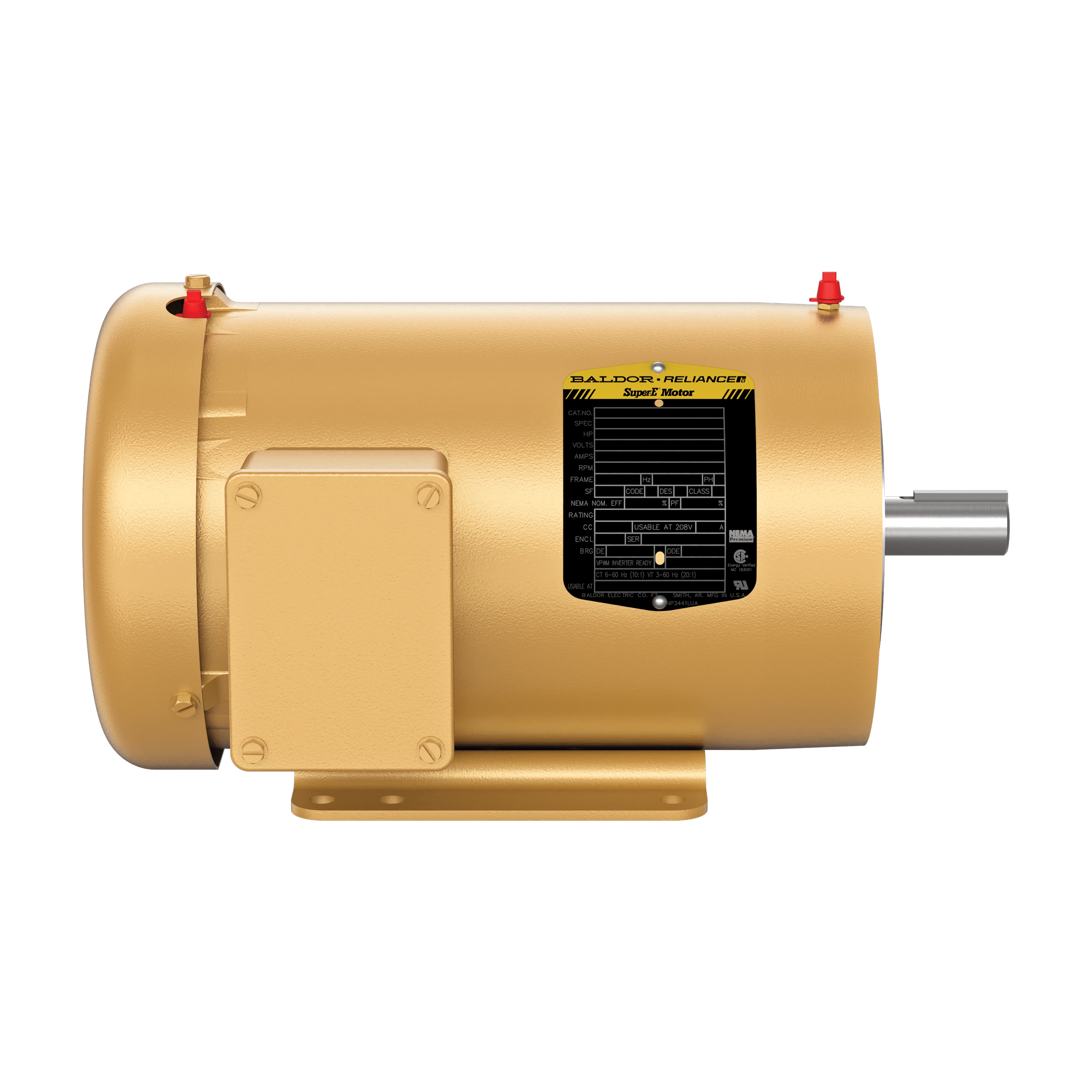

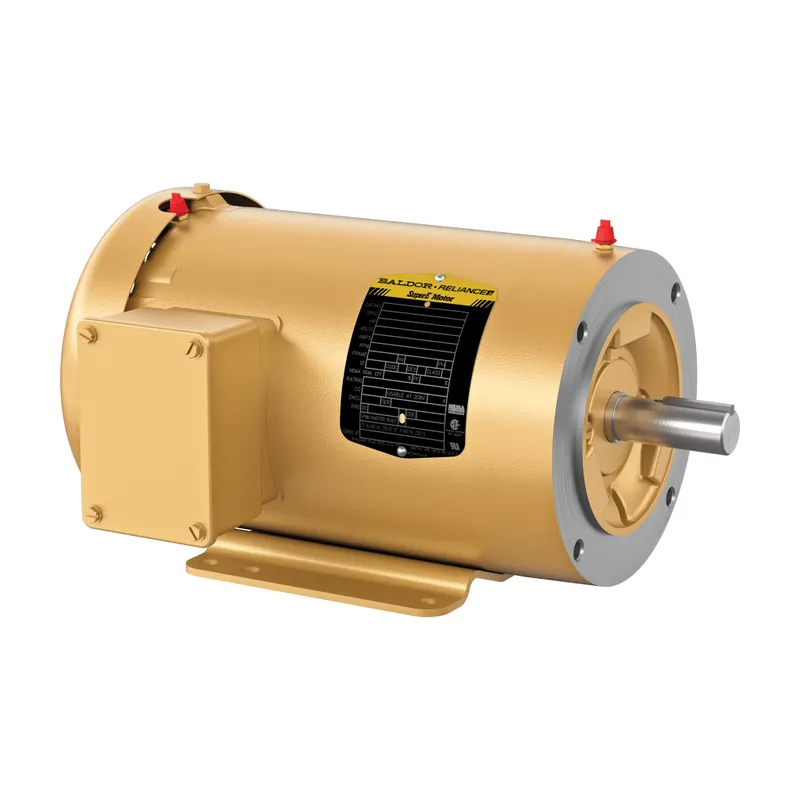

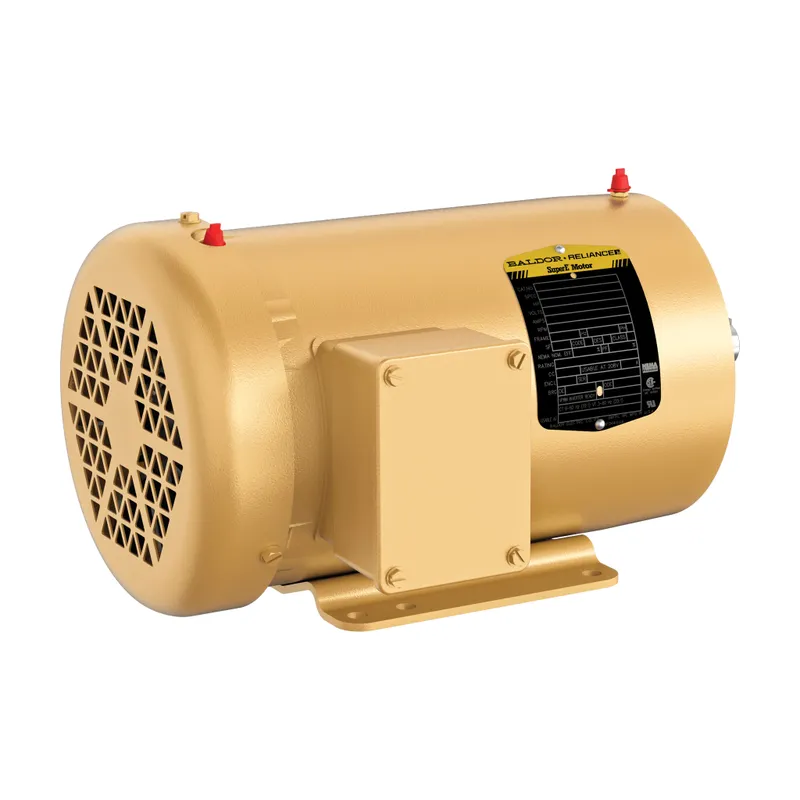

ABB CEM3559T

3HP,3450RPM,3PH,60HZ,145TC,3532M,TE

MPN: CEM3559T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEM3559T?

General Purpose Motor 3 Hp 230 V (CEM3559T)

Specifications

Ordering

Catalog Number	CEM3559T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	92 %
Rated Efficiency	86.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	3 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	52 lb
Product Net Width	13.75 in
Dimension Diagram	35LYTT856

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
