Home / ABB / Three phase open motors / ABB CEM3312T
ABB

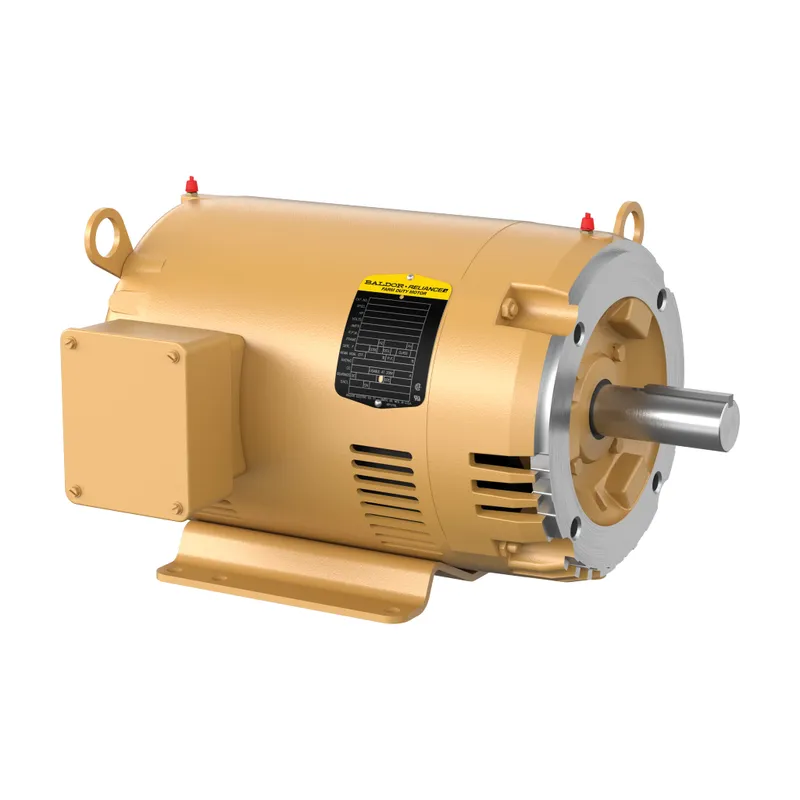

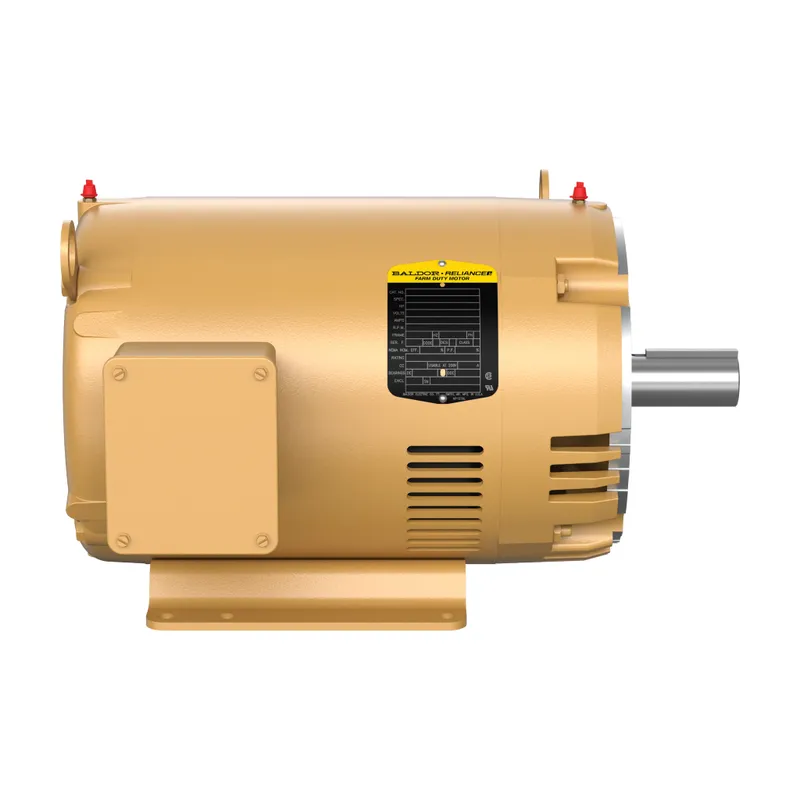

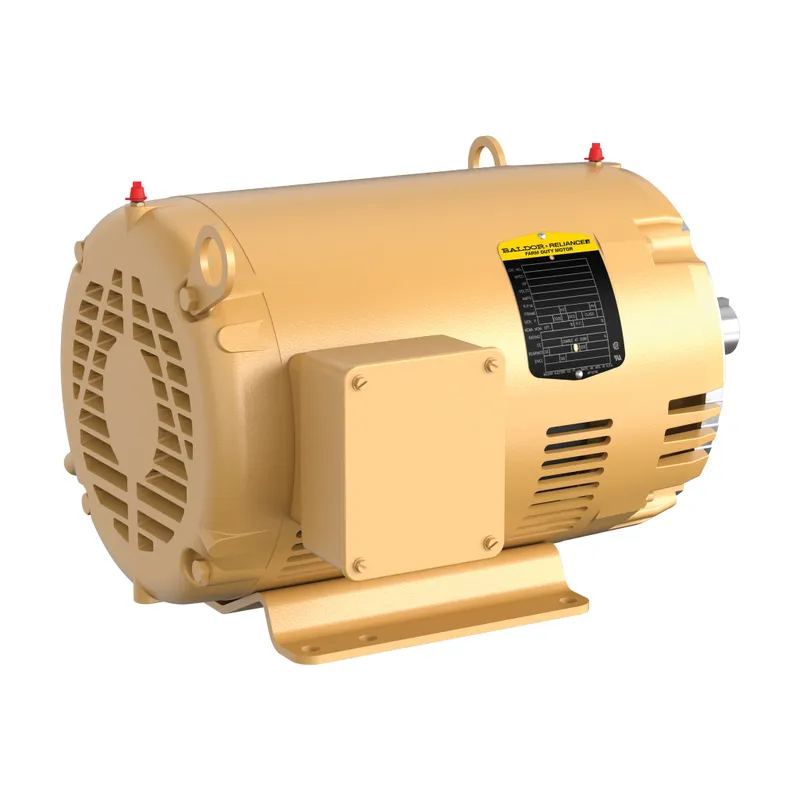

ABB CEM3312T

10HP,3500RPM,3PH,60HZ,213TC,3728M,O

MPN
CEM3312T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB CEM3312T?

General Purpose Motor 10 Hp 230 V (CEM3312T)

Specifications

Ordering

Catalog NumberCEM3312T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor85 %
Rated Efficiency90.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size213TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height16.25 in
Product Net Weight121 lb
Product Net Width16.625 in
Dimension Diagram37LYB102

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
