Home / ABB / Three phase open motors / ABB CEM3215T
ABB

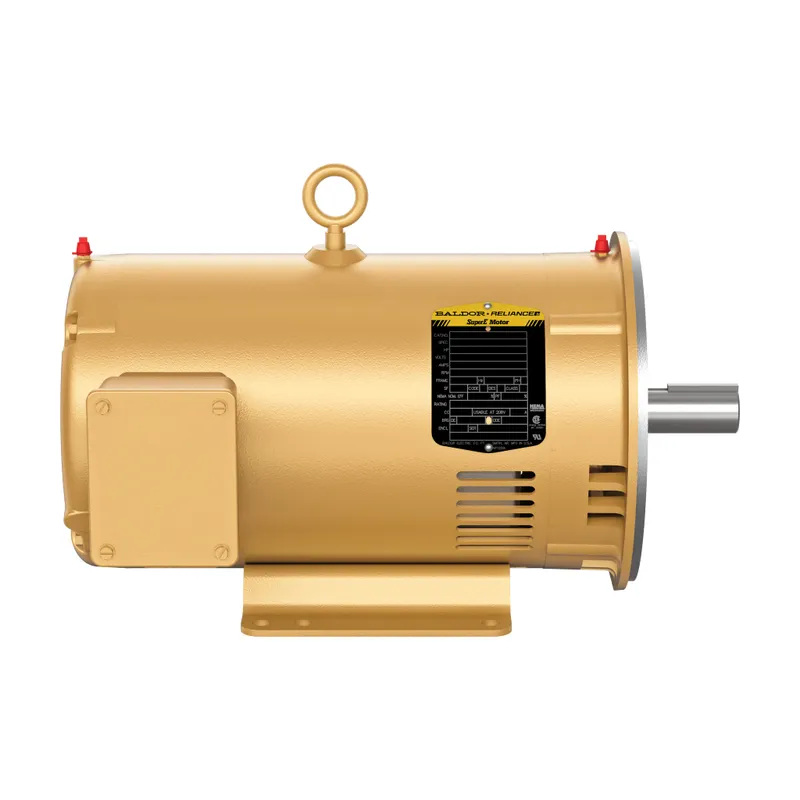

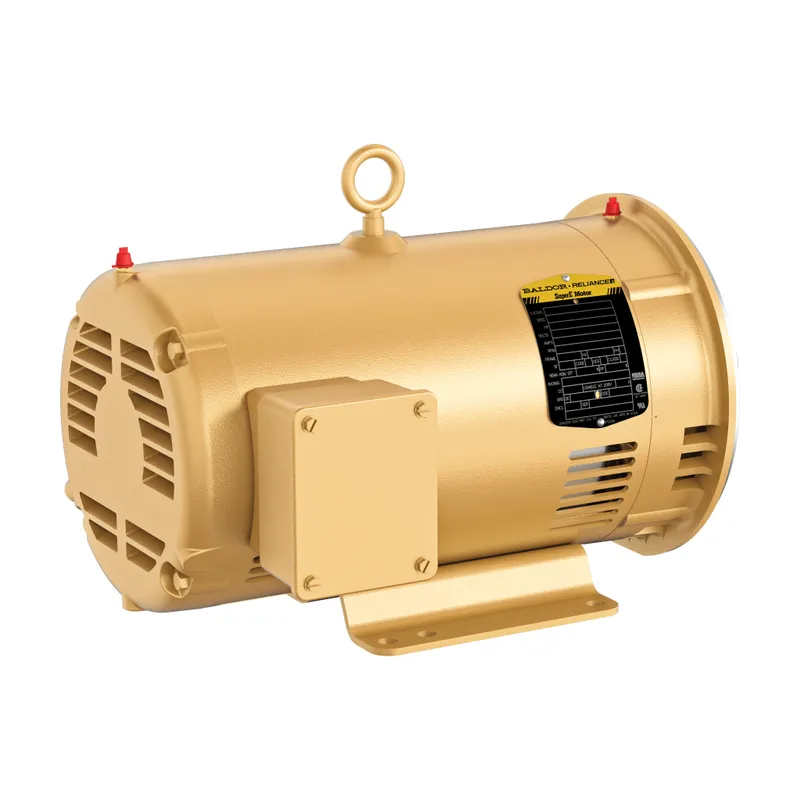

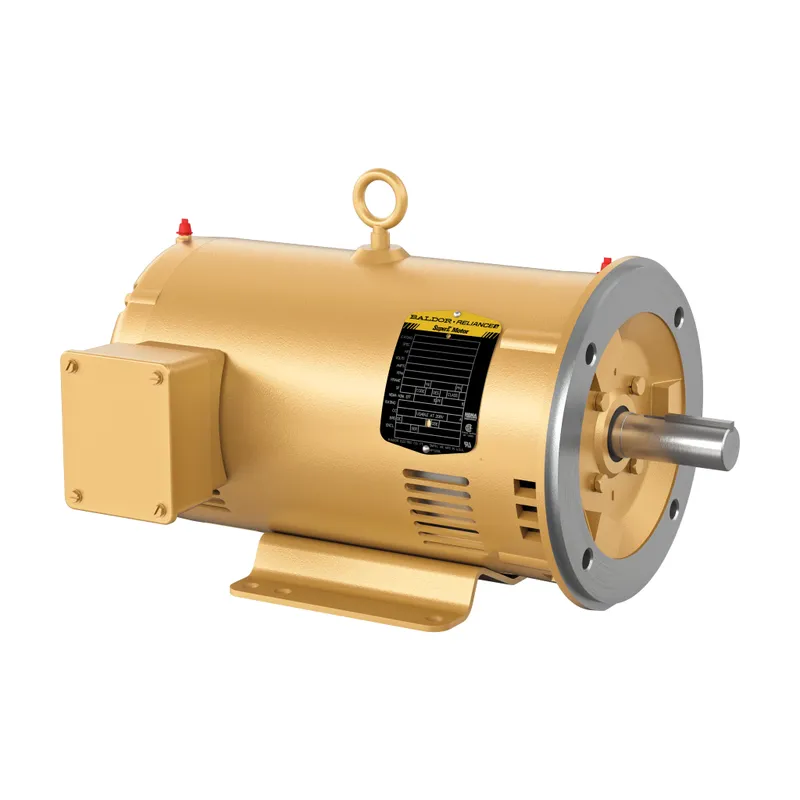

ABB CEM3215T

2HP,1165RPM,3PH,60HZ,184TC,OPSB,F1

MPN
CEM3215T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB CEM3215T?

General Purpose Motor 2 Hp 230 V (CEM3215T)

Specifications

Ordering

Catalog NumberCEM3215T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor63 %
Rated Efficiency87.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power2 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeOPSB
Frame MaterialSteel
Motor Frame Size184TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight82 lb
Product Net Width16.125 in
Dimension Diagram36LYB102

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

CEM3215T: frequently asked questions

When can CEM3215T be shipped?

CEM3215T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CEM3215T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CEM3215T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CEM3215T, subject to availability and destination.
