Home / ABB / IEEE 841XL Motors / ABB CECP83771T-4
ABB

ABB CECP83771T-4

10HP,3475RPM,3PH,60HZ,215TC,0742M,T

MPN
CECP83771T-4
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CECP83771T-4?

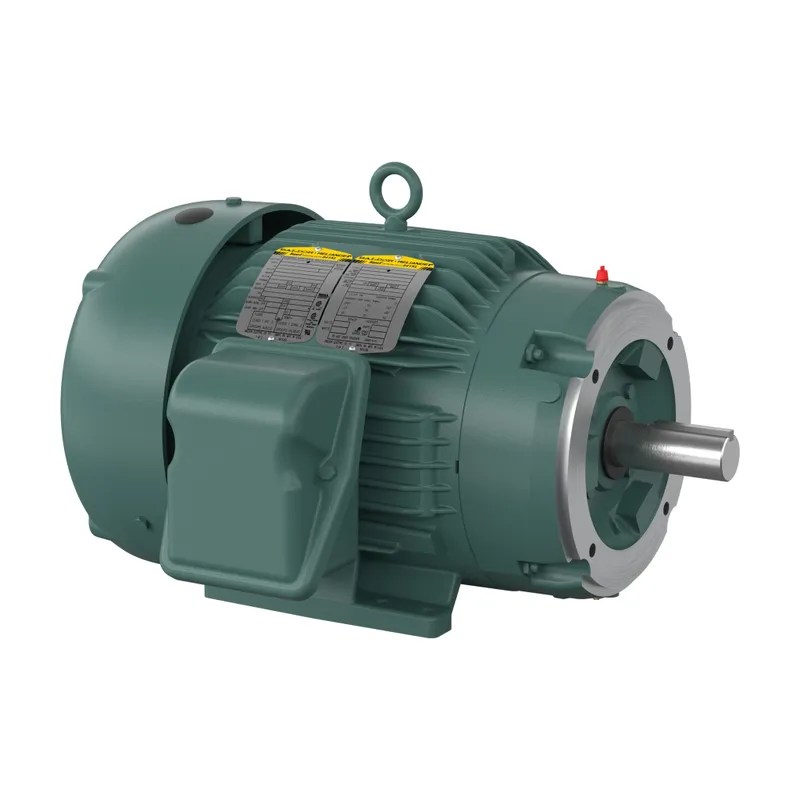

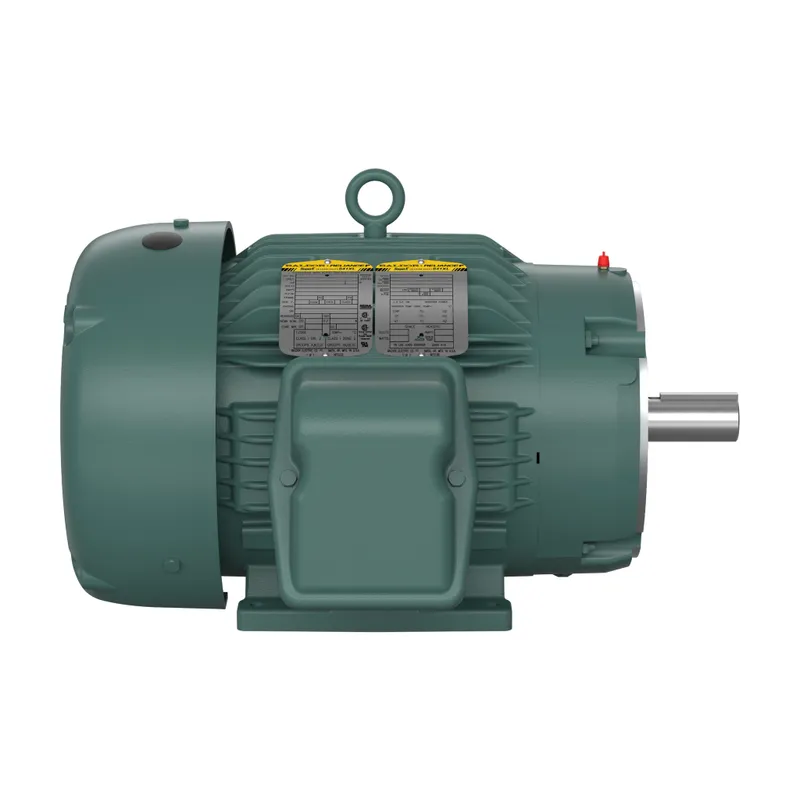

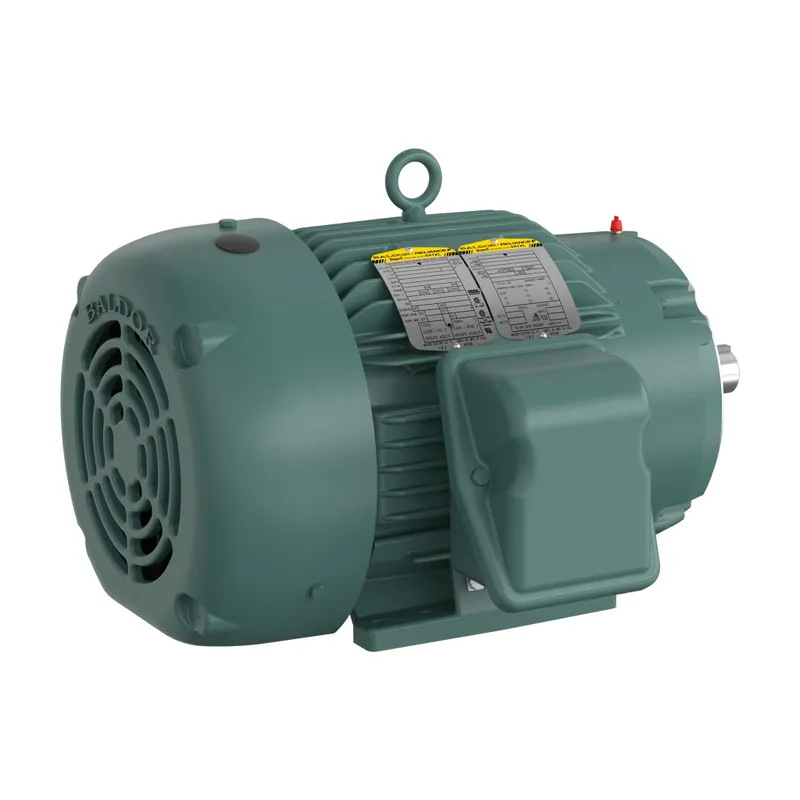

Severe Duty Motor 10 Hp 460 V (CECP83771T-4)

Specifications

Ordering

Catalog NumberCECP83771T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor91 %
Rated Efficiency91 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group A, B, C & D A
Frame MaterialCast Iron
Motor Frame Size215TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight225 lb
Product Net Width18.125 in
Dimension Diagram07LYM320

Certificates and Declarations

Certification AgencyCCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor
