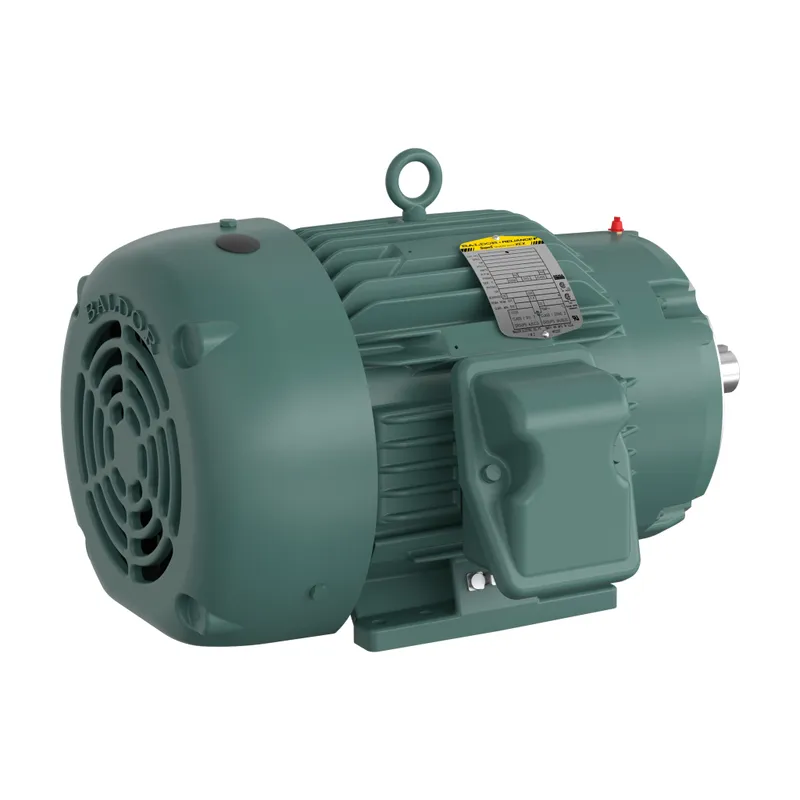

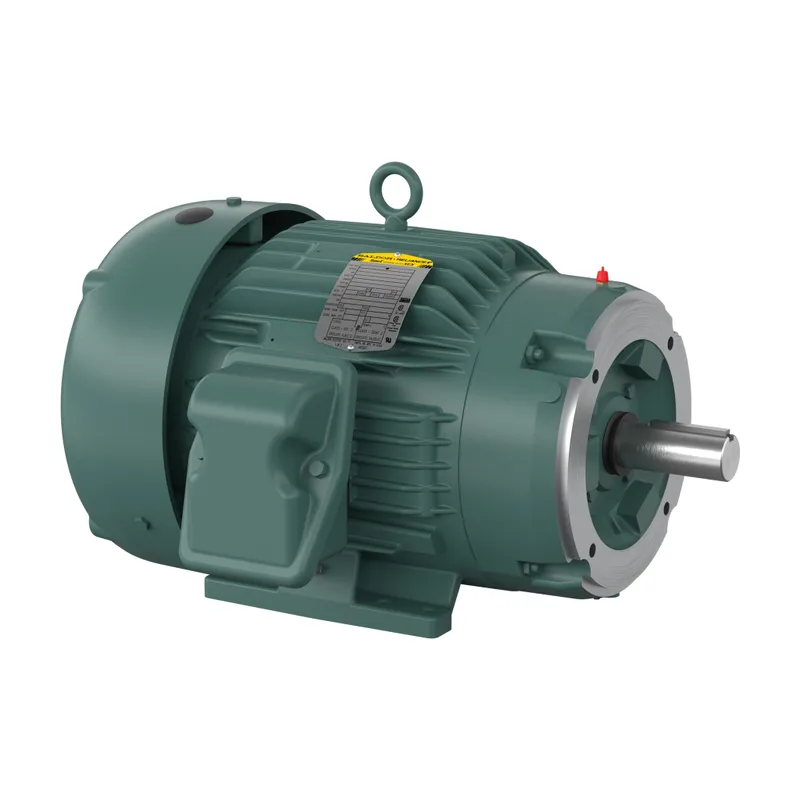

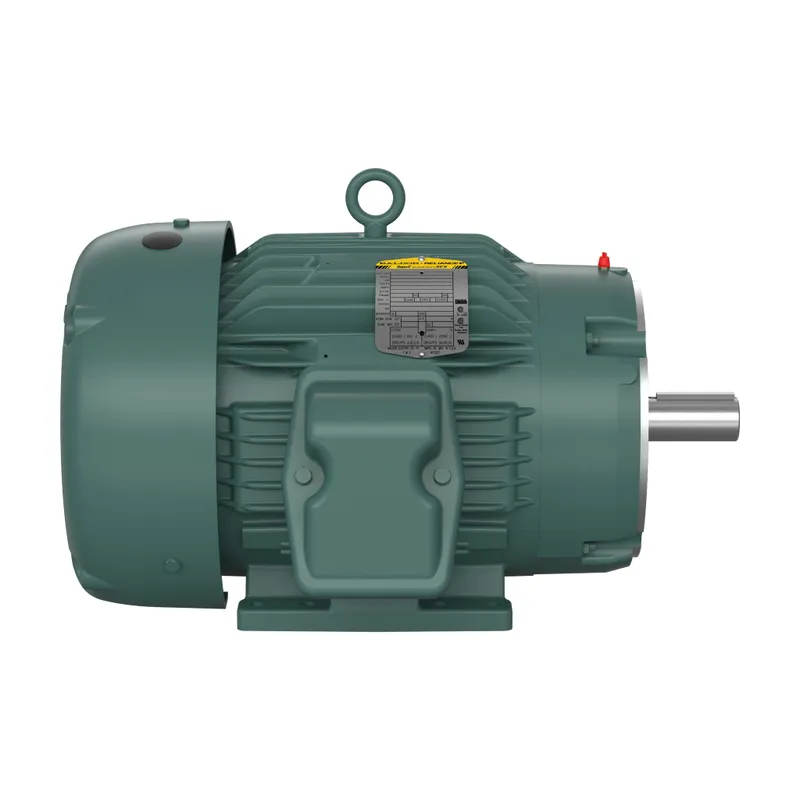

ABB CECP3774T-5

10HP,1760RPM,3PH,60HZ,215TC,0748M,T

MPN
CECP3774T-5
Category
XEX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CECP3774T-5?

Severe Duty Motor 10 Hp 575 V (CECP3774T-5)

Specifications

Ordering

Catalog NumberCECP3774T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency91.70 %
Service Factor1.15
Temperature ClassT3
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group A, B, C & D A
Frame MaterialIron
Motor Frame Size215TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight231 lb
Product Net Width18.125 in
Dimension Diagram07LYK373

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

CECP3774T-5: frequently asked questions

When can CECP3774T-5 be shipped?

CECP3774T-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CECP3774T-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CECP3774T-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CECP3774T-5, subject to availability and destination.
