Home / ABB / XP Drill Rig Duty / ABB CDRX40144T

ABB

ABB CDRX40144T

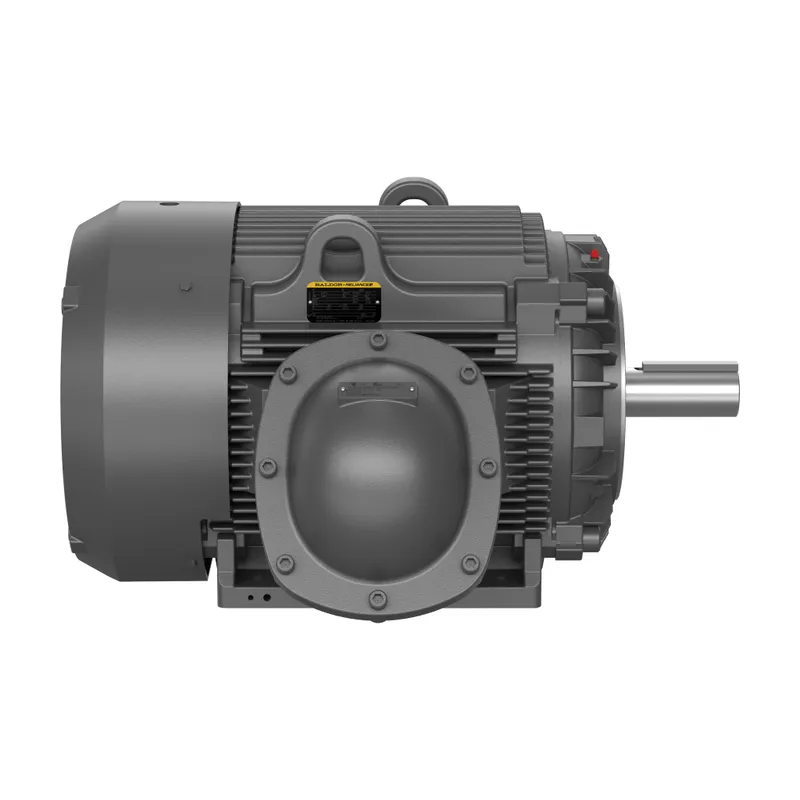

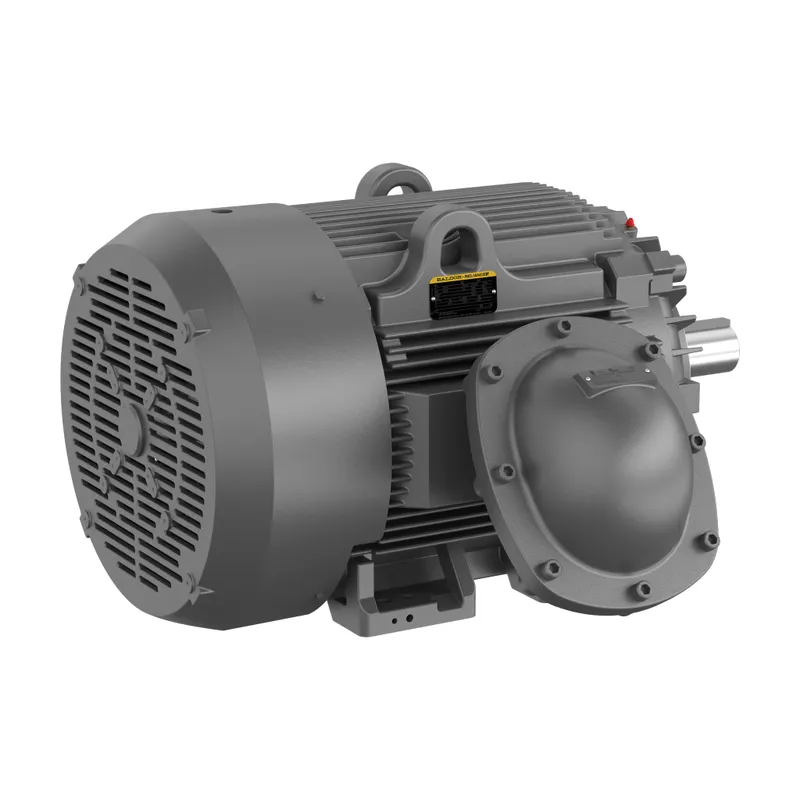

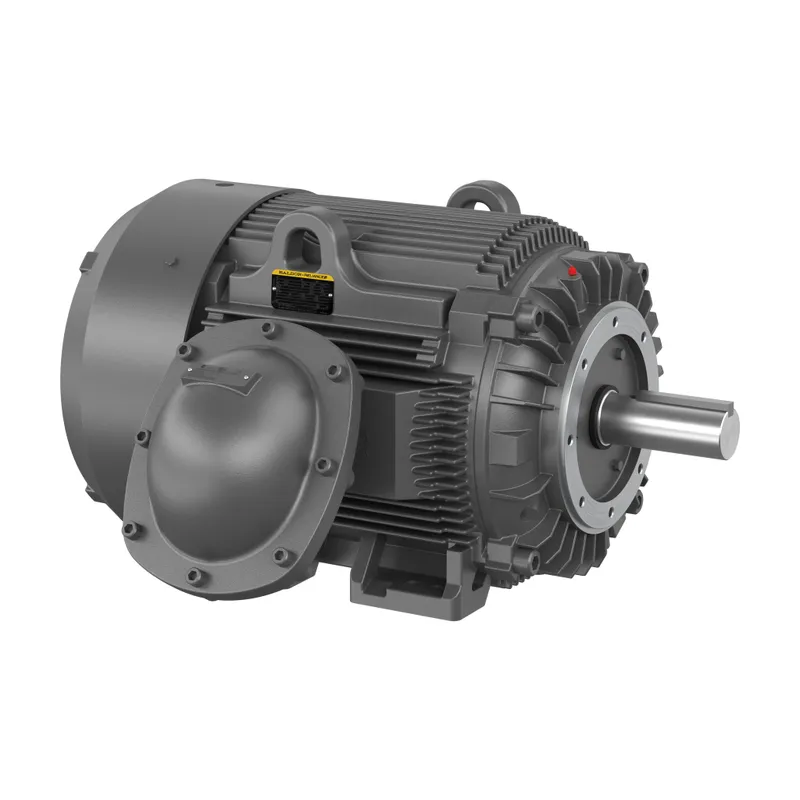

100HP,1785RPM,3PH,60HZ,405TC,TEFC,F

MPN: CDRX40144T
Category: XP Drill Rig Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CDRX40144T?

Explosion Proof Drill Rig Duty 100 Hp 230 V (CDRX40144T)

Specifications

Ordering

Catalog Number	CDRX40144T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	87 %
Rated Efficiency	95.40 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	100 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Iron
Motor Frame Size	405TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	28 in
Product Net Weight	1466.999 lb
Product Net Width	41.5 in
Dimension Diagram	617428-725

Certificates and Declarations

Certification Agency	CCSA US, CSA, CSA EEV, UL
ETIM 7	EC001851 - Electric motor
