Home / ABB / Washdown SCR PM / ABB CDPWD3440

ABB

ABB CDPWD3440

.75HP,1750RPM,DC,56C,3428P,TEFC,F1

MPN: CDPWD3440
Category: Washdown SCR PM

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CDPWD3440?

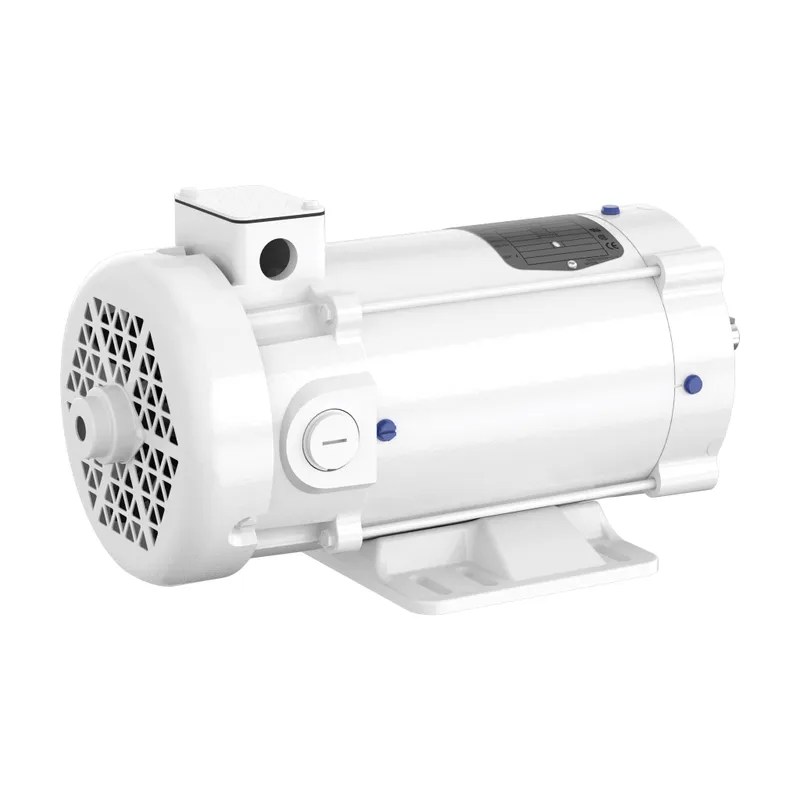

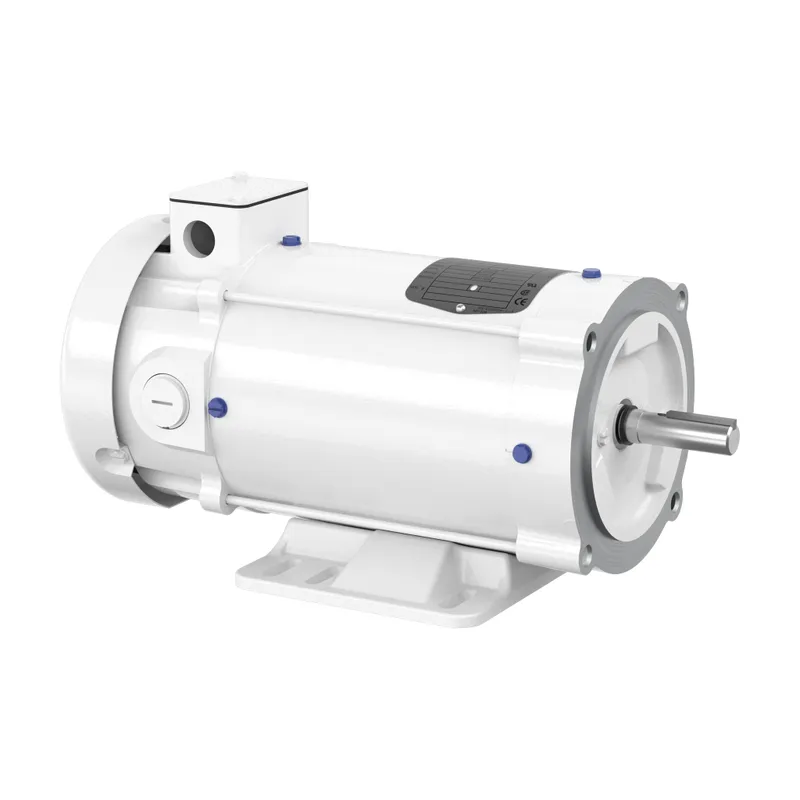

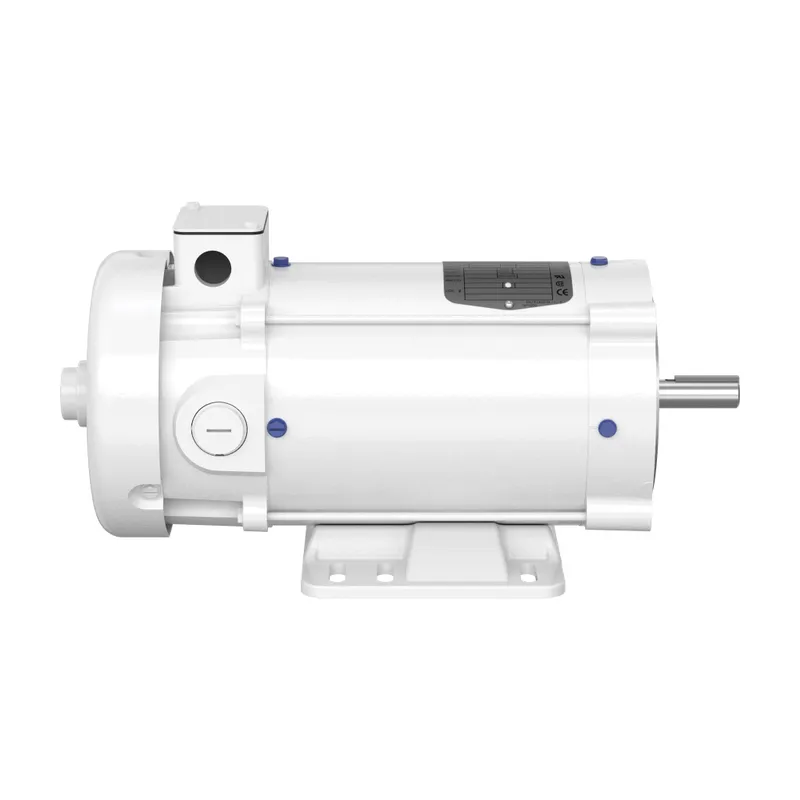

DC PM Washdown 0.75 Hp (CDPWD3440)

Specifications

Ordering

Catalog Number	CDPWD3440
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Type of Duty	Continuous
Output Power	0.75 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	Foot Mounted
Brake Present	No

Dimensions

Product Net Height	11.25 in
Product Net Weight	38 lb
Product Net Width	10.5 in
Dimension Diagram	34LY6418

Certificates and Declarations

Certification Agency	CE, CSA, UR, WEEE
ETIM 7	EC001851 - Electric motor
