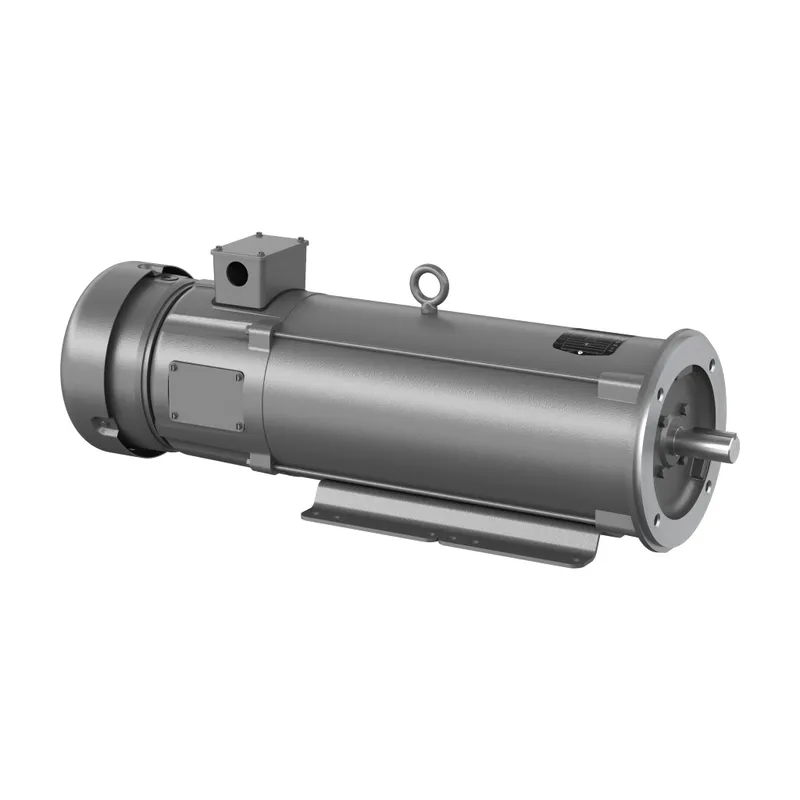

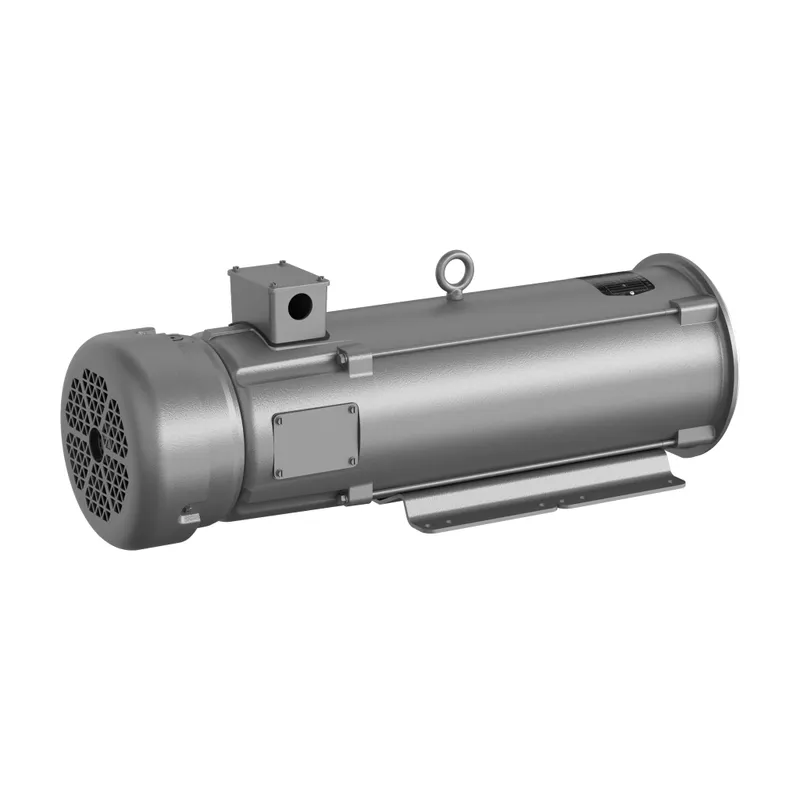

ABB CDPT3605

5HP,1750RPM,DC,1810ATC,3681P,TEFC,F

MPN: CDPT3605

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CDPT3605?

5HP,1750RPM,DC,1810ATC,3681P,TEFC,F1,N

Specifications

Additional Information

ABB Type Designation	5HP,1750RPM,DC,1810ATC,3681P,TEFC,F
Altitude	1000 m m
Ambient Temperature	40 °C
Armature Current	24.5 A A
Armature Inertia	177.06 ft·lbf
Armature Voltage	180 V V
Base Speed	1750 r/min
Bearing	6206, Sealed Bearing
Bearing NDE	6206
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	CDPT3605
Certification Agency	CE, CSA, UR, WEEE
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Direction of Rotation	Both sides
Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Frame Size	1810
Global Commercial Alias	CDPT3605
Gross Volume	13438.538 in³
Gross Weight	164 lb
Horsepower Rating UL/CSA	5.000 Hp
IC Class	TEFC
IE Class Data (50 Hz)	IE Class NA
IE Class Data (60 Hz)	IE Class NA
IM Class	F1
Insulation Class	F
Invoice Description	5HP,1750RPM,DC,1810ATC,3681P,TEFC,F1,N
Lubrication	Regreasable
Made To Order	No
Medium Description	DC Permanent Magnet Standard, 5 HP, 0.000 RPM, Frame Size 1810Atc, TEFC Enclosure, 0.000 V, 0.000 HZ (CDPT3605) V
Minimum Order Quantity	1 piece
Motor Base Type	Foot Mounted
Motor Frame Size	1810ATC
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	5 Hp
Product Name	DC Permanent Magnet Standard
Product Net Depth / Length	40.938 in
Product Net Height	18.625 in
Product Net Weight	164 lb
Product Net Width	17.625 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Replaced Product ID (OLD)	7B36P333Z509
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	1.13 in
Short Description	5 HP, 0.000 RPM, Frame Size 1810Atc, TEFC, 0.000 V V
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class Default	--
Two Speed Motor	No
Type of Duty	Continuous
Voltage Code	180 Va
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
