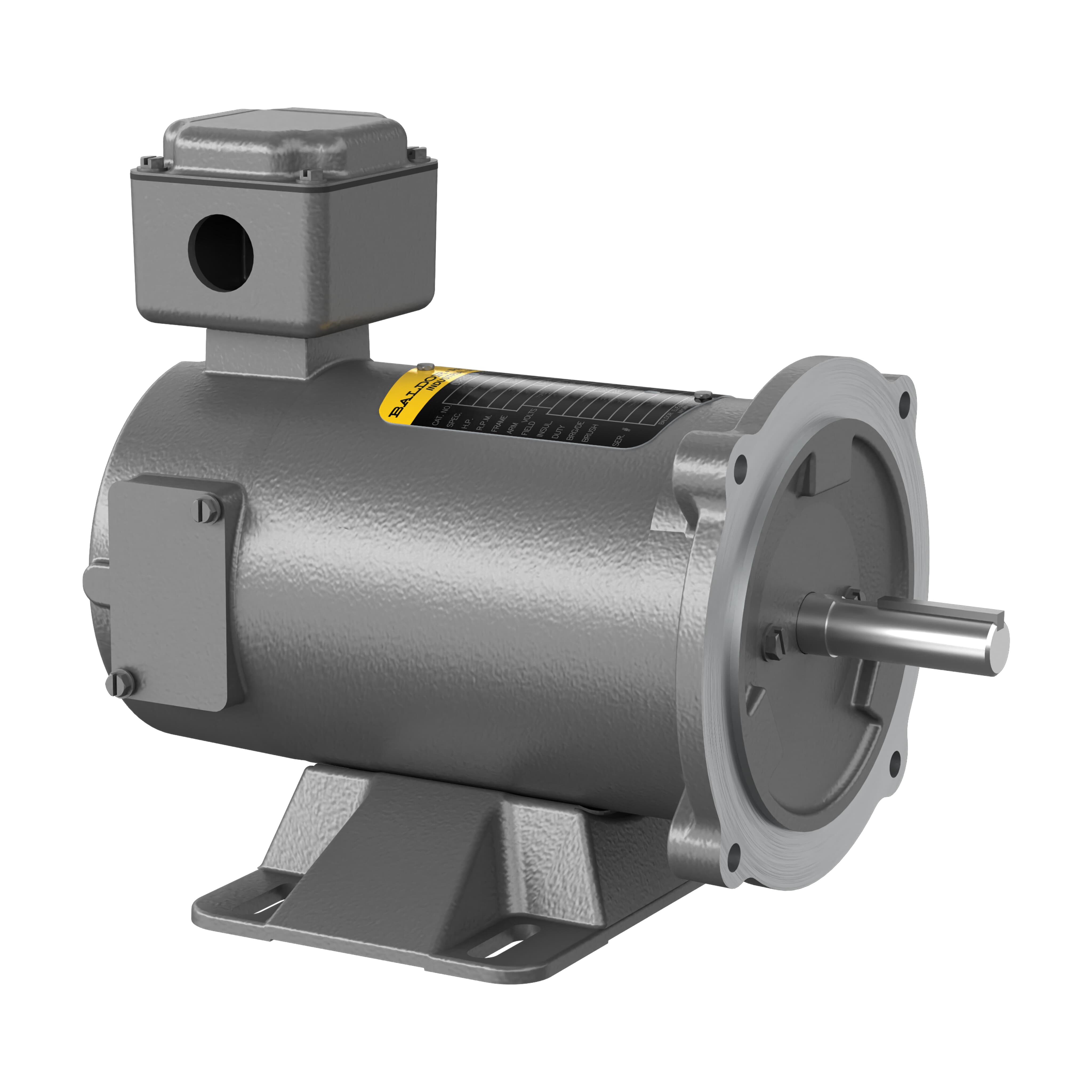

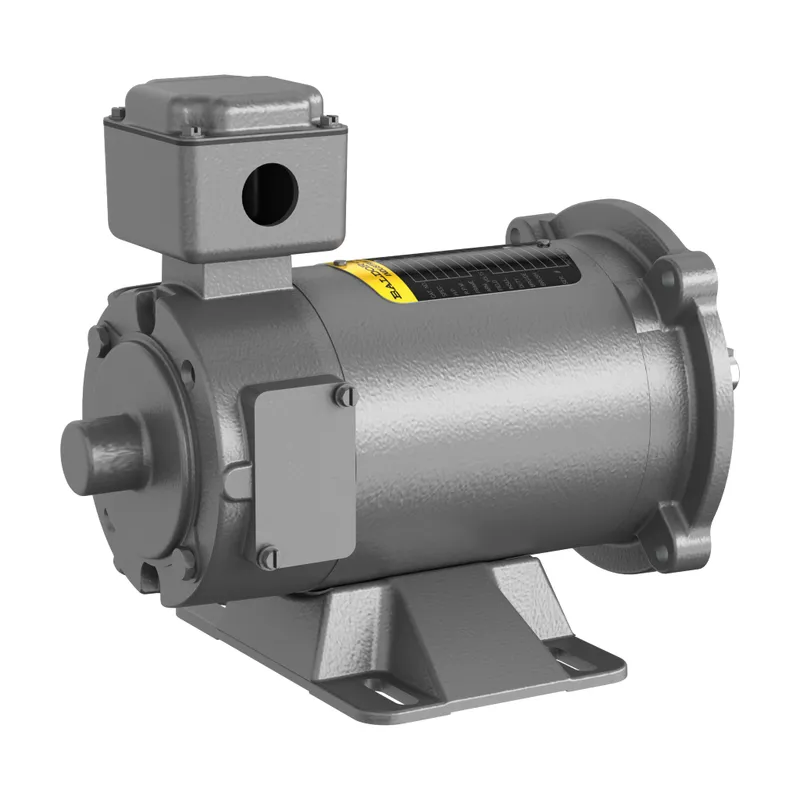

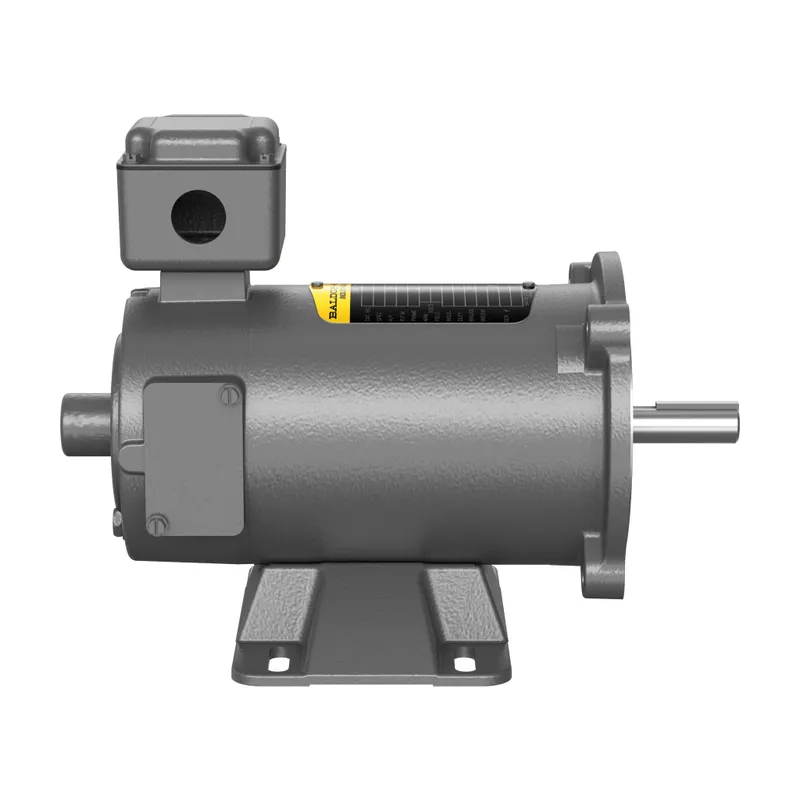

ABB CDP3326

0.5HP,RPM,DC,56C,3336P,TENV,F1,N

MPN: CDP3326

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CDP3326?

0.5HP,RPM,DC,56C,3336P,TENV,F1,N

Specifications

Additional Information

ABB Type Designation	0.5HP,RPM,DC,56C,3336P,TENV,F1,N
Altitude	1000 m m
Ambient Temperature	40 °C
Armature Current	2.5 A A
Armature Inertia	8.42 ft·lbf
Armature Voltage	180 V V
Base Speed	1750 r/min
Bearing	6203, Sealed Bearing
Bearing NDE	6203
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	CDP3326
Certification Agency	CE, CSA, UR, WEEE
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Dimension Diagram	33LY2051
Direction of Rotation	Both sides
Drive End Flange Type	Standard
Enclosure Type	TENV
ETIM 7	EC001851 - Electric motor
Frame Material	Steel
Frame Size	56
Global Commercial Alias	CDP3326
Gross Volume	3496.049 in³
Gross Weight	31 lb
Horsepower Rating UL/CSA	0.500 Hp
IC Class	TENV
IE Class Data (50 Hz)	IE Class NA
IE Class Data (60 Hz)	IE Class NA
IM Class	F1
Insulation Class	F
Invoice Description	0.5HP,RPM,DC,56C,3336P,TENV,F1,N
Lubrication	Regreasable
Made To Order	No
Medium Description	DC Permanent Magnet Standard, .5/.37KW HP, 0.000 RPM, Frame Size 56C, TENV Enclosure, 0.000 V, 0.000 HZ (CDP3326) V
Minimum Order Quantity	1 piece
Motor Base Type	Foot Mounted
Motor Frame Size	56C
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	0.5 Hp
Product Name	DC Permanent Magnet Standard
Product Net Depth / Length	19.375 in
Product Net Height	13.123 in
Product Net Weight	31 lb
Product Net Width	13.75 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Replaced Product ID (OLD)	7B33-2051Z139
RoHS Declaration	RoHS Compliant
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	0.63 in
Short Description	.5/.37KW HP, 0.000 RPM, Frame Size 56C, TENV, 0.000 V V
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class Default	--
Two Speed Motor	No
Type of Duty	Continuous
Voltage Code	180 Va
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
