Home / ABB / XP severe duty / ABB CCPX36746T

ABB

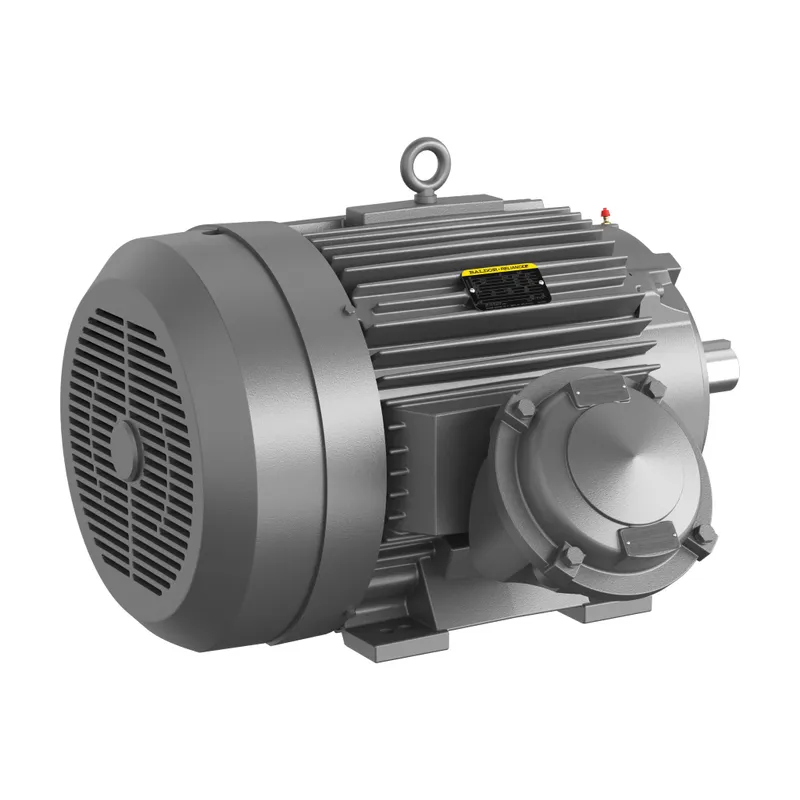

ABB CCPX36746T

75HP,1785RPM,3PH,60HZ,365TC,A36070M

MPN: CCPX36746T
Category: XP severe duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CCPX36746T?

Explosion Proof Severe Duty 75 Hp 230 V (CCPX36746T)

Specifications

Ordering

Catalog Number	CCPX36746T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	95.40 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	75 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group C & D, Class II, Group E, F & G G
Frame Material	Iron
Motor Frame Size	365TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	29.5 in
Product Net Weight	1089.999 lb
Product Net Width	34.5 in
Dimension Diagram	611742-778

Certificates and Declarations

Certification Agency	CCSA US, CSA, CSA EEV, UL
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
