Home / ABB / Submersible / ABB C18G2701

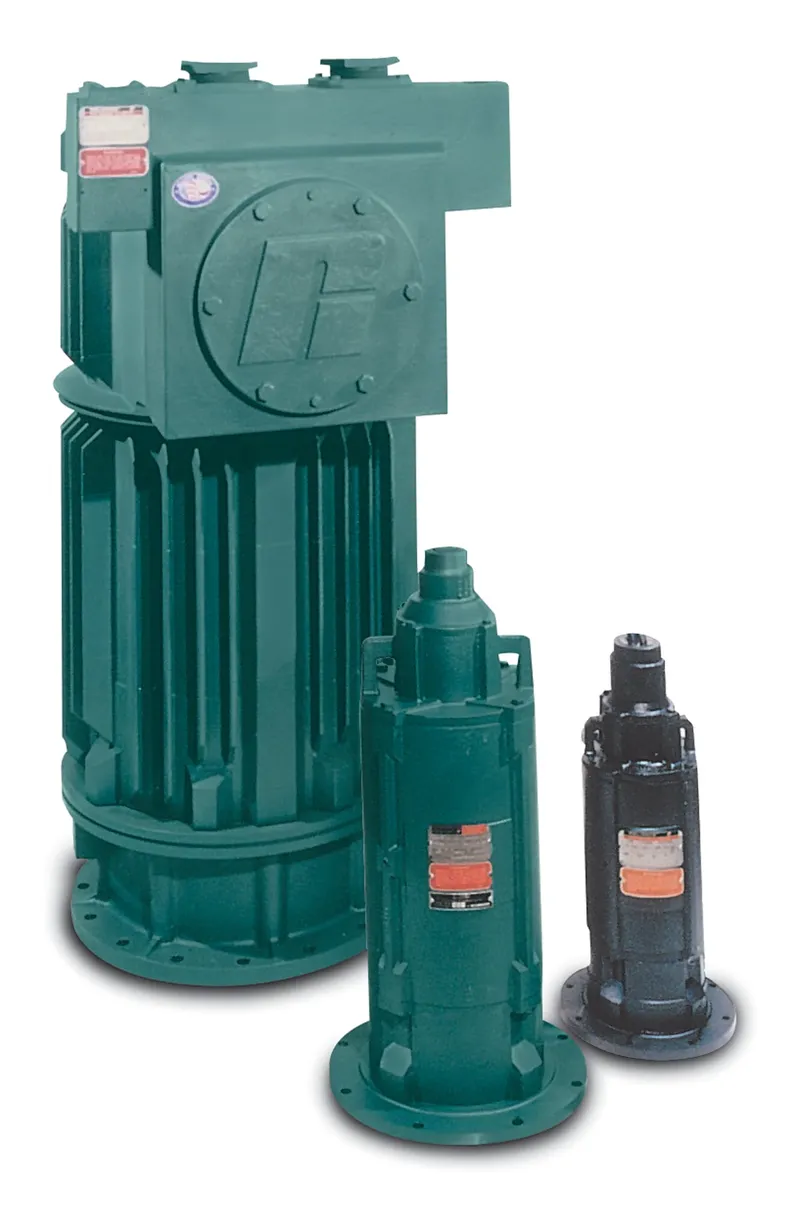

ABB C18G2701

1.5HP,1150RPM,1PH,60HZ,180TY,TEXP,V

MPN: C18G2701
Category: Submersible

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB C18G2701?

Pump Motor 1.5 Hp 115 V (C18G2701)

Specifications

Ordering

Catalog Number	C18G2701
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	6P
Number of Speeds	Single Speed
Service Factor	1.15
Temperature Class	T3C
Type of Duty	15 Minute
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	P-Base
Enclosure Type	XPNV
Explosion Proof Group Class	Class I, Group C & D
Frame Material	Iron
Motor Frame Size	180TY
Motor Base Type	No Mounting
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	256 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CCSA US, CSA, UL
