Home / ABB / Short Series Brake / ABB BM3108

ABB

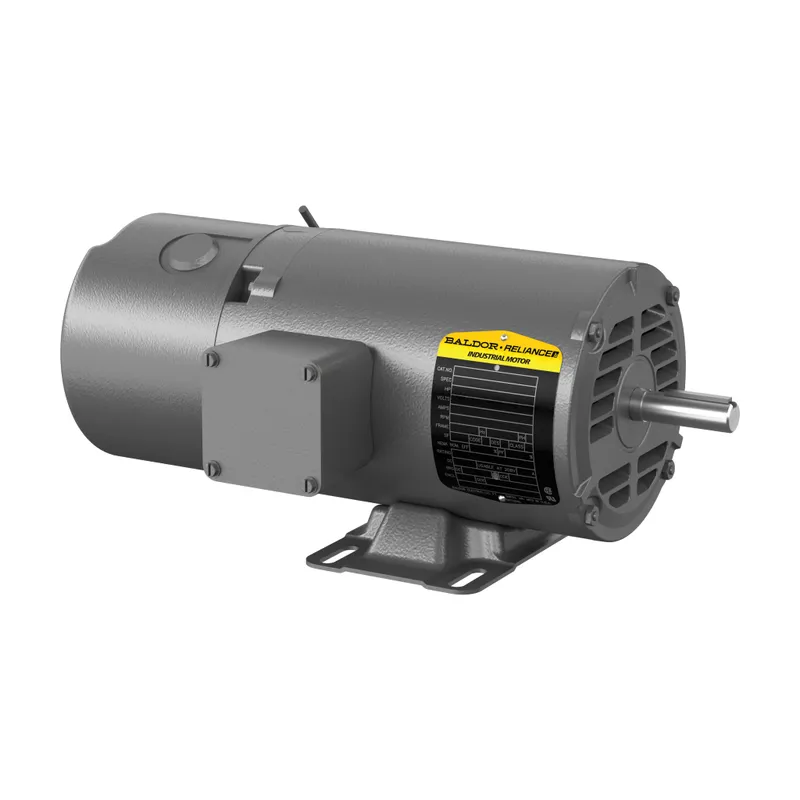

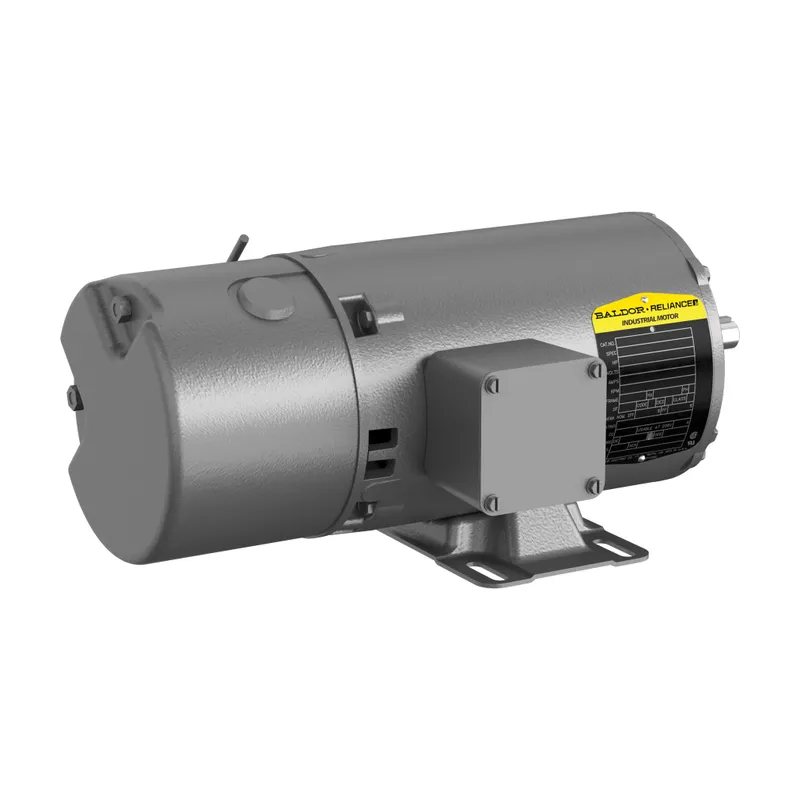

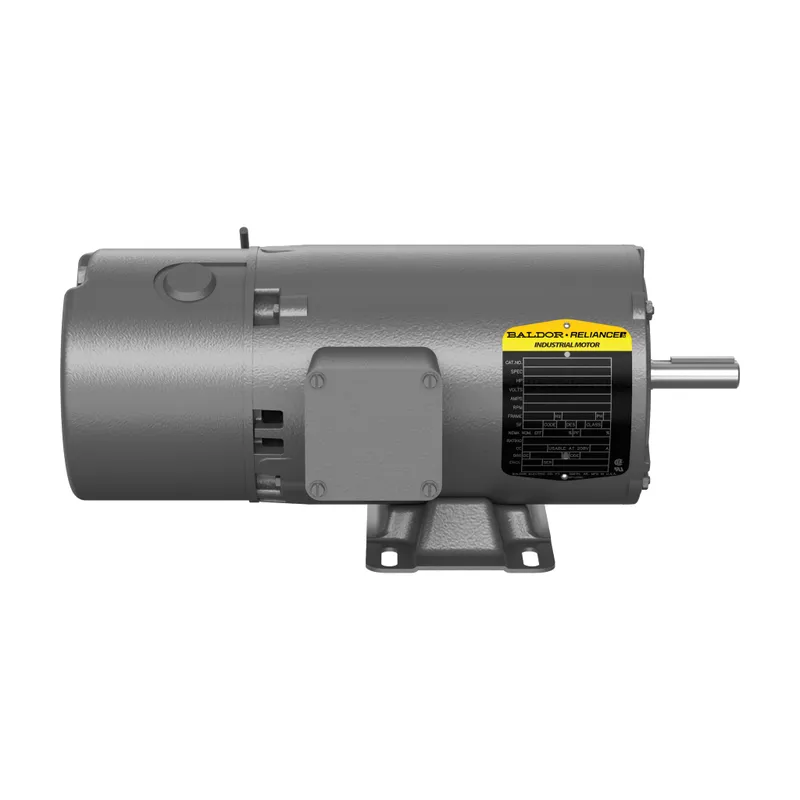

ABB BM3108

.5HP,1725RPM,3PH,60HZ,56,3416M,OPEN

MPN: BM3108
Category: Short Series Brake

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB BM3108?

Unit Handling Motors 0.50 Hp 230 V (BM3108)

Specifications

Ordering

Catalog Number	BM3108
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt, Undefined Efficiency
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	63 %
Rated Efficiency	74 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	11 in
Product Net Weight	27 lb
Product Net Width	10.5 in

Certificates and Declarations

Certification Agency

CSA, UR
