Home / ABB / Auger Drive / ABB ANFL3507M

ABB

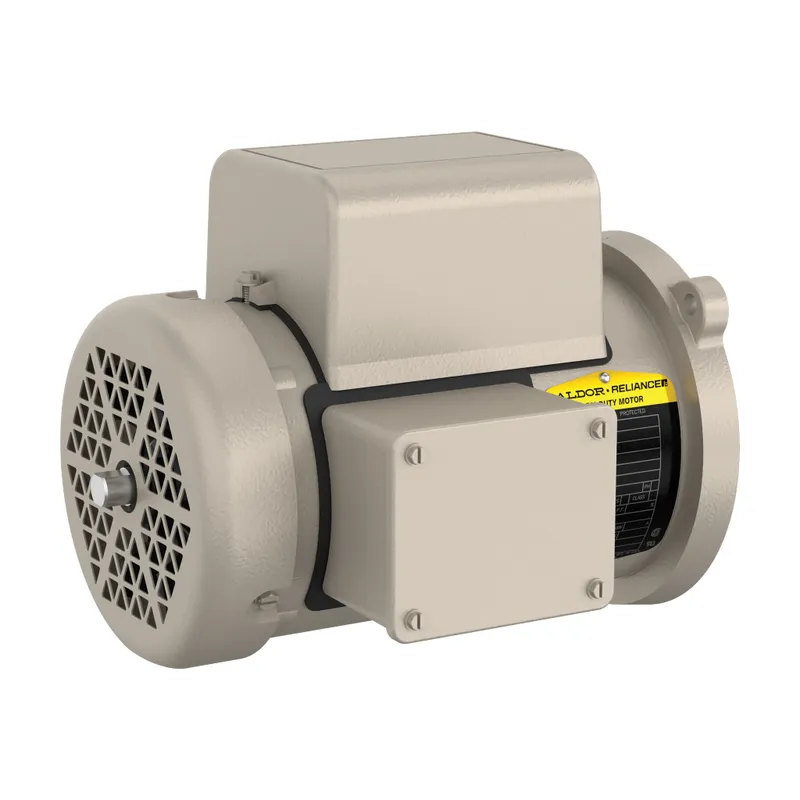

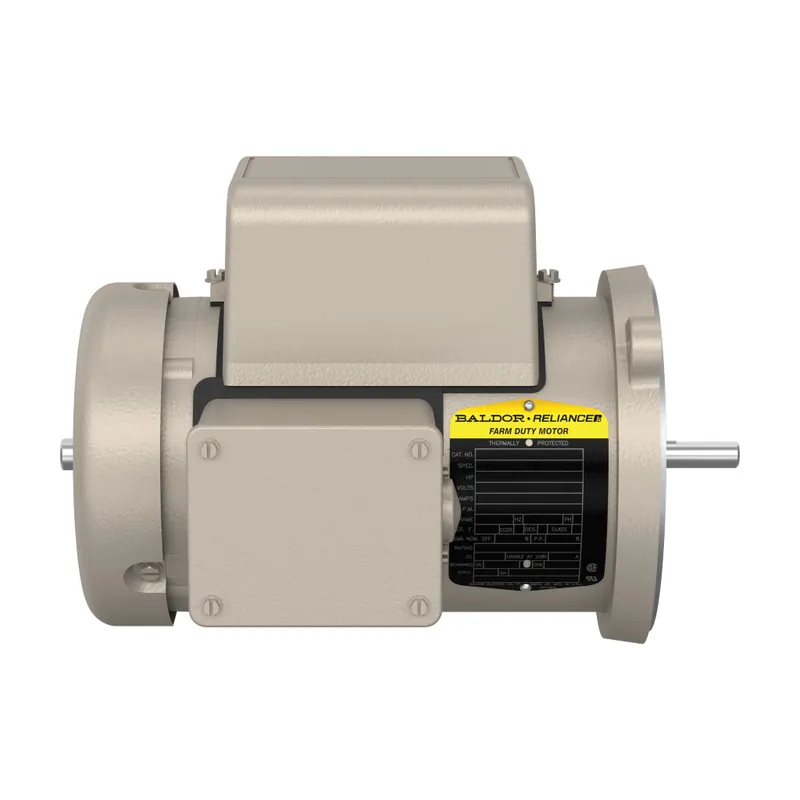

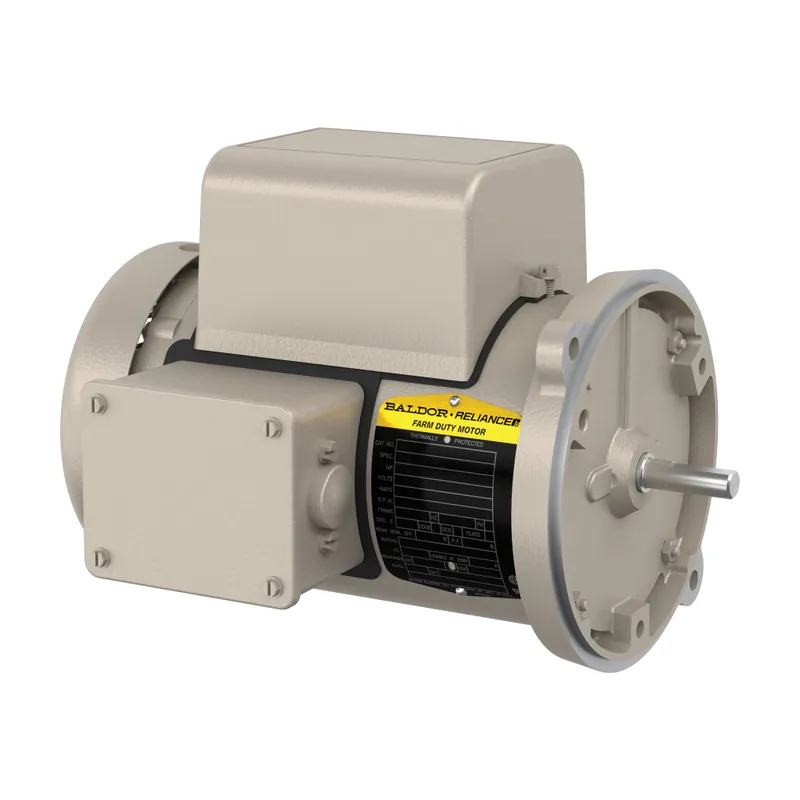

ABB ANFL3507M

.75HP,1725RPM,1PH,60HZ,48YZ,3428LC

MPN: ANFL3507M
Category: Auger Drive

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ANFL3507M?

Farm Duty Motor 0.750.000 Hp 115 V (ANFL3507M)

Specifications

Ordering

Catalog Number	ANFL3507M
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	80 %
Rated Efficiency	74 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	56N
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	48YZ
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	34 lb
Product Net Width	11.5 in
Dimension Diagram	34LYM899

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
