Home / ABB / HVAC General Purpose / ABB AFL3510A

ABB

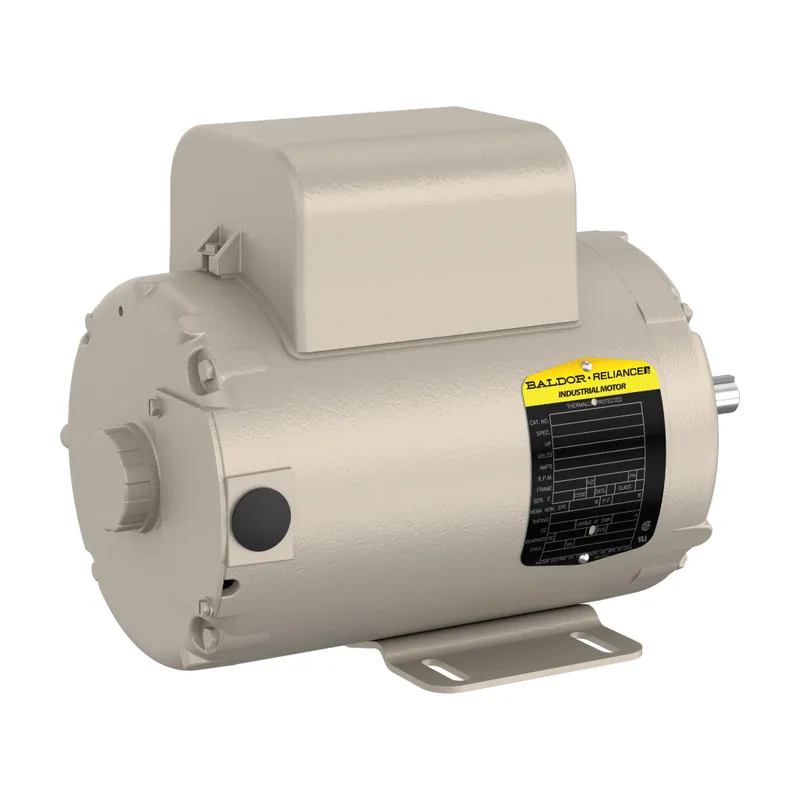

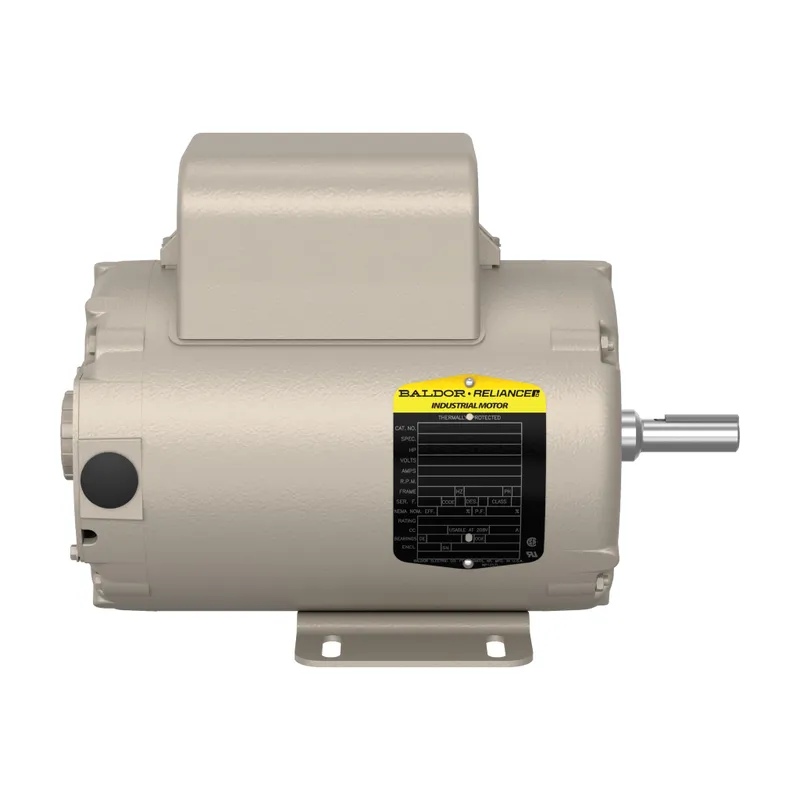

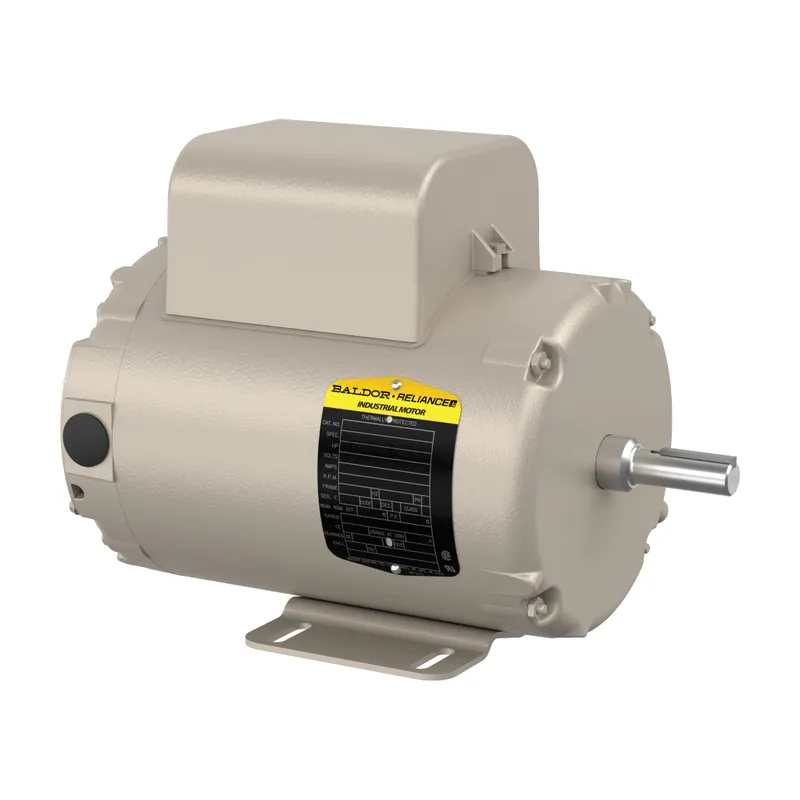

ABB AFL3510A

1HP,1750RPM,1PH,60HZ,56,3528LC,TEAO

MPN: AFL3510A
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB AFL3510A?

Farm Duty Motor 1 Hp 115 V (AFL3510A)

Specifications

Ordering

Catalog Number	AFL3510A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	77 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEAO
Frame Material	Steel
Motor Frame Size	56
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	47 lb
Product Net Width	16.125 in
Dimension Diagram	35LYV331

Certificates and Declarations

Certification Agency	C UR US, UR
ETIM 7	EC001851 - Electric motor
