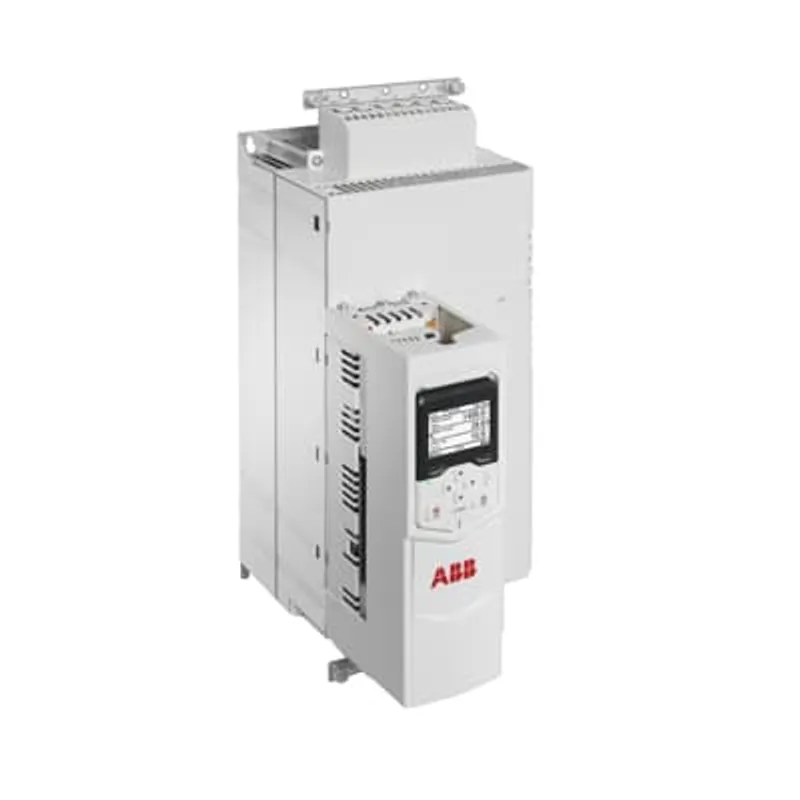

ABB ACS880-M04-094A-2

LV AC machinery drive module, IEC: Pn 22 kW, 94 A, 230 V, UL: Pld 30 Hp, 90 A, 230 V ( )

MPN: ACS880-M04-094A-2
Category: Machinery Drive

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ACS880-M04-094A-2?

LV AC machinery drive module, IEC: Pn 22 kW, 94 A, 230 V, UL: Pld 30 Hp, 90 A, 230 V (ACS880-M04-094A-2)

Specifications

Customs Tariff Number	85044086
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-094A-2 PN: 22 kW, IN: 94 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	21.5 kg, 47.4 lb
Product Net Depth / Length	235 mm, 9.25 in
Product Net Height	744 mm, 29.29 in
Product Net Width	220 mm, 8.66 in
Package Level 1 Depth / Length	700 mm, 27.56 in
Package Level 1 Height	360 mm, 14.17 in
Package Level 1 Width	315 mm, 12.40 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	70 dB(A)
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f)	47.5 ... 63 Hz
Frame Size	R4
Input Voltage (Uin)	200 ... 240 V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	94 A
Output Current, Light-Overload Use (ILD)	90 A
Output Current, Heavy-Duty Use (IHD)	75 A
Output Power, Normal Use (Pn)	22 kW
Output Power, Light-Overload Use (PLD)	22 kW
Output Power, Heavy-Duty Use (PHD)	18.5 kW
Apparent Power Output	37 kV·A
Efficiency Level	IE2
Standby Loss	31 W
Temperature Rating	Maximum 40 °C
Output Current, Heavy-Duty Use (UL)	75 A
Output Current, Light-Overload Use (UL)	90 A
Output Power, Heavy-Duty Use (UL)	25 Hp
Output Power, Light-Overload Use (UL)	30 Hp
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	e05dc895-25c4-4bbc-ac3a-d34066e4fe29 Finland
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC	39122001
