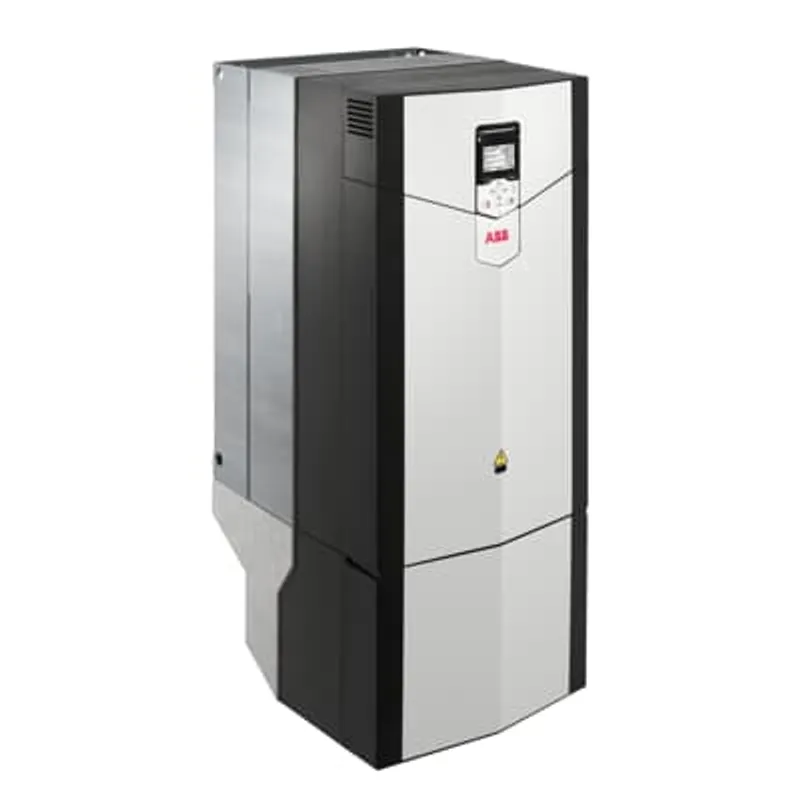

ABB ACS880-01-271A-7
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted single drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 95 kg |
Shipping & availability
When can ACS880-01-271A-7 be shipped?
ACS880-01-271A-7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS880-01-271A-7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS880-01-271A-7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-01-271A-7, subject to availability and destination.
The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS880-01-271A-7 PN: 250 kW, IN: 271 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 95.0 kg, 209.439 lb |
| Product Net Depth / Length | 413 mm, 16.260 in |
| Product Net Height | 955 mm, 37.598 in |
| Product Net Width | 380 mm, 14.961 in |
| Package Level 1 Depth / Length | 1145 mm, 45.08 in |
| Package Level 1 Height | 654 mm, 25.75 in |
| Package Level 1 Width | 485 mm, 19.09 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Sound dB (A) | 70 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R9 |
| Input Voltage (Uin) | 525 ... 690 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 4, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 2 |
| Output Current, Normal Use (In) | 271 A |
| Output Current, Light-Overload Use (ILD) | 257 A |
| Output Current, Heavy-Duty Use (IHD) | 210 A |
| Output Power, Normal Use (Pn) | 250 kW |
| Output Power, Light-Overload Use (PLD) | 250 kW |
| Output Power, Heavy-Duty Use (PHD) | 200 kW |
| Power Consumption (@Pcons) | 4182 W |
| Apparent Power Output | 324 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 145 W |
| Temperature Rating | Maximum 40 °C, Minimum -15 °C |
| Output Current, Heavy-Duty Use (UL) | 242 A |
| Output Current, Light-Overload Use (UL) | 271 A |
| Output Current, Normal Use (UL) | - A |
| Output Power, Heavy-Duty Use (UL) | 250 Hp |
| Output Power, Light-Overload Use (UL) | 250 Hp |
| Declaration of Conformity - CE | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Global Warming Potential GWP Total | Distribution (Module A4) 17 kg CO₂ eq, End of Life (Modules C1-C4) 145 kg CO₂ eq, Installation (Module A5) 33 kg CO₂ eq, Manufacturing (Modules A1-A3) 1092 kg CO₂ eq, Total 41058 kg CO₂ eq, Use (Modules B1-B7) 39771 kg CO₂ eq |
| SCIP | 7ba3bad3-28da-4330-8dae-87801eb7cb5a Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
