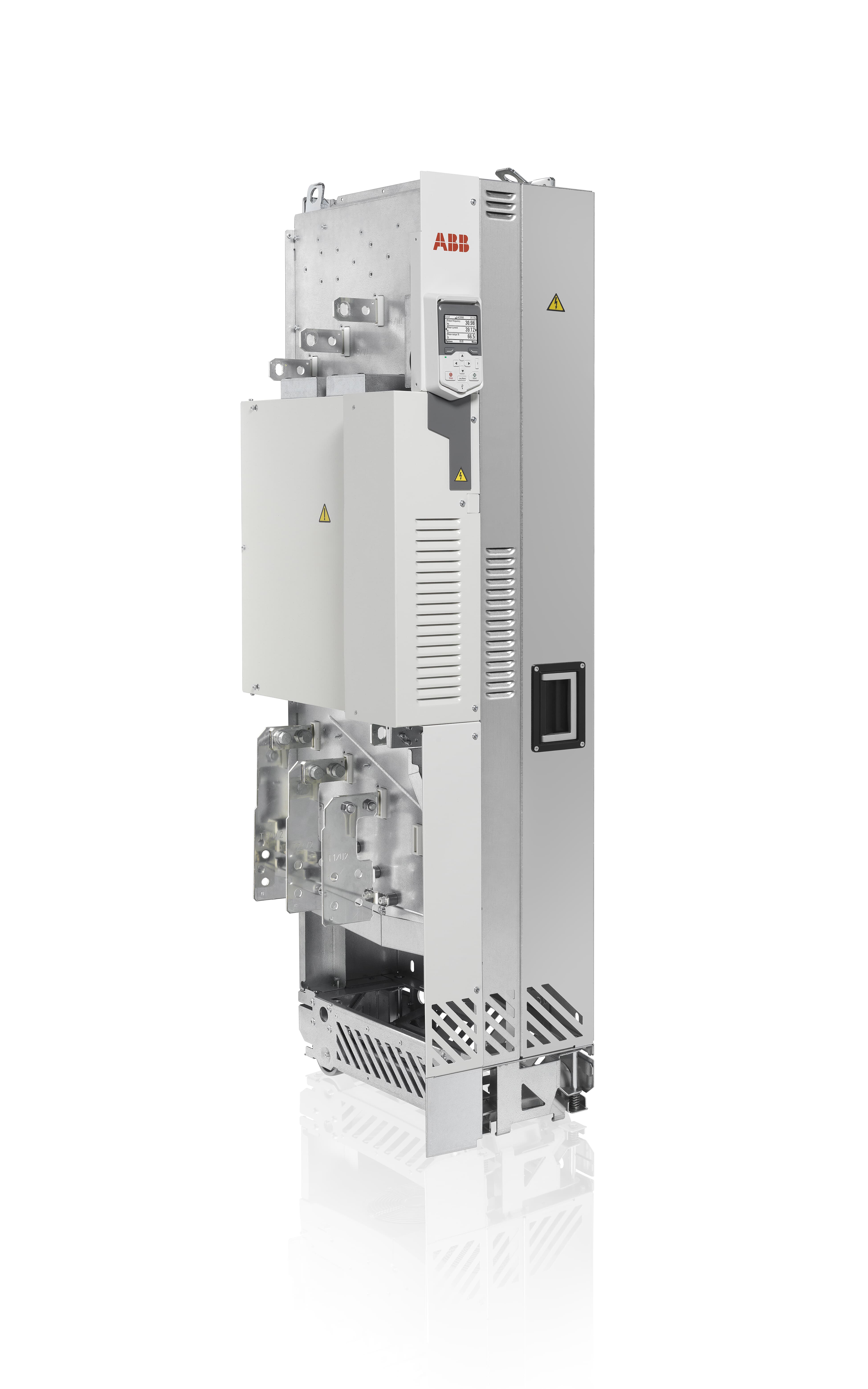

ABB ACS580-04-585A-4

LV AC general purpose drive module, IEC: Pn 315 kW, 585 A ( )

MPN: ACS580-04-585A-4
Category: ACS580-04

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the ABB ACS580-04-585A-4?

The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS580-04-585A-4 PN:315kW, IN:585A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	161 kg kg
Product Net Depth / Length	529 mm mm
Product Net Height	1462 mm mm
Product Net Width	345 mm mm
Package Level 1 Depth / Length	1000 mm mm
Package Level 1 Height	500 mm mm
Package Level 1 Width	400 mm mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP00
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R10
Input Voltage (Uin)	380 … 500 V V
Mounting Type	Module_NO UNIT$
Output Current, Normal Use (In)	585 A A
Output Current, Light-Overload Use (ILD)	575 A A
Output Current, Heavy-Duty Use (IHD)	429 A A
Output Power, Normal Use (Pn)	315 kW kW
Output Power, Light-Overload Use (PLD)	315 kW kW
Output Power, Heavy-Duty Use (PHD)	250 kW kW
Efficiency Level	IE2

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001
