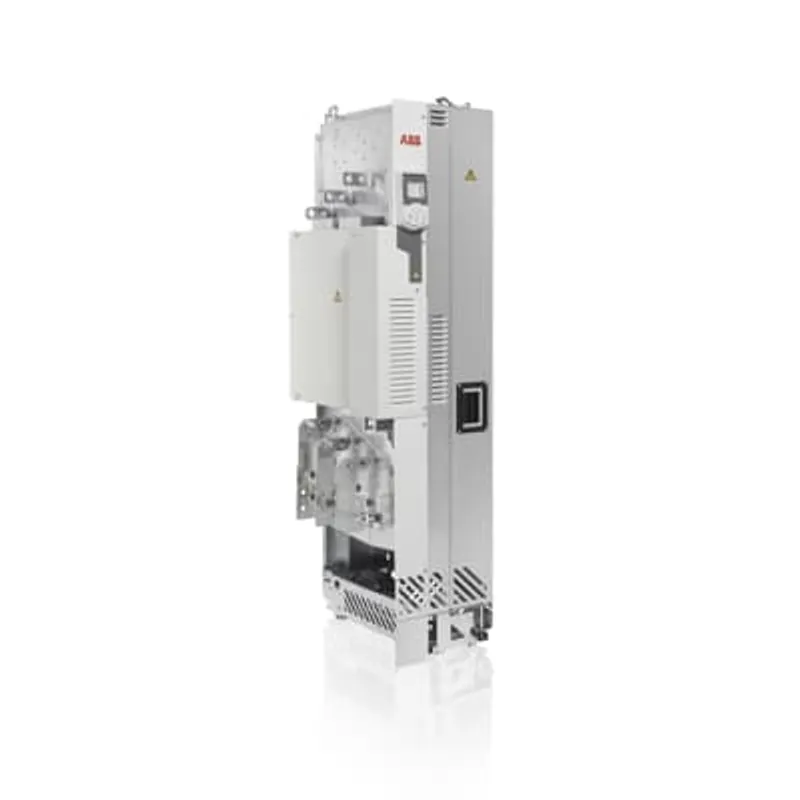

ABB ACS580-04-505A-4
LV AC general purpose drive module, IEC: Pn 250 kW, 505 A, 400 V, UL: Pld 400 Hp, 483 A, 480 V ( )
- MPN
- ACS580-04-505A-4
- Category
- Drive module
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB ACS580-04-505A-4?
The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture.
All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS580-04-505A-4 PN: 250 kW, IN: 505 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 161 kg, 354.945 lb |
| Product Net Depth / Length | 529 mm, 20.827 in |
| Product Net Height | 1462 mm, 57.559 in |
| Product Net Width | 350 mm, 13.780 in |
| Package Level 1 Depth / Length | 2050 mm, 80.71 in |
| Package Level 1 Height | 500 mm, 19.69 in |
| Package Level 1 Width | 650 mm, 25.59 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type |
| Altitude | 1000 m |
| Operating Humidity (RHamb) | 95 |
| Sound dB (A) | 72 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R10 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Module |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 505 A |
| Output Current, Light-Overload Use (ILD) | 485 A |
| Output Current, Heavy-Duty Use (IHD) | 361 A |
| Output Power, Normal Use (Pn) | 250 kW |
| Output Power, Light-Overload Use (PLD) | 250 kW |
| Output Power, Heavy-Duty Use (PHD) | 200 kW |
| Power Consumption (@Pcons) | 6492 W |
| Apparent Power Output | 350 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 423 W |
| Temperature Rating | Maximum 40 °C, Minimum -15 °C |
| Output Current, Heavy-Duty Use (UL) | 361 A |
| Output Current, Light-Overload Use (UL) | 483 A |
| Output Current, Normal Use (UL) | 505 A |
| Output Power, Heavy-Duty Use (UL) | 300 Hp |
| Output Power, Light-Overload Use (UL) | 400 Hp |
| Declaration of Conformity - CE | ACS580, ACH580 and ACQ580 EU DoC |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | ACS580, ACH580 and ACQ580 EU DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 58f22844-2faf-42d0-845e-c7388e32f3e4 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
No matching specifications
ACS580-04-505A-4: frequently asked questions
When can ACS580-04-505A-4 be shipped?
ACS580-04-505A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS580-04-505A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS580-04-505A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS580-04-505A-4, subject to availability and destination.
