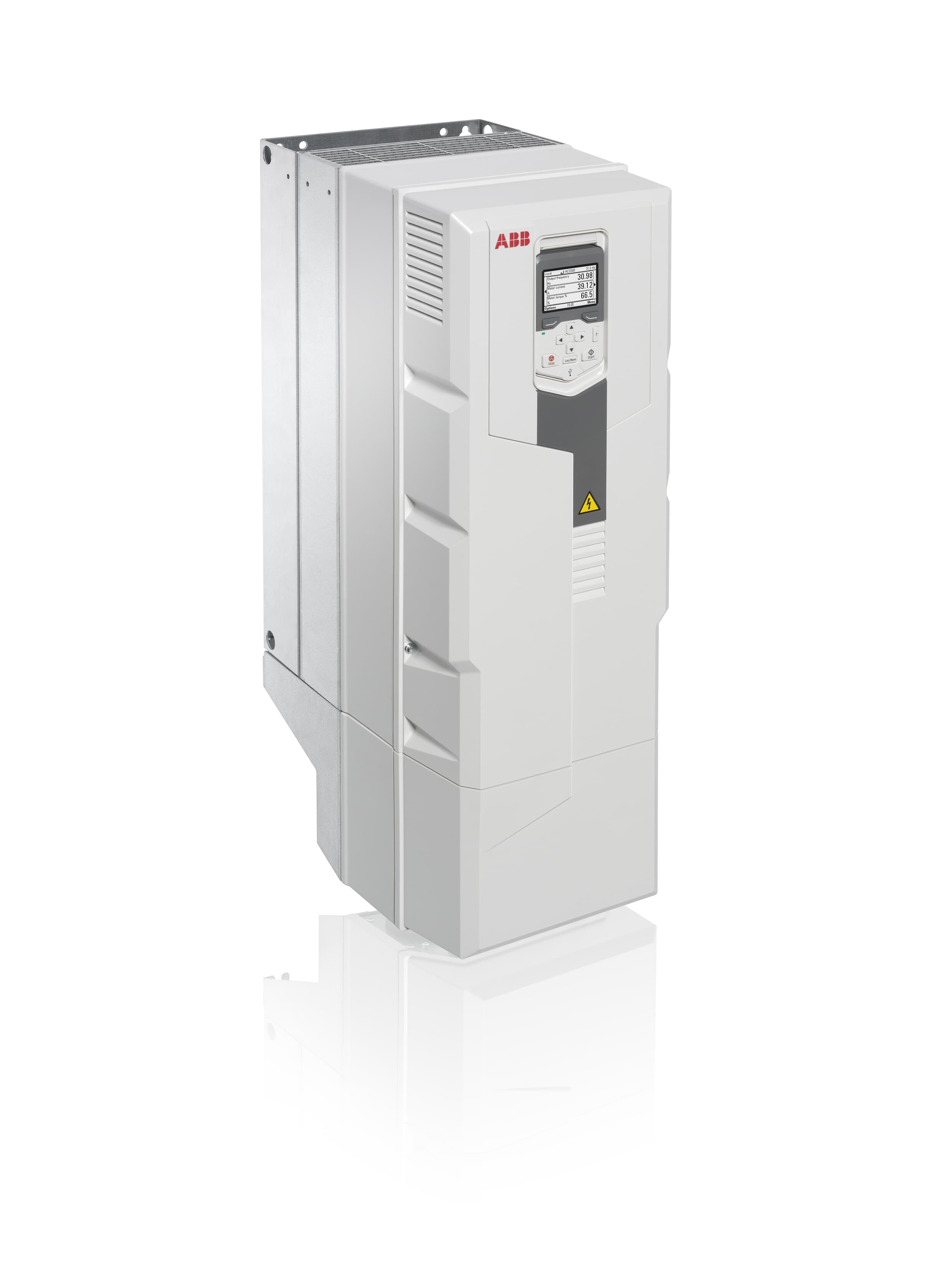

ABB ACS580-01-156A-4+B056

Name: ABB ACS580-01-156A-4+B056
Brand: ABB
SKU: ACS580-01-156A-4+B056

MPN: ACS580-01-156A-4+B056 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ACS580-01
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can ACS580-01-156A-4+B056 be shipped?

ACS580-01-156A-4+B056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS580-01-156A-4+B056 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS580-01-156A-4+B056 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS580-01-156A-4+B056, subject to availability and destination.

The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS580-01-156A-4+B056, PLd 125HP, I2LD 156A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	124 lb
Product Net Depth / Length	16.3 in
Product Net Height	40.86 in
Product Net Width	12.76 in
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP55
Enclosure Type NEMA	Type12
Frequency (f)	47 … 63 Hz Hz
Frame Size	R7
Input Voltage (Uin)	380 … 500 V V
Mounting Type	Wall-mounting
Apparent Power Output	130 kV·A A
Efficiency Level	IE2
Standby Loss	45 W W
Temperature Rating	Maximum 40 °C

Technical UL

Output Current, Heavy-Duty Use (UL)	124 A A
Output Current, Light-Overload Use (UL)	156 A A
Output Power, Heavy-Duty Use (UL)	100 Hp
Output Power, Light-Overload Use (UL)	125 Hp
