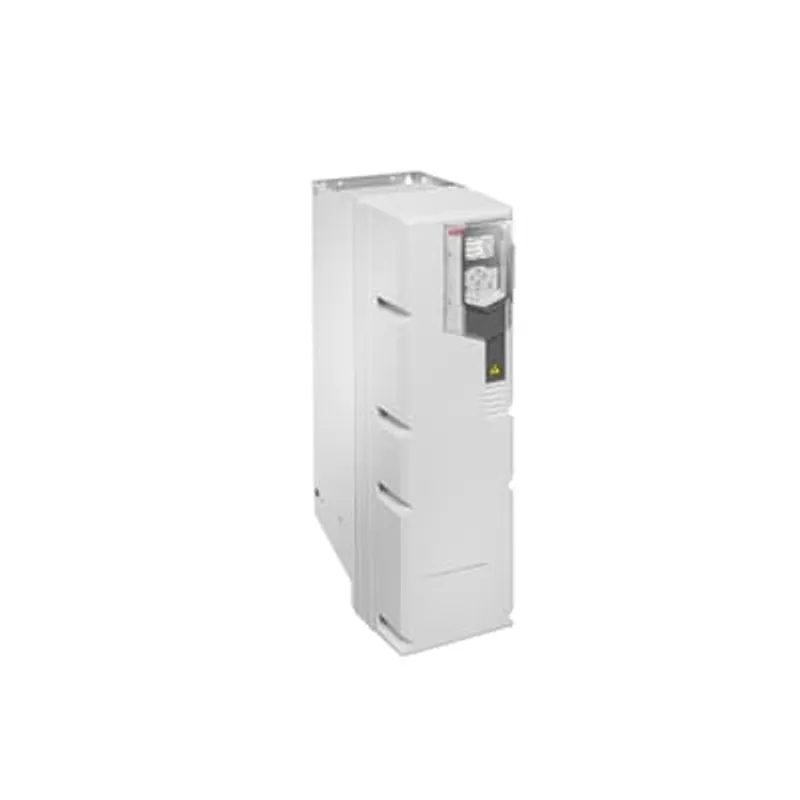

ABB ACS580-01-089A-2+B056
LV AC general purpose wall-mounted drive, IEC: Pn 22 kW, 89 A, 230 V ( )
- MPN
- ACS580-01-089A-2+B056
- Category
- Wall-mounted drive
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB ACS580-01-089A-2+B056?
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 850440 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS580-01-089A-2+B056 PN: 22 kW, IN: 89 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 29 kg, 63.934 lb |
| Product Net Depth / Length | 320 mm, 12.598 in |
| Product Net Height | 732.00 mm, 28.819 in |
| Product Net Width | 203.00 mm, 7.992 in |
| Package Level 1 Depth / Length | 835.00 mm, 32.874 in |
| Package Level 1 Height | 521.00 mm, 20.512 in |
| Package Level 1 Width | 295.00 mm, 11.614 in |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP55 |
| Enclosure Type NEMA | Type12 |
| Operating Humidity (RHamb) | 95 |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 |
| Input Voltage (Uin) | 200 ... 240 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 89 A |
| Output Current, Light-Overload Use (ILD) | 88 A |
| Output Current, Heavy-Duty Use (IHD) | 74.8 A |
| Output Power, Normal Use (Pn) | 22 kW |
| Output Power, Light-Overload Use (PLD) | 22.0 kW |
| Output Power, Heavy-Duty Use (PHD) | 18.5 kW |
| Power Consumption (@Pcons) | 876 W |
| Apparent Power Output | 35 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 19 W |
| Temperature Rating | Maximum 40 °C, Minimum -15 °C |
| Declaration of Conformity - CE | ACS580, ACH580 and ACQ580 EU DoC |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | ACS580, ACH580 and ACQ580 EU DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 567c5ced-c536-4a8b-933d-885c159a15d8 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
No matching specifications
ACS580-01-089A-2+B056: frequently asked questions
When can ACS580-01-089A-2+B056 be shipped?
ACS580-01-089A-2+B056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS580-01-089A-2+B056 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS580-01-089A-2+B056 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS580-01-089A-2+B056, subject to availability and destination.
