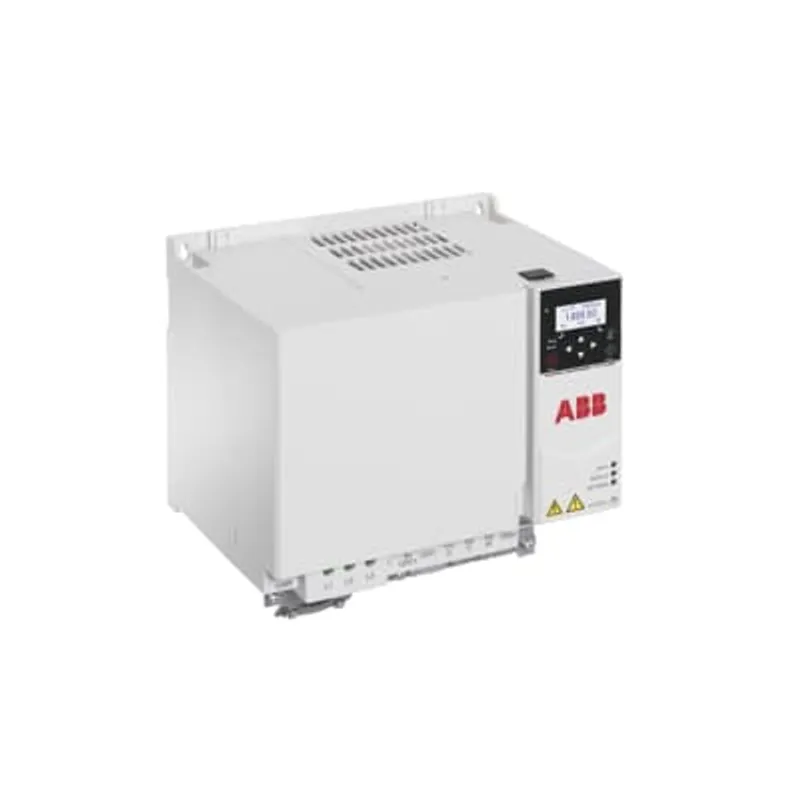

Home / ABB / ACS380-040C-033A-4 +K457+L535 – LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A ( )

Available on request

ABB – ACS380-040C-033A-4 +K457+L535 – LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A ( )

Name: ABB – ACS380-040C-033A-4 +K457+L535 – LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A ( )
Brand: ABB
SKU: ACS380-040C-033A-4+K457+L535

MPN: ACS380-040C-033A-4+K457+L535 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Machinery Drive
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	5.3 kg

Shipping & availability

When can ACS380-040C-033A-4+K457+L535 be shipped?

ACS380-040C-033A-4+K457+L535 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS380-040C-033A-4+K457+L535 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS380-040C-033A-4+K457+L535 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS380-040C-033A-4+K457+L535, subject to availability and destination.

LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A (ACS380-040C-033A-4+K457+L535)

Specifications

Customs Tariff Number	85044099
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS380-040C-033A-4 +K457+L535 PN: 15kW, IN: 33A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	5.3 kg
Product Net Depth / Length	176 mm
Product Net Height	240 mm
Product Net Width	260 mm
Package Level 1 Depth / Length	355 mm
Package Level 1 Height	270 mm
Package Level 1 Width	290 mm
Package Level 1 Units	0 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz
Frame Size	R4
Input Voltage (Uin)	380 ... 480 V
Mounting Type	Module
Output Current, Normal Use (In)	32.0 A
Output Current, Light-Overload Use (ILD)	30.5 A
Output Current, Heavy-Duty Use (IHD)	25.0 A
Output Power, Normal Use (Pn)	15 kW
Output Power, Light-Overload Use (PLD)	15.0 kW
Output Power, Heavy-Duty Use (PHD)	11.0 kW
Efficiency Level	IE2
UNSPSC	39122001
