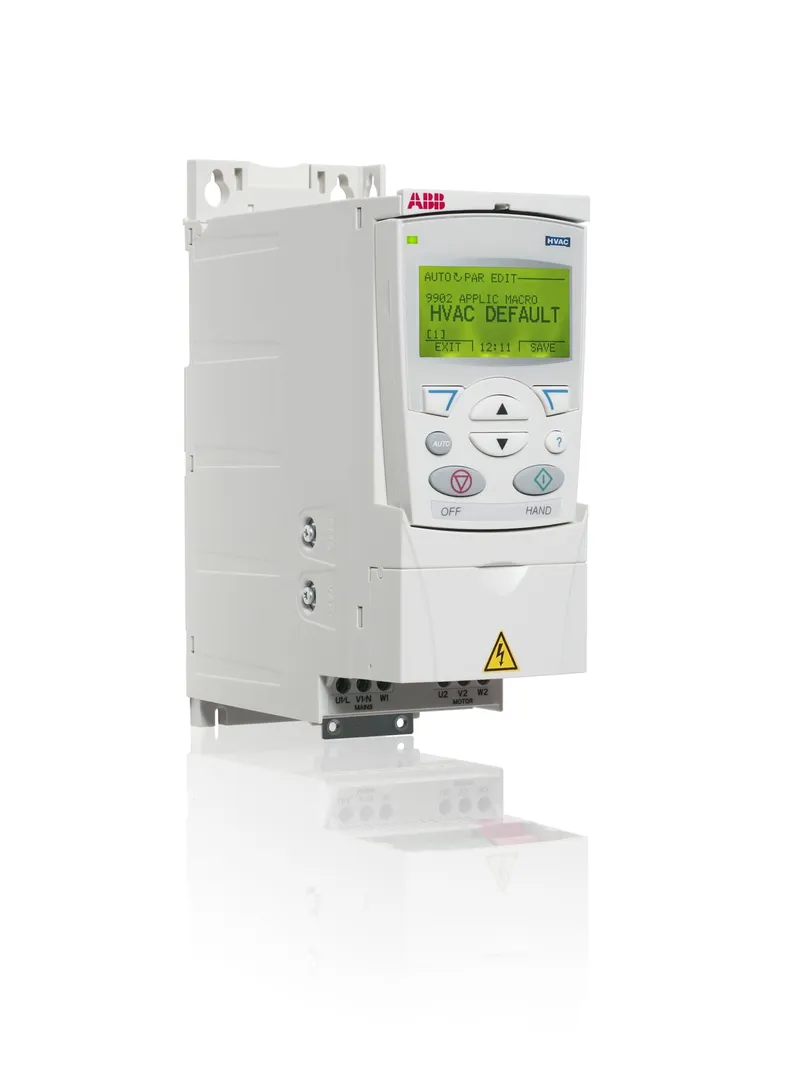

ABB ACS320-03U-38A0-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ACS320 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ACS320-03U-38A0-4 be shipped?
ACS320-03U-38A0-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS320-03U-38A0-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS320-03U-38A0-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS320-03U-38A0-4, subject to availability and destination.
The compact ACS320 will save energy throughout your pump and fan HVAC applications. From booster pumps, exhaust and condenser fans to supply and return fans, the drive’s built-in HVAC features such as embedded BACnet (MS/TP) ensure easy and complete integration into building management systems.
Specifications
Ordering
| Customs Tariff Number | 85044084 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS320-03U-38A0-4, 480VAC, Pn 25HP, I2LD 38 A, N0/IP20 A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 9.7 lb |
| Product Net Depth / Length | 6.65 in |
| Product Net Height | 9.61 in |
| Product Net Width | 10.24 in |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 50/60 Hz Hz |
| Frame Size | R4 |
| Input Voltage (Uin) | 440 … 480 V V |
| Mounting Type | Wall-mounting |
| Apparent Power Output | 32 kV·A A |
| Efficiency Level | IE2 |
| Standby Loss | 14 W W |
| Temperature Rating | 40 °C |
Technical UL
| Output Current, Light-Overload Use (UL) | 61 A A |
| Output Power, Light-Overload Use (UL) | 25 Hp |
Environmental
| SCIP | 8681dddd-c560-4b6e-9399-bb3de753aac5 Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 39122001 |
More ABB parts
Available on requestABB ACS320-03U-23A1-4
Available on requestABB ACS320-03U-26A8-2
Available on requestABB ACS320-03U-31A0-4

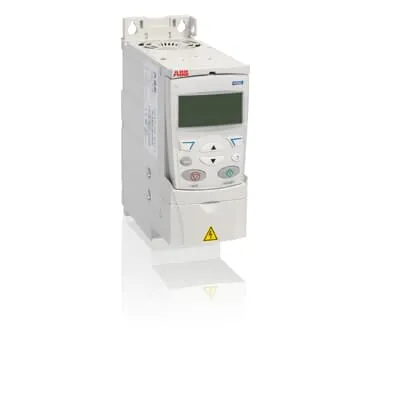

Available on requestABB ACS320-03U-34A1-2
Available on requestABB ACS320-03U-44A0-4
Available on requestABB ACS320-03U-50A8-2
Available on requestABB ACS320-DEMOCASE w/US cord

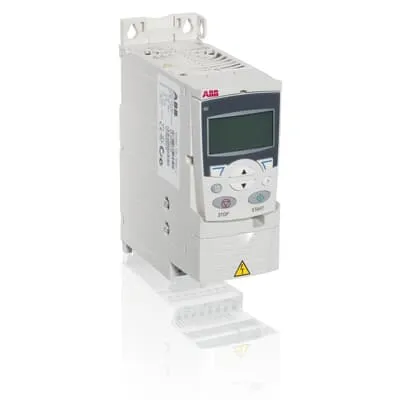

Available on requestABB ACS355-01E-02A4-2
