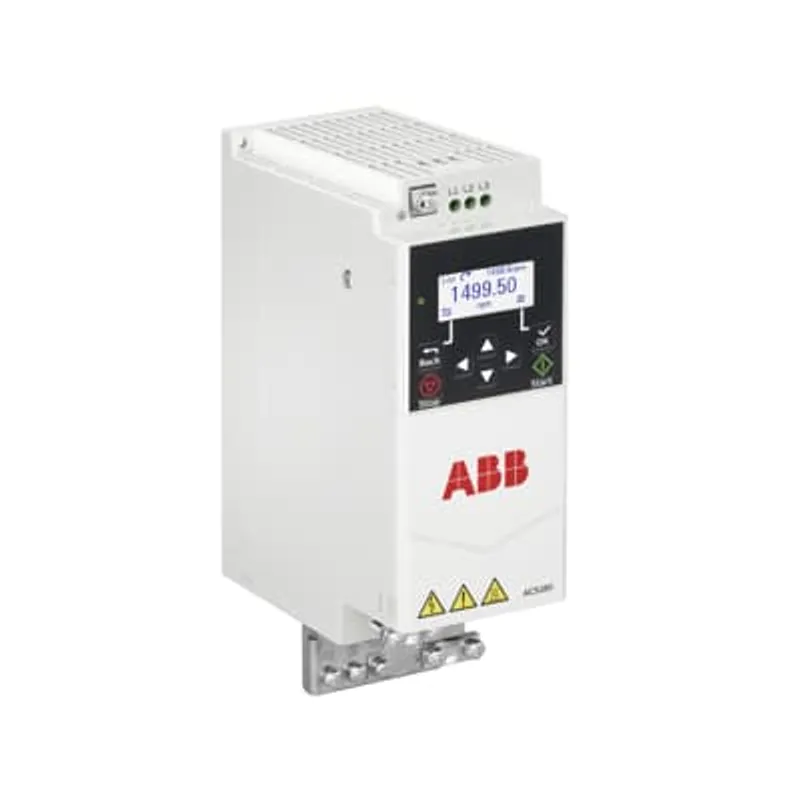

ABB ACS180-04N-07A2-4

LV AC machinery drive module, IEC: Pn 3 kW, 7.2 A, 400 V, UL: Pld 3 Hp, 6.0 A, 460 V ( )

MPN: ACS180-04N-07A2-4
Category: Machinery Drive

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the ABB ACS180-04N-07A2-4?

The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.

This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Specifications

Customs Tariff Number	85044085
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS180-04N-07A2-4 PN: 3.0 kW, IN: 7.2 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	1.24 kg, 2.734 lb
Product Net Depth / Length	143 mm, 5.630 in
Product Net Height	220 mm, 8.661 in
Product Net Width	70 mm, 2.756 in
Package Level 1 Depth / Length	225 mm, 8.858 in
Package Level 1 Height	115 mm, 4.528 in
Package Level 1 Width	220 mm, 8.661 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	2000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	50.9 dB(A)
Multiple Battery Information	No battery / cell included
Frequency (f)	47 ... 63 Hz
Frame Size	R1
Input Voltage (Uin)	380 ... 480 V
Mounting Type	Module
Communication Protocol	MODBUS
Number of Hardware Interfaces	Industrial Ethernet 0, Other 1, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	Control unit, PC connection
Analog Inputs	2
Analog Outputs	1
Number of Digital In/Outputs	4 / 2
Output Current, Normal Use (In)	7.2 A
Output Current, Light-Overload Use (ILD)	6.8 A
Output Current, Heavy-Duty Use (IHD)	5.6 A
Output Power, Normal Use (Pn)	3 kW
Output Power, Light-Overload Use (PLD)	3 kW
Output Power, Heavy-Duty Use (PHD)	2.2 kW
Apparent Power Output	5 kV·A
Efficiency Level	IE2
Standby Loss	9 W
Temperature Rating	Maximum 40 °C
Output Current, Heavy-Duty Use (UL)	4.8 A
Output Current, Light-Overload Use (UL)	6.0 A
Output Power, Heavy-Duty Use (UL)	3 Hp
Output Power, Light-Overload Use (UL)	3 Hp
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20250106
RoHS Declaration	ACS180 EU Declaration of Conformity
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	5d07f008-496e-4abd-8f50-616cb485c791 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
