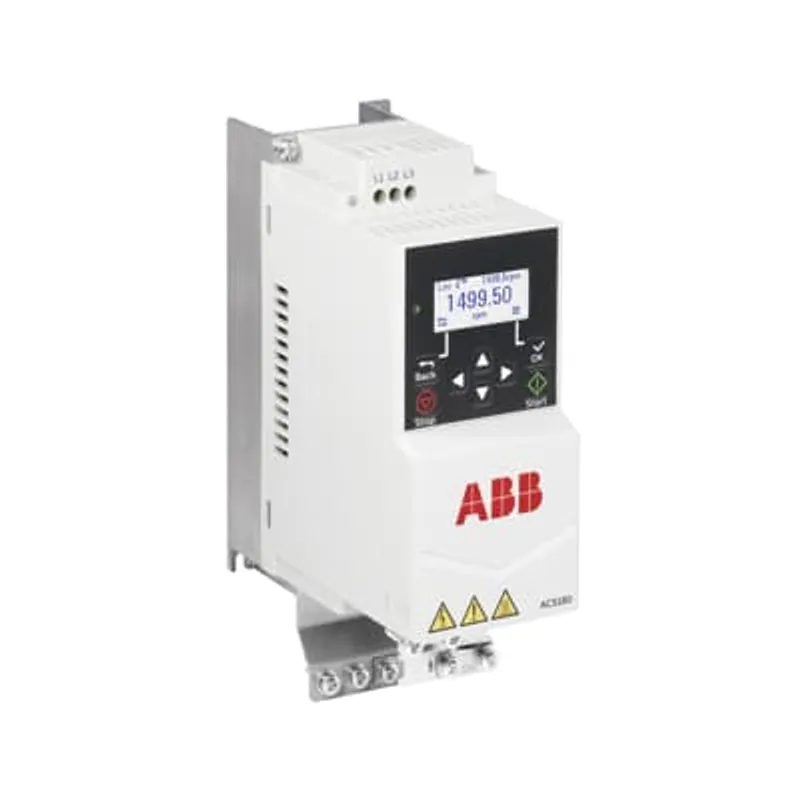

ABB ACS180-04N-03A7-1

LV AC machinery drive module, IEC: Pn 0.55 kW, 3.7 A, 230 V, UL: Pld 0.75 Hp, 3.5 A, 230 V ( )

MPN: ACS180-04N-03A7-1
Category: Machinery Drive

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the ABB ACS180-04N-03A7-1?

The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.

This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Specifications

Customs Tariff Number	85044085
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS180-04N-03A7-1 PN: 0.55 kW, IN: 3.7 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	0.92 kg, 2.028 lb
Product Net Depth / Length	143 mm, 5.630 in
Product Net Height	209 mm, 8.228 in
Product Net Width	70 mm, 2.756 in
Package Level 1 Depth / Length	225 mm, 8.858 in
Package Level 1 Height	115 mm, 4.528 in
Package Level 1 Width	220 mm, 8.661 in
Package Level 1 Units	1 carton
Number of Phases	1-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	2000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	- dB(A)
Multiple Battery Information	No battery / cell included
Frequency (f)	47 ... 63 Hz
Frame Size	R0
Input Voltage (Uin)	200 ... 240 V
Mounting Type	Module
Communication Protocol	MODBUS
Number of Hardware Interfaces	Industrial Ethernet 0, Other 1, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	Control unit, PC connection
Analog Inputs	2
Analog Outputs	1
Number of Digital In/Outputs	4 / 2
Output Current, Normal Use (In)	3.7 A
Output Current, Light-Overload Use (ILD)	3.5 A
Output Current, Heavy-Duty Use (IHD)	2.4 A
Output Power, Normal Use (Pn)	0.55 kW
Output Power, Light-Overload Use (PLD)	0.55 kW
Output Power, Heavy-Duty Use (PHD)	0.37 kW
Apparent Power Output	1.5 kV·A
Output Current, Heavy-Duty Use (UL)	2.4 A
Output Current, Light-Overload Use (UL)	3.5 A
Output Power, Heavy-Duty Use (UL)	0.5 Hp
Output Power, Light-Overload Use (UL)	0.75 Hp
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20250106
RoHS Declaration	ACS180 EU Declaration of Conformity
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	8df33f0d-6fb9-4799-9075-9031a17c1386 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
