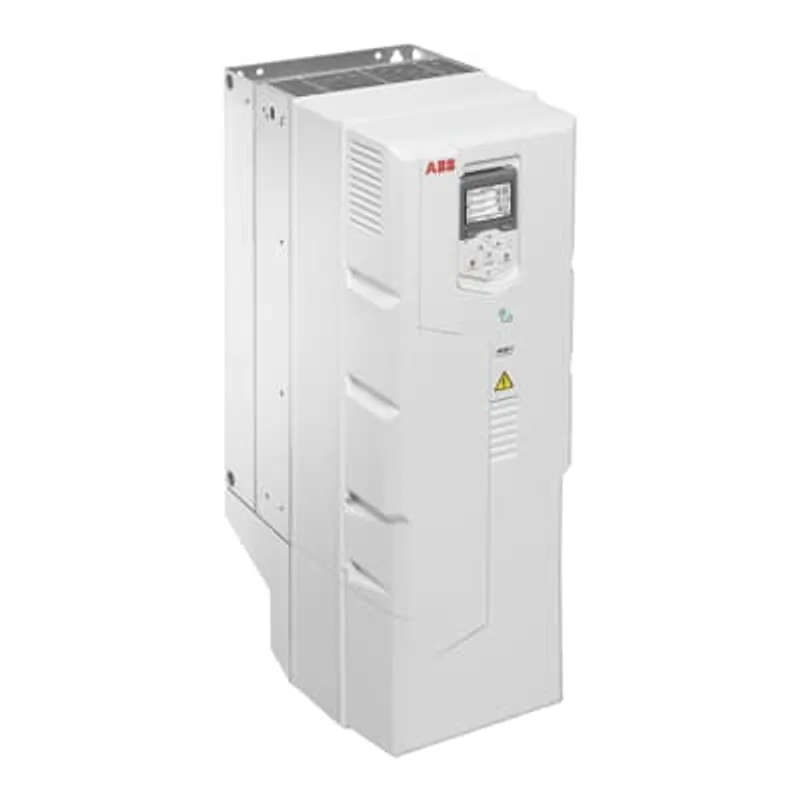

ABB ACQ80-01-075KW-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted drive for solar pump |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 42.4 kg |
Shipping & availability
When can ACQ80-01-075KW-4 be shipped?
ACQ80-01-075KW-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACQ80-01-075KW-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACQ80-01-075KW-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ80-01-075KW-4, subject to availability and destination.
The ACQ80-01 solar pump drive is an innovative solution that uses solar power as a clean energy source for pumping water. This wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, dry run protection and a solution for keeping the impeller of the pump clean, and multiple operation modes to ensure water saving and optimal control of the pumping, based on the need and application. The best in class Maximum Power Point Tracking with cloud detection ensures continuous water pumping, even in low sunlight. The ACQ80-01 drive comes in IP21 enclosure as standard, with IP55 available as an option.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACQ80-01-075KW-4 PN: 75 kW, IN: 145 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 42.4 kg |
| Product Net Depth / Length | 369 mm |
| Product Net Height | 727 mm |
| Product Net Width | 252 mm |
| Package Level 1 Depth / Length | 870 mm |
| Package Level 1 Height | 578 mm |
| Package Level 1 Width | 325 mm |
| Package Level 1 Units | 1 case |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, PROFIBUS, PROFINET IO |
| Number of Hardware Interfaces | RS-485 1 |
| Includes | Control unit, PC connection |
| Output Current, Normal Use (In) | 145 A |
| Output Current, Light-Overload Use (ILD) | 138 A |
| Output Current, Heavy-Duty Use (IHD) | 105 A |
| Output Power, Normal Use (Pn) | 75 kW |
| Output Power, Light-Overload Use (PLD) | 75 kW |
| Output Power, Heavy-Duty Use (PHD) | 55 kW |
| Apparent Power Output | 100 kV·A |
| Declaration of Conformity - CE | EU Declaration of Conformity, Individual ACQ80 |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240603 |
| RoHS Declaration | EU Declaration of Conformity RoHS II 2011/65/EU, ACQ80-01, -04, -07 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 9edb53f7-e453-40da-8ee4-21a530ce7747 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
