Home / ABB / 01 - Wall-mounted drive / ABB ACM510-01V-05A7-4

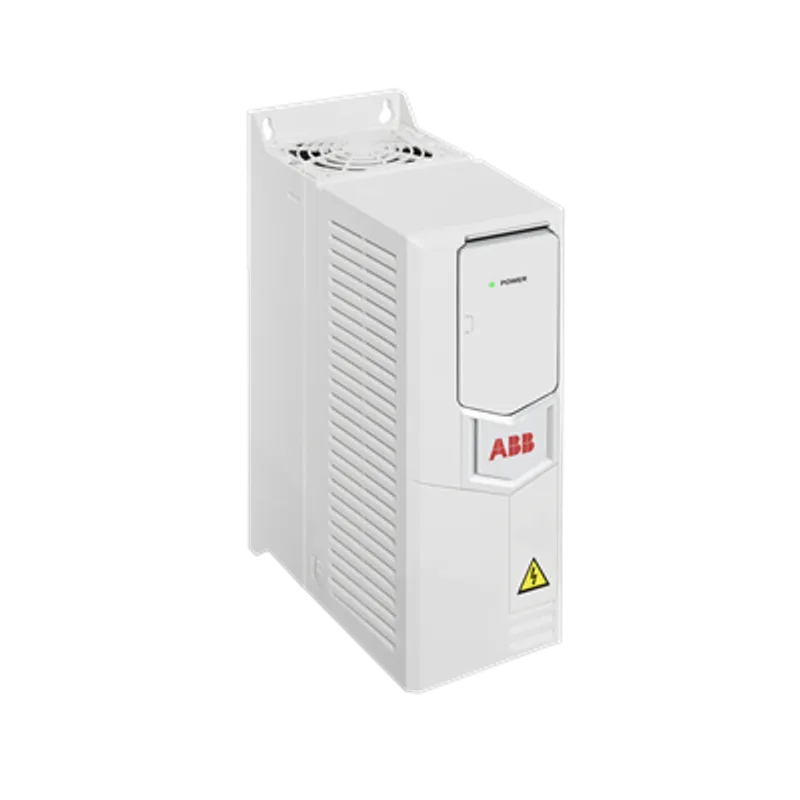

ABB ACM510-01V-05A7-4

01 - Wall-mounted drive

MPN: ACM510-01V-05A7-4
Category: 01 - Wall-mounted drive

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACM510-01V-05A7-4?

ACM510-01V-05A7-4 PN: 2.2kW, IN: 5.6A

Specifications

Customs Tariff Number	85044085
Invoice Description	ACM510-01V-05A7-4 PN: 2.2kW, IN: 5.6A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	4 kg
Product Net Depth / Length	223 mm
Product Net Height	331 mm
Product Net Width	125 mm
Package Level 1 Depth / Length	525 mm
Package Level 1 Height	425 mm
Package Level 1 Width	225 mm
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz
Frame Size	R1
Input Voltage (Uin)	380 ... 480 V
Mounting Type	Wall-mounted
Output Current, Normal Use (In)	5.6 A
Output Current, Light-Overload Use (ILD)	5.3 A
Output Current, Heavy-Duty Use (IHD)	4.0 A
Output Power, Normal Use (Pn)	2.2 kW
Output Power, Light-Overload Use (PLD)	2.2 kW
Output Power, Heavy-Duty Use (PHD)	1.5 kW
Efficiency Level	IE2

ACM510-01V-05A7-4: frequently asked questions

When can ACM510-01V-05A7-4 be shipped?

ACM510-01V-05A7-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACM510-01V-05A7-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACM510-01V-05A7-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACM510-01V-05A7-4, subject to availability and destination.
