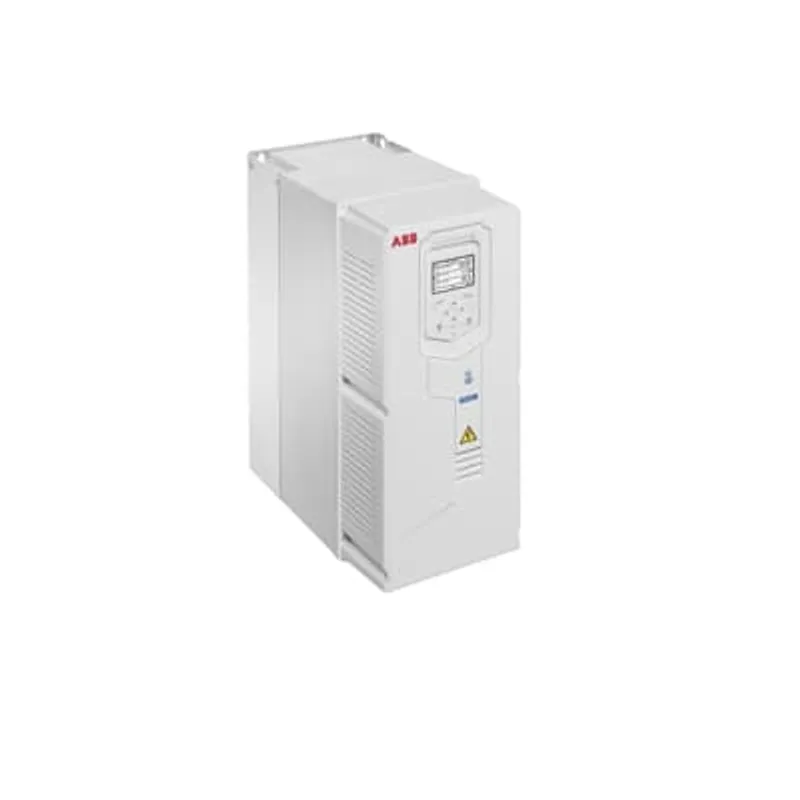

ABB ACH580-31-026A-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Wall-mounted ultra low harmonic drive for HVAC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 21.3 kg |
Shipping & availability
When can ACH580-31-026A-4 be shipped?
ACH580-31-026A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH580-31-026A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH580-31-026A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH580-31-026A-4, subject to availability and destination.
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH580-31-026A-4 PN: 11 kW, IN: 25 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 21.3 kg, 46.959 lb |
| Product Net Depth / Length | 354 mm, 13.937 in |
| Product Net Height | 495 mm, 19.488 in |
| Product Net Width | 205 mm, 8.071 in |
| Package Level 1 Depth / Length | 676 mm, 26.614 in |
| Package Level 1 Height | 423 mm, 16.654 in |
| Package Level 1 Width | 289 mm, 11.378 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Altitude | 4000 m |
| Power Factor | 1.00 |
| Sound dB (A) | 57 dB(A) |
| Multiple Battery Information | Lithium Coin; CR2032; 220 mAh; 3 V; 1 pc; 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 25.0 A |
| Output Current, Light-Overload Use (ILD) | 23.8 A |
| Output Current, Heavy-Duty Use (IHD) | 17.0 A |
| Output Power, Normal Use (Pn) | 11 kW |
| Output Power, Light-Overload Use (PLD) | 11.0 kW |
| Output Power, Heavy-Duty Use (PHD) | 7.5 kW |
| Power Consumption (@Pcons) | 792 W |
| Apparent Power Output | 17 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 36 W |
| Temperature Rating | Maximum 50 °C, Minimum -15 °C |
| Ecodesign Exemption | Energy efficiency data is not provided for the drive. The low-harmonic drives are exempt from the EU ecodesign requirements (Regulation EU/2019/1781, §2.3.d). |
| Output Current, Heavy-Duty Use (UL) | 14 A |
| Output Current, Light-Overload Use (UL) | 23.0 A |
| Output Current, Normal Use (UL) | 23.0 A |
| Output Power, Heavy-Duty Use (UL) | 10 Hp |
| Output Power, Light-Overload Use (UL) | 15 Hp |
| Output Power, Normal Use (UL) | 15 Hp |
| Declaration of Conformity - CE | ACS580, ACH580 and ACQ580 EU DoC |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | ACS580, ACH580 and ACQ580 EU DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a203cde5-2de1-48cb-b0e8-df4a15913519 Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
