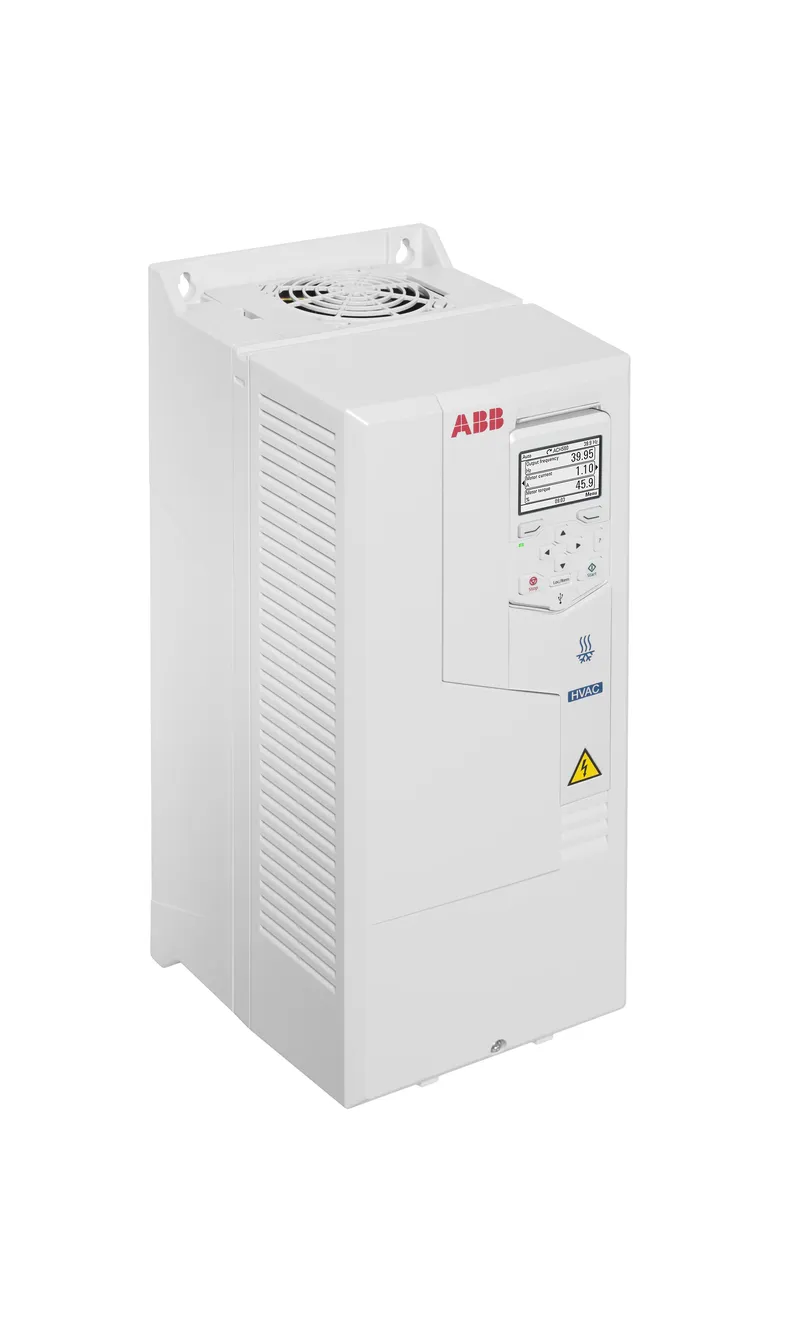

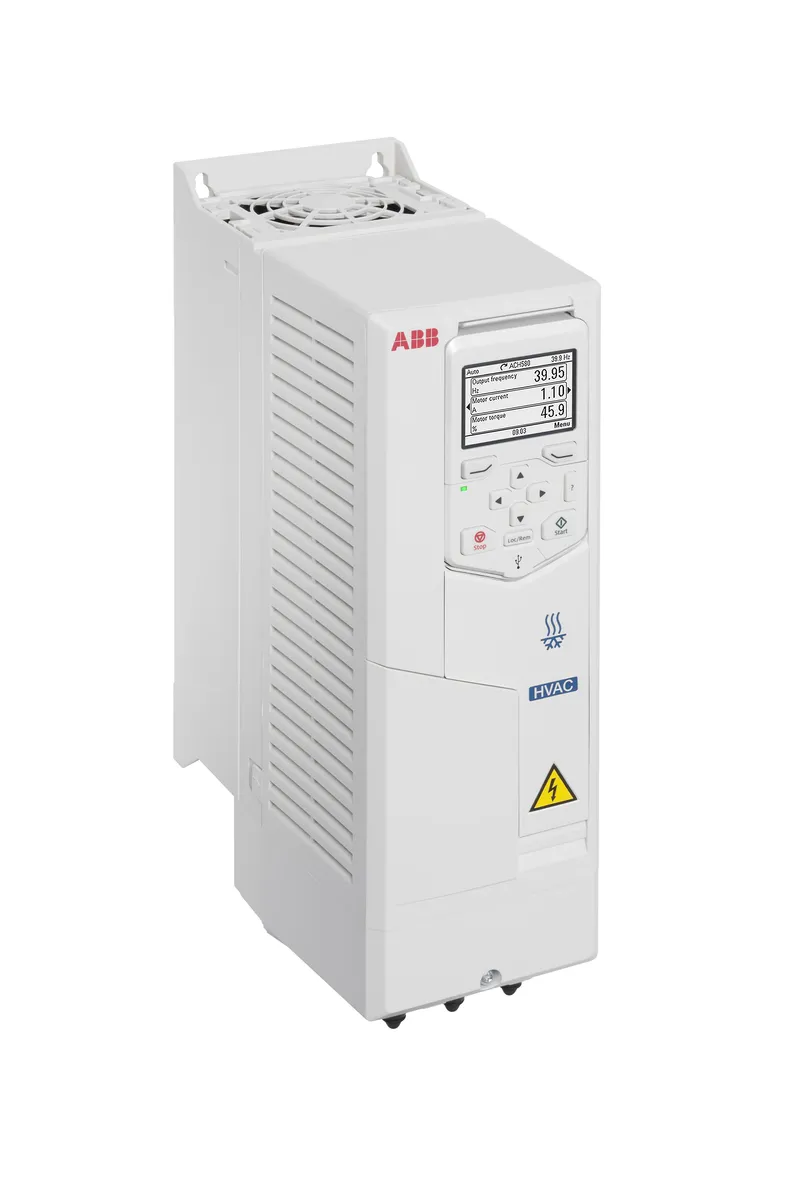

ABB ACH580-01-059A-2+B056

LV AC wall-mounted drive for HVAC, 59.4 A, 208 … 240 V ( )

MPN: ACH580-01-059A-2+B056
Category: ACH580-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACH580-01-059A-2+B056?

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACH580-01-059A-2+B056, 230VAC, Pn 20HP, I2LD 59.4A, N12/IP55
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	29 lb
Product Net Depth / Length	9.32 in
Product Net Height	20.93 in
Product Net Width	8.16 in
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP55
Enclosure Type NEMA	Type12
Frequency (f)	50/60 Hz Hz
Frame Size	R3
Input Voltage (Uin)	208 … 240 V V
Mounting Type	Wall-mounting
Output Current, Normal Use (In)	59.4 A A
Output Power, Light-Overload Use (PLD)	20 Hp
Apparent Power Output	24 kV·A A
Efficiency Level	IE2
Standby Loss	15 W W
Temperature Rating	Maximum 40 °C

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001
