ABB DEL3733TM

7.5HP,1725RPM,1PH,60HZ,215T,3750LC

MPN
DEL3733TM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB DEL3733TM?

Farm Duty Motor 7.5 Hp 230 V (DEL3733TM)

Specifications

Ordering

Catalog NumberDEL3733TM
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature50 °C
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeL
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor98 %
Rated Efficiency85 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power7.5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size215T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.375 in
Product Net Weight162 lb
Product Net Width16.5 in
Dimension Diagram37LYF364

Certificates and Declarations

Certification AgencyCSA, UR
IDEA Granular Category Code (IGCC)1317 >> Farm duty motor AC
ETIM 7EC001851 - Electric motor

DEL3733TM: frequently asked questions

When can DEL3733TM be shipped?

DEL3733TM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DEL3733TM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DEL3733TM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DEL3733TM, subject to availability and destination.

More ABB parts

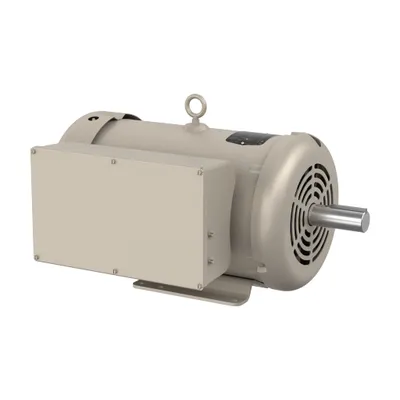

ABB DEL3737TM – 50LC 4P TEFC HOR 215T MTO
