What is the ABB 5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE?

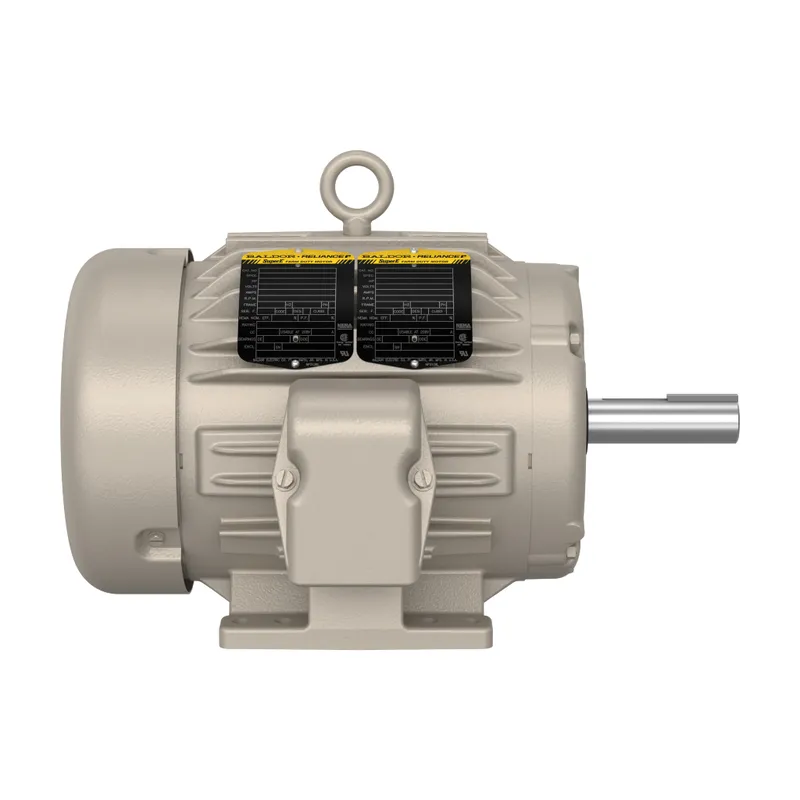

Farm Duty Motor 5 Hp 208 V (EGDM3665T)

Specifications

Ordering

Catalog NumberEGDM3665T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor79 %
Rated Efficiency89.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size184TZ
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight119 lb
Product Net Width16.125 in
Dimension Diagram06LYK575

Certificates and Declarations

Certification AgencyCSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1317 >> Farm duty motor AC
ETIM 7EC001851 - Electric motor

5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE: frequently asked questions

When can 5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE be shipped?

5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE, subject to availability and destination.

More ABB parts

ABB 58985066 – FILTER CAPACITOR 2 X 2,2NF
ABB
58985066

FILTER CAPACITOR 2 X 2,2NF

ABB 59023373 – FAN W2E 143-AA 15-01
ABB
59023373

FAN W2E 143-AA 15-01

ABB 5PWST – FLAT WASHER(10PCS/BAG)
ABB
5PWST

FLAT WASHER(10PCS/BAG)

ABB 5PWUC – WASHER(100PCS/BAG)
ABB
5PWUC

WASHER(100PCS/BAG)

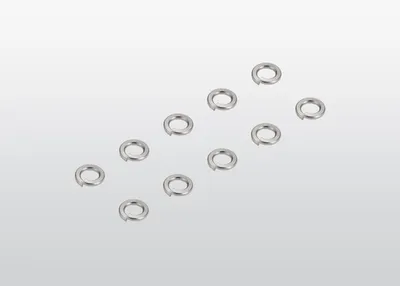

ABB 5SWST – SPRING WASHER
