ABB SPM30011

.5HP,1140RPM,3PH,60HZ,48,3436M,OPEN

MPN
SPM30011
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB SPM30011?

General Purpose Motor 0.5 Hp 230 V (SPM30011)

Specifications

Ordering

Catalog NumberSPM30011
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency Level2015 Small Motor Standard, IE4
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of Speedssingle_speed
Power Factor61 %
Rated Efficiency78.50 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1200 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size48
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight40 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyC UR US, WEEE

SPM30011: frequently asked questions

When can SPM30011 be shipped?

SPM30011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPM30011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPM30011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPM30011, subject to availability and destination.

More ABB parts

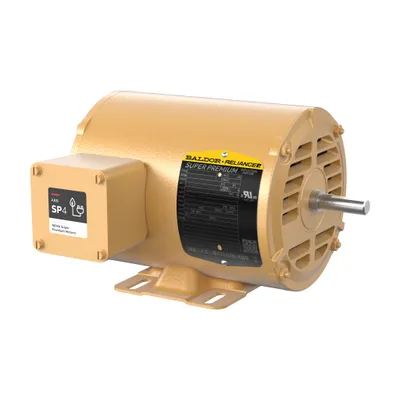

ABB SPM30007 – .333HP,1740RPM,3PH,60HZ,48,3416M,OP
ABB
SPM30007

.333HP,1740RPM,3PH,60HZ,48,3416M,OP

ABB SPM30008 – .33HP,1140RPM,3PH,60HZ,48,3421M,OPE
ABB
SPM30008

.33HP,1140RPM,3PH,60HZ,48,3421M,OPE

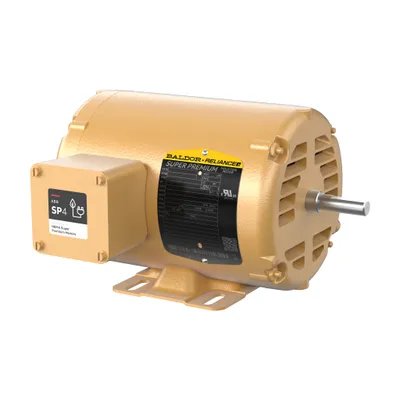

ABB SPM30009 – .5HP,3450RPM,3PH,60HZ,48,3420M,ODP
